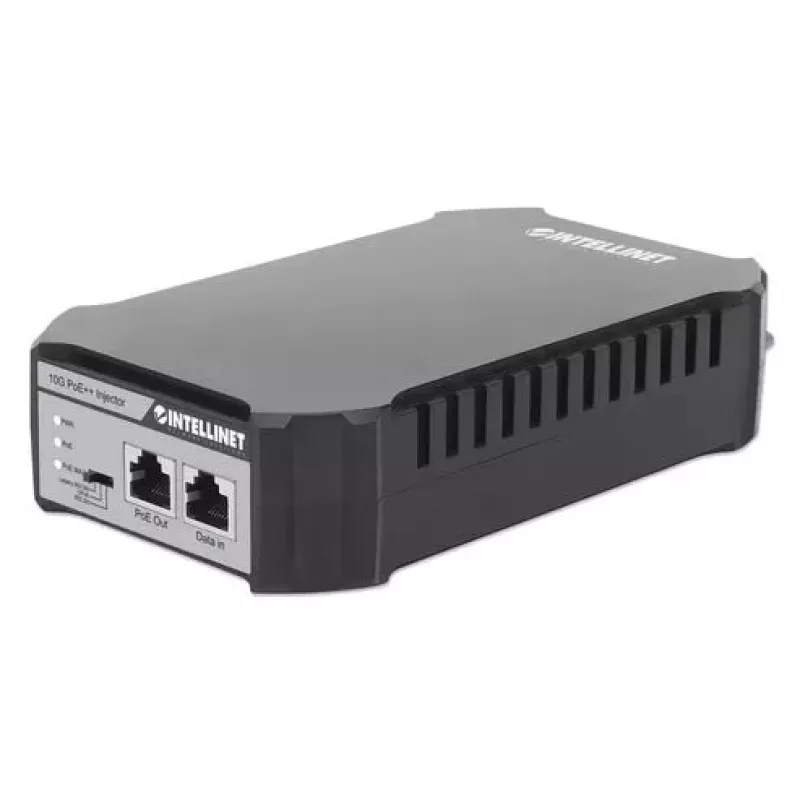

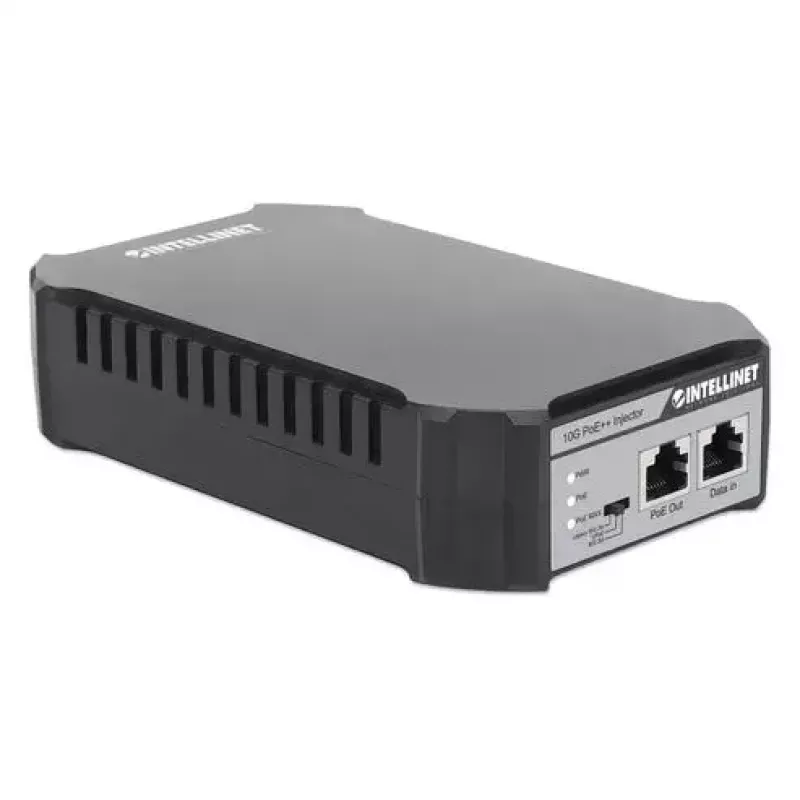

Intellinet 10G PoE++ Injector One 95 W Port, IEEE 802.3bt (4PPoE) Compliant, Metal Housing, Wall-mount Option

The Intellinet 10G PoE++ Injector One 95 W Port IEEE 802.3bt Metal Housing provides a single 95 W PoE++ output and supports 10/100/1000/2500/5000/10,000 Mbps connections. Housed in a metal enclosure with four built-in mounting points, this injector lets you power IEEE 802.3bt/at/af-compliant devices from a non‑PoE switch while carrying data over the same Ethernet cable up to 100 meters (328 ft.).

Advantages

This injector delivers up to 95 W on a single port and is backward-compatible with IEEE 802.3af and 802.3at devices via auto-sensing power negotiation. It supports full 10 Gbps data rates and reduces the need for separate AC power cabling by supplying DC power over standard network cabling. Built-in protections include short-circuit, overload and high-voltage protection, port surge protection up to 6 kV and ESD protection up to 8 kV. The metal housing and wall-mount option increase installation flexibility and durability.

Suitable for

• High-power PoE++ devices such as motorized PTZ cameras
• Wireless access points and Wi‑Fi 6/6E access equipment
• Thin clients, point-of-sale systems and digital signage
• Lighting controllers and other industrial PoE devices

Key specifications

• Standard: IEEE 802.3bt/at/af
• Data rates: 10/100/1000/2500/5000/10,000 Mbps (10 Gbps support)
• Power output: up to 95 W on a single port (4-pair PoE)
• Maximum distance: up to 100 m (328 ft.) over Ethernet cable
• Protection: short-circuit, overload, high-voltage, surge up to 6 kV, ESD up to 8 kV

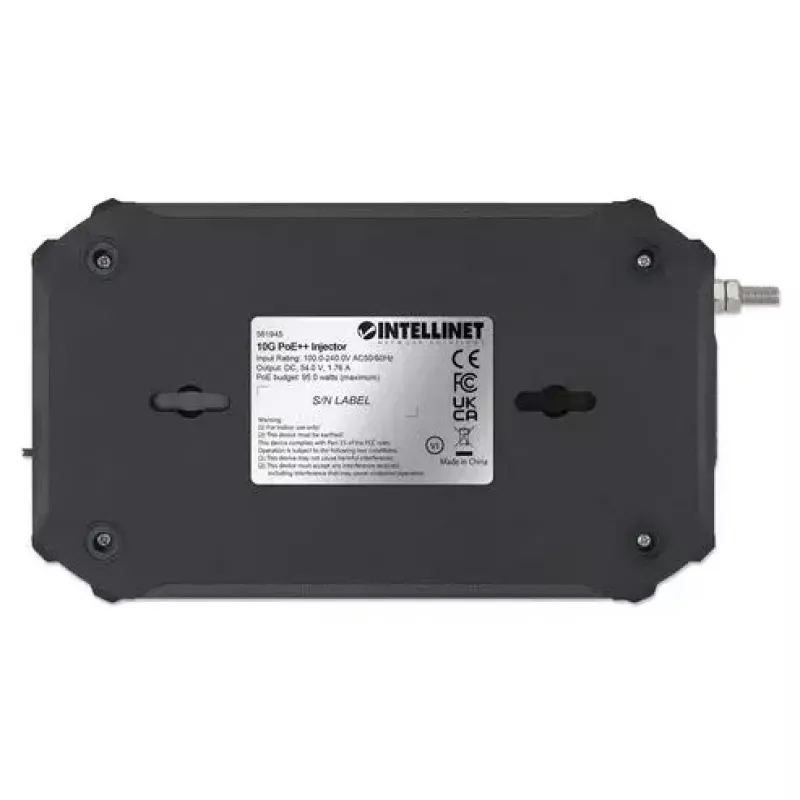

• Housing: metal with four wall-mount fixing points
• Colour: Black
• MPN / EAN: 561945 / 0766623561945

How to use

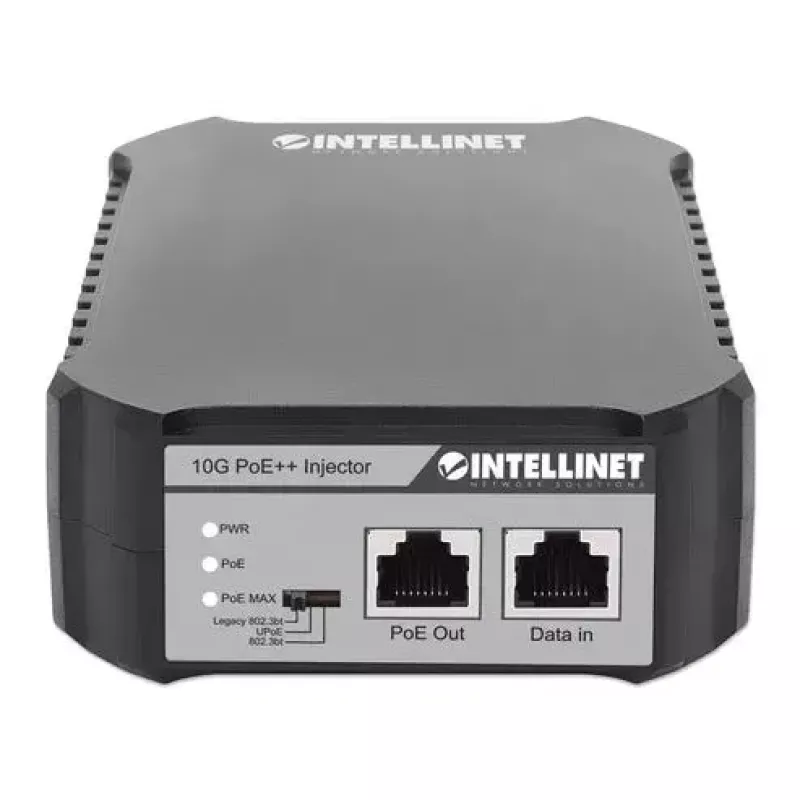

Connect the injector's data input port to a non‑PoE LAN switch or router using suitable Ethernet cabling, then connect the injector's PoE output port to the powered device (PD). Ensure the powered device is IEEE 802.3bt/at/af compliant so the injector can auto-sense and deliver the appropriate power level. Place the injector within 100 meters of the PD along the Ethernet cabling and secure the unit to a wall if desired using the built-in fixing points.

Recommendations

Use quality Ethernet cable (Cat5e or higher; Cat6/Cat6a recommended for 10 Gbps and PoE++ power delivery) and verify device compatibility with IEEE 802.3bt. For installations in electrically noisy environments, ensure proper grounding and follow local electrical codes. Do not exceed the 100 m maximum cable run between injector and powered device.
