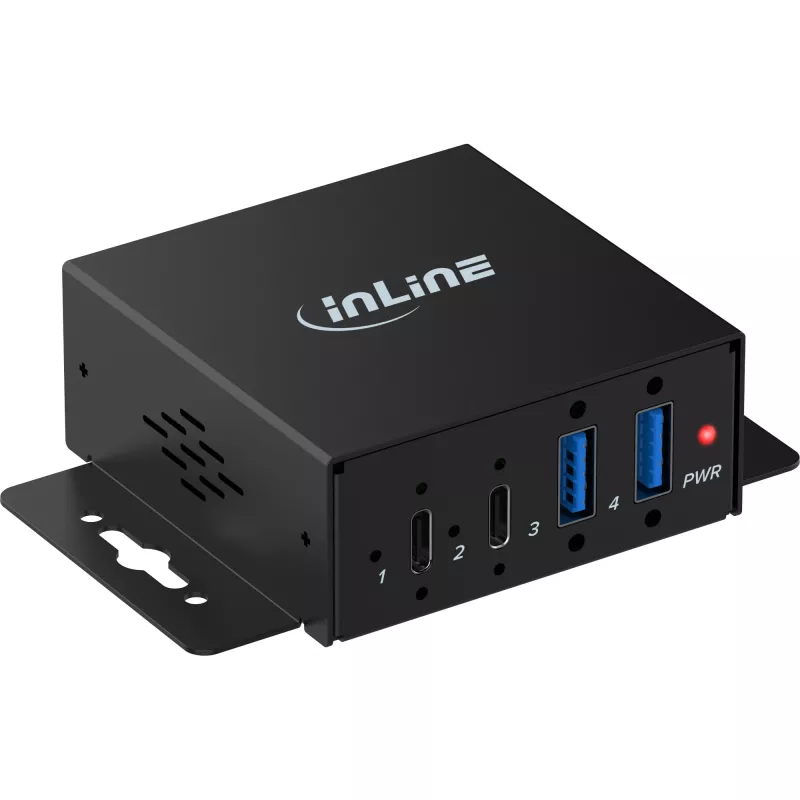

InLine® USB 3.2 Gen 2 Industrial Hub, 4-Port, 2x USB-A, 2x USB-C, Metal, DIN Rail/Wall Mount, 10Gbps

Built for demanding industrial environments, this 4-port USB 3.2 Gen 2 hub delivers full 10Gbps bandwidth across two USB-A and two USB-C ports, all housed in a rugged metal enclosure with both DIN rail and wall mounting options. Unlike typical consumer hubs, it includes per-port overcurrent, ESD, and surge protection, plus BC 1.2 charging support for reliable operation with industrial devices.

Highlights

• USB 3.2 Gen 2 (10Gbps) for high-speed data transfer
• 4 downstream ports: 2x USB Type-A, 2x USB Type-C
• Robust metal housing with DIN rail and wall mounting
• Per-port overcurrent, ESD, and surge protection
• Supports USB Battery Charging 1.2 (BC 1.2) for charging
• Bus-powered or optional 5V DC external power
• Plug & Play, no drivers required on Windows, macOS, Linux
• Includes 1m USB Type-B to Type-A host cable

In daily use

Connect the hub to your host system via the included USB Type-B to Type-A cable. The four ports allow simultaneous connection of industrial cameras, sensors, PLCs, or storage devices. The metal chassis withstands vibration and temperature ranges from 0°C to 70°C, making it suitable for factory floors or control cabinets. LED indicators show power and port activity for quick diagnostics.

Full specifications

• USB standard: USB 3.2 Gen 2 (backwards compatible with USB 3.0/2.0/1.1)
• Data transfer rate: up to 10 Gbps
• Host connector: 1x USB 3.2 Gen 2 Type-B
• Downstream ports: 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 2 Type-C
• Power supply: USB bus-powered or external 5V DC (3.5 x 1.35 mm DC jack, optional)
• Housing material: metal
• Mounting: wall mountable, DIN rail mountable
• Operating temperature: 0°C to 70°C
• OS compatibility: Windows, macOS, Linux
• Protection: overcurrent per port, ESD, surge
• Charging support: USB BC 1.2
• LED indicators: power, port activity
• Included cable: 1x USB 3.0 Type-B to Type-A, approx. 1m

Final note

For industrial USB expansion that demands speed, durability, and protection, this InLine hub delivers a professional solution that fits seamlessly into your existing infrastructure.
