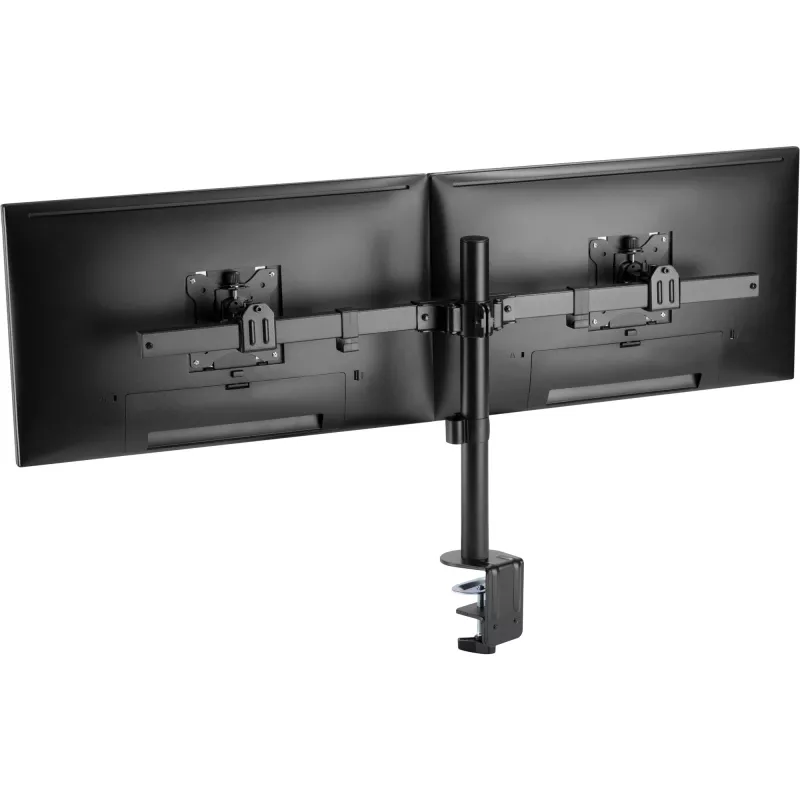

InLine Desk Mount for 2x LCD/LED Display up to 81cm 32 inch max. 9kg 23108E

Desk mount for two flat-screen monitors up to 32" (81 cm) with a maximum load of 9 kg per display. The InLine dual monitor desk holder saves desk space and enables a flexible dual-monitor setup with adjustable height and multi-axis articulation for ergonomic viewing.

Advantages

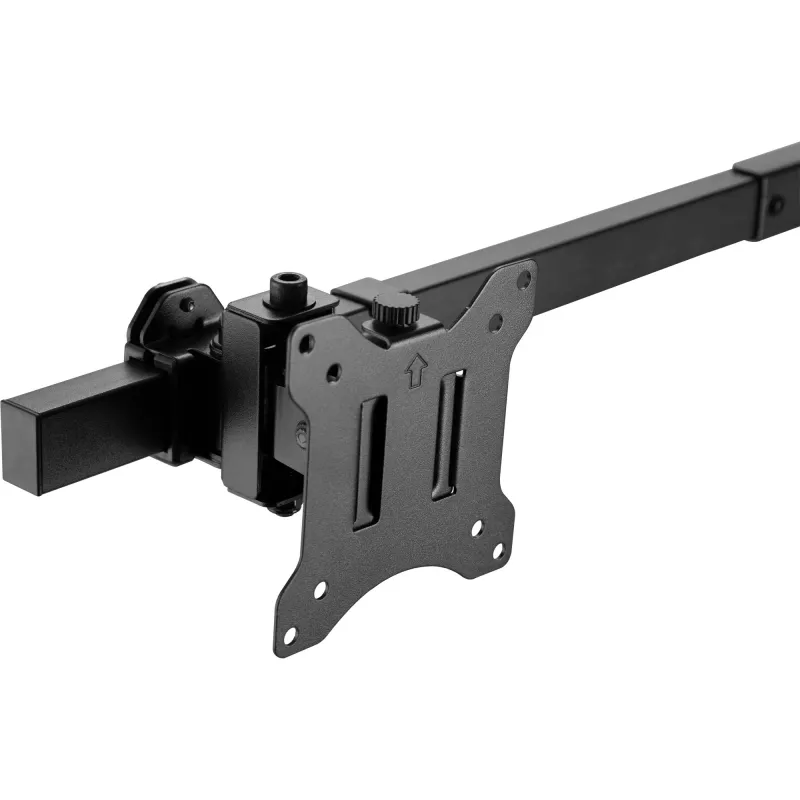

The mount supports two displays with VESA 75x75 and 100x100 mm patterns, offers tilt of +/-45° and 360° rotation for each screen, and includes a joint for flexible orientation. Height is adjustable up to 40 cm. It can be fixed to the desk using either a screw clamp (for tabletops up to approx. 85 mm thick) or a grommet/through-hole mount (for tabletops up to approx. 40 mm). Maximum load capacity is 2 x 9 kg and the package includes all necessary accessories for screen attachment.

Suitable for

• Home office and professional workstations requiring a dual-monitor setup
• Desktop setups where saving surface area is important
• Users who need adjustable monitor height and multi-axis positioning

Key specifications

• Supported display size: up to 32" (81 cm) per screen
• Maximum load: 9 kg per display (2 x 9 kg total)
• VESA compatibility: 75x75 mm and 100x100 mm
• Tilt: +/-45°; Rotation: 360°
• Height adjustment range: up to 40 cm
• Mounting options: screw clamp (edge mount) or grommet/through-hole
• Included accessories: screw set (M4, M5), 2x Allen keys, installation instructions

How to use

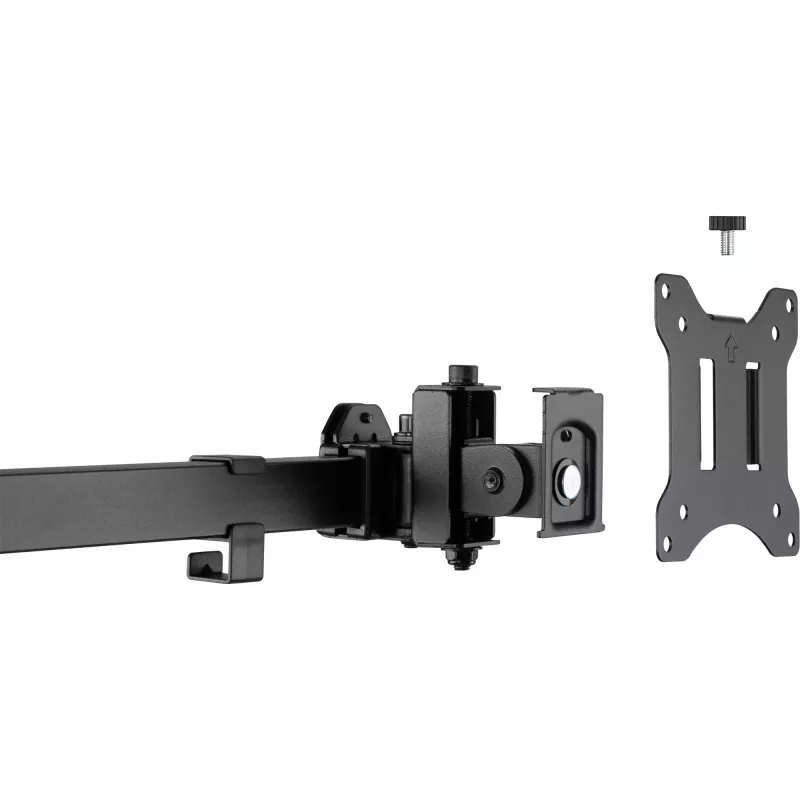

Choose the appropriate mounting method for your desk (screw clamp for edge mounting up to approx. 85 mm or grommet/through-hole for tabletops up to approx. 40 mm). Secure the desk holder according to the included installation instructions and attach each monitor using the provided M4/M5 screws and the compatible VESA pattern. Adjust height, tilt, and rotation to achieve the desired ergonomic viewing position.

Recommendations

Do not exceed the maximum load of 9 kg per monitor. Check that your monitor uses VESA 75x75 or 100x100 mm mounting holes before installation. Tighten all fasteners securely and periodically check connections for wear or loosening.
