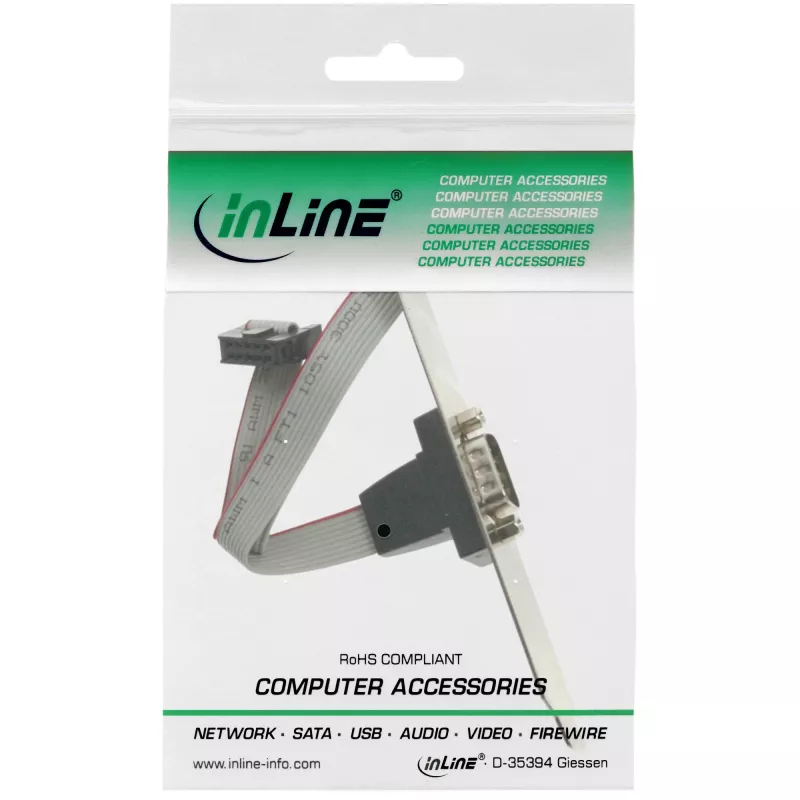

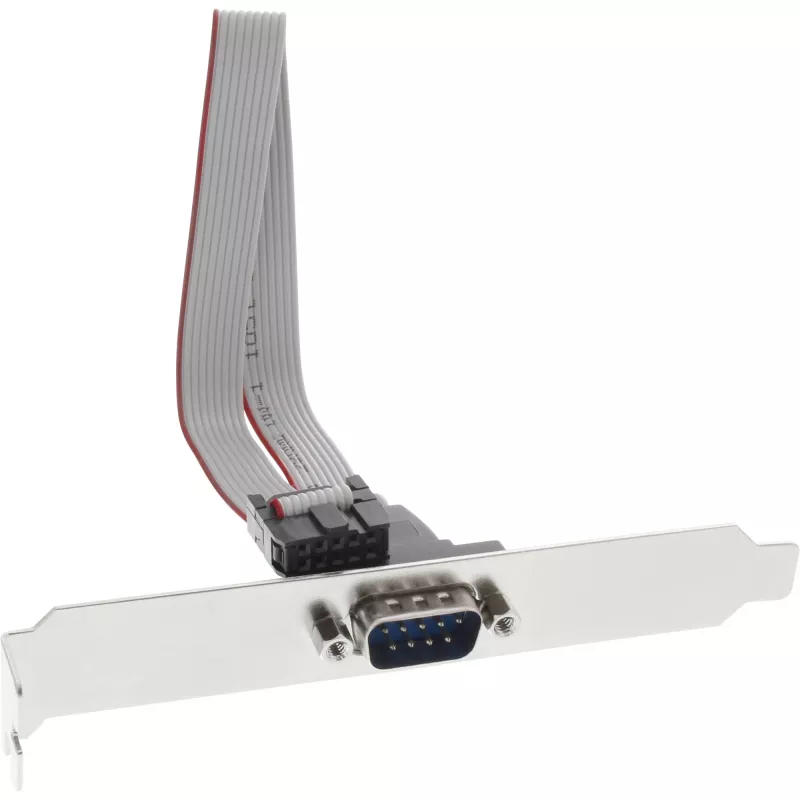

InLine Slot Bracket DB9 male to 10Pin internal female, 0.25m

The InLine Slot Bracket DB9 male to 10Pin internal female cable (0.25 m) provides a compact solution for connecting a 10‑pin internal serial header on a motherboard to an external DB9 male Sub‑D port. The cable is silver in colour, includes a Sub‑D connector and is UL certified (E336285), making it suitable for stable data connections in systems that require a panel‑mounted DB9 interface.

Advantages

This slot bracket cable offers a short, reliable connection between an internal 10‑pin header and an external DB9 male port without the need for external adapters. The Sub‑D connector provides secure mating and the compact 0.25 m length reduces cable clutter inside the chassis. UL certification (E336285) indicates compliance with safety standards.

Suitable for

Key specifications

How to use

Install the metal slot bracket into an available rear expansion slot of the computer chassis. Connect the 10‑pin internal female plug to the corresponding serial header on the motherboard, ensuring correct pin alignment. Secure the bracket in the slot so the DB9 male Sub‑D connector is accessible from the exterior panel. Verify the connection in the operating system or device settings.

Recommendations

Use the cable for short internal routing only; avoid excessive bending near the connectors. Ensure the internal header pinout matches the device’s serial signalling (e.g., RS‑232) before connecting to prevent damage.
