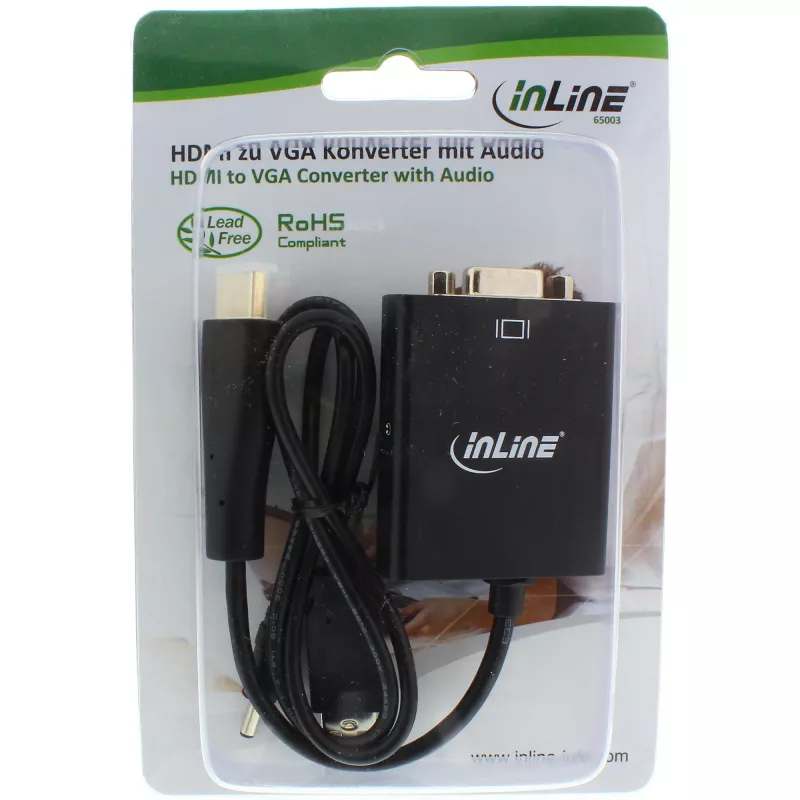

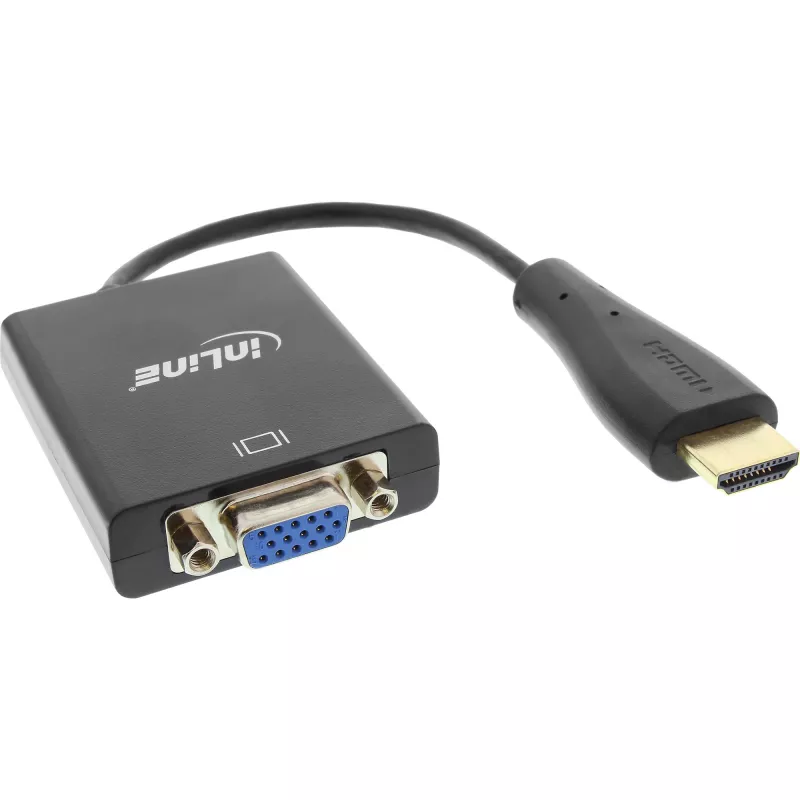

InLine Converter HDMI to VGA with Audio Input HDMI Output VGA and Stereo Audio

The InLine HDMI to VGA Converter with Audio Input converts digital HDMI signals into VGA video and analog stereo audio, allowing HDMI sources to connect to VGA displays and speakers. It supports video modes up to 1080p and common computer resolutions such as WUXGA (1920x1200) and UXGA (1600x1200). The compact black housing makes the converter suitable for travel, home and small office setups. It does not convert HDCP-encoded signals.

Advantages

The converter provides a straightforward way to get VGA video and separate analog audio from an HDMI source. It supports high-definition 1080p video and popular higher-resolution computer modes, fits into tight spaces due to its compact design, and includes an audio output for connecting external speakers or an amplifier. The product is offered in black and is compatible with a wide range of HDMI devices that do not use HDCP protection.

Suitable for

• Connecting laptops or media players with HDMI output to VGA monitors or projectors
• Adding analog stereo audio output when using VGA-only displays
• Temporary setups for presentations, classrooms, or small meeting rooms

Key specifications

• Supported video modes: up to 1080p
• Supported resolutions: WUXGA 1920x1200, UXGA 1600x1200, and lower
• Audio: analog stereo output (via 3.5 mm jack or specified audio connector)
• HDCP: not supported (does not convert HDCP-encoded signals)
• Colour: Black

How to use

Connect the HDMI source device to the converter’s HDMI input, attach a VGA cable from the converter’s VGA output to the display, and connect the analog audio output to speakers or an audio input on the display if required. Power the converter if an external power source is provided or required by the model. Select the appropriate input on the VGA display and configure the source device’s display output to match a supported resolution (for example 1920x1080 or 1920x1200).

Recommendations

Use the converter with non-HDCP content and verify the source device’s output resolution is set to a supported mode. For best results, use quality VGA and audio cables and, if the converter requires external power, use the supplied power adapter.
