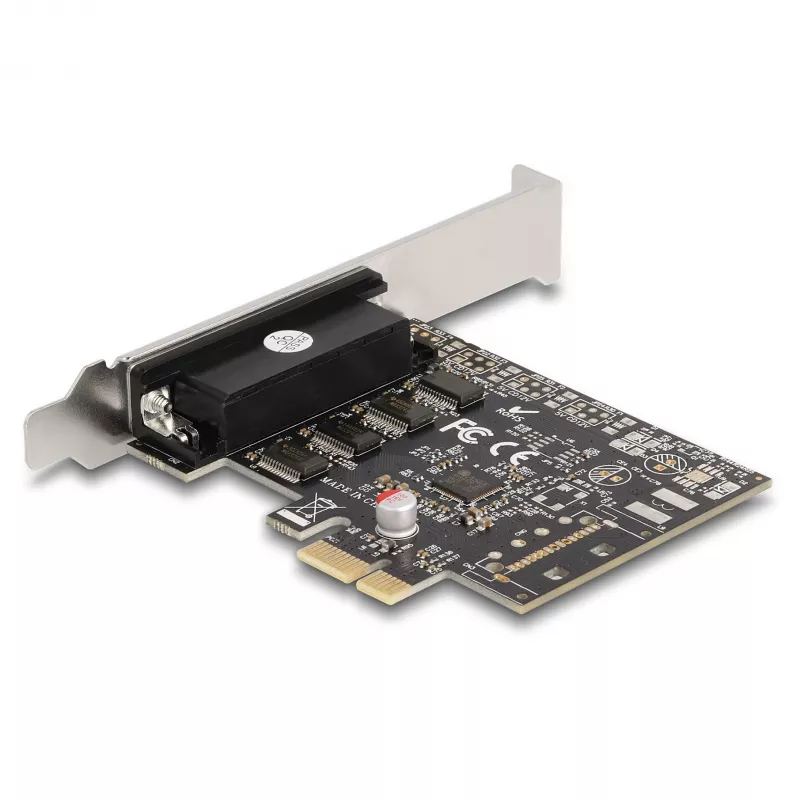

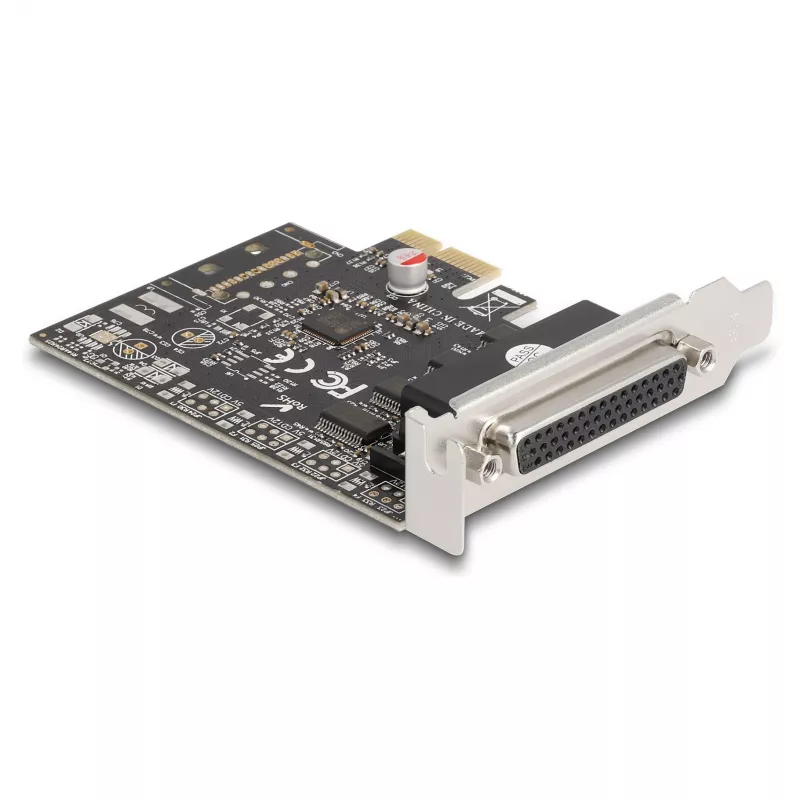

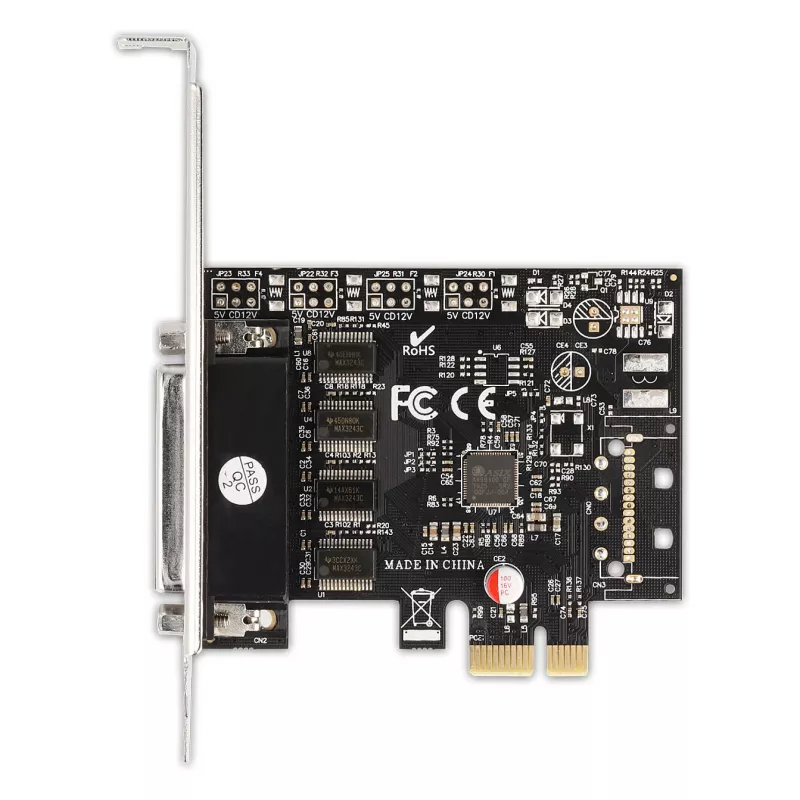

DeLOCK 66324 Internal RS-232 VGA Adapter PCIe Female Black

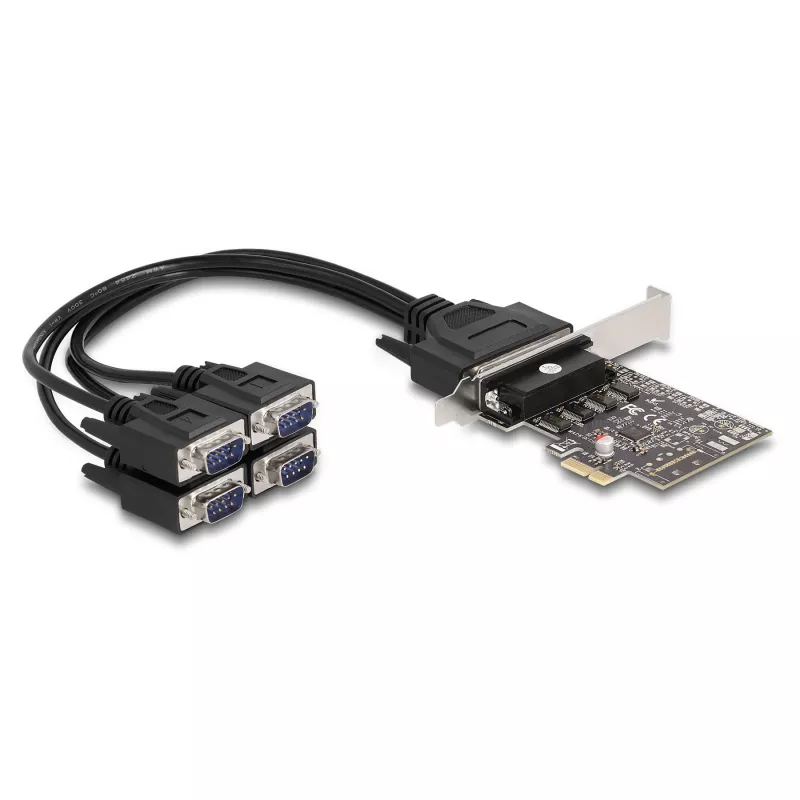

The DeLOCK 66324 is an internal PCI Express adapter that adds four external RS-232 serial ports and one VGA interface to a PC. It is designed to connect legacy and industrial devices—such as scanners, protocol converters and IoT devices—to modern systems. The card includes a fan-out cable for flexible access to the serial ports and a low profile bracket for installation in compact or rack-mounted systems.

Advantages

The adapter provides four external RS-232 ports and an integrated VGA connection on a single PCIe card, allowing multiple legacy devices to be attached simultaneously. The supplied fan-out cable improves cable routing and ease of access to the serial connectors. The low profile bracket allows installation in small form-factor and 19" industrial housings without additional parts.

Suitable for

• Connecting scanners and barcode readers
• Interfacing protocol converters and serial-controlled equipment
• Linking industrial controllers and IoT devices with RS-232 ports
• Adding a VGA output for legacy monitors or KVM systems

Key specifications

• Brand: DELOCK
• Model / MPN: 66324
• EAN: 4043619663248
• Interface to host: PCI Express (PCIe)
• External ports: 4 × RS-232 serial ports (via fan-out cable), 1 × VGA
• Max data transfer rate (serial): 0.0009216 Gbit/s

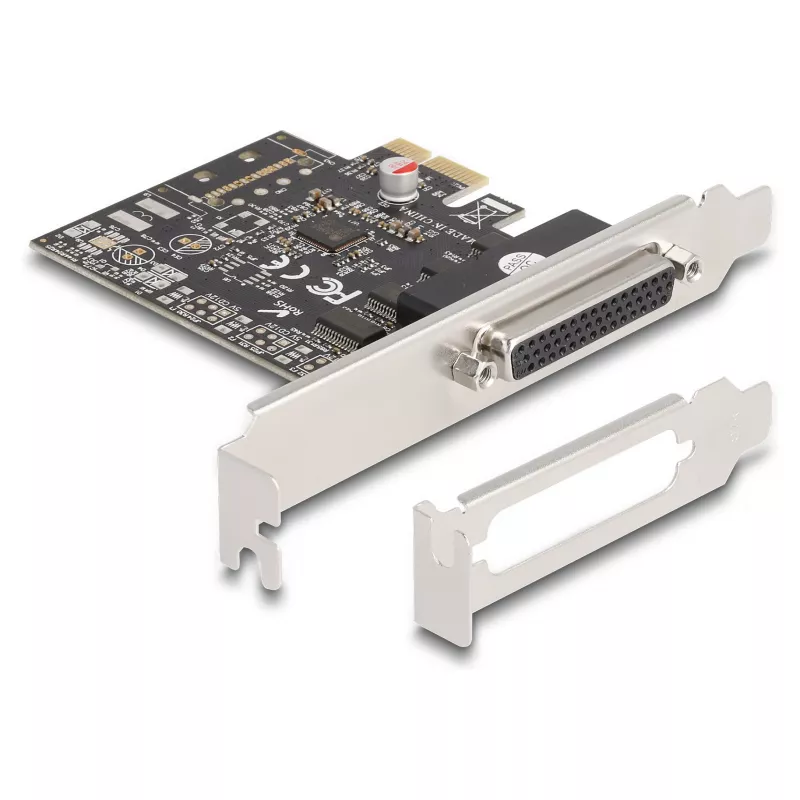

• Form factor: Low profile bracket included

How to use

Install the DeLOCK 66324 into an available PCIe slot on the motherboard, secure the card with the selected bracket (standard or low profile) and connect the fan-out cable to the card’s serial connector. Attach RS-232 devices to the fan-out cable and connect a VGA monitor to the VGA port. After hardware installation, power on the PC and install any required drivers or serial port configuration software provided by the operating system or vendor.

Recommendations

Use shielded serial cables and proper grounding in industrial environments to reduce electromagnetic interference. Verify driver compatibility with your operating system and configure baud rate, parity and data bits according to the connected device specifications.
