InLine 92505J wire connector RJ45 8P8C / Terminal block, 9-pin Black, Green

RJ45 breakout socket with clear terminal assignment:Shielded 8P8C socket directly connected to 9-pin screw terminal – for structured and solder-free network wiring.
Side terminal connection for compact integration:The side-mounted screw terminal strip allows for space-saving wiring – ideal for control cabinets or dense test environments.
Direct mounting on DIN rail:The housing is equipped with a pre-mounted DIN rail clip – for easy and standard-compliant installation in control cabinets or control distributors.
Ideal for industrial networks:For secure connection, diagnosis, or rewiring of Ethernet signals in service, test, or embedded environments.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable signal transmission – even in continuous industrial operation.

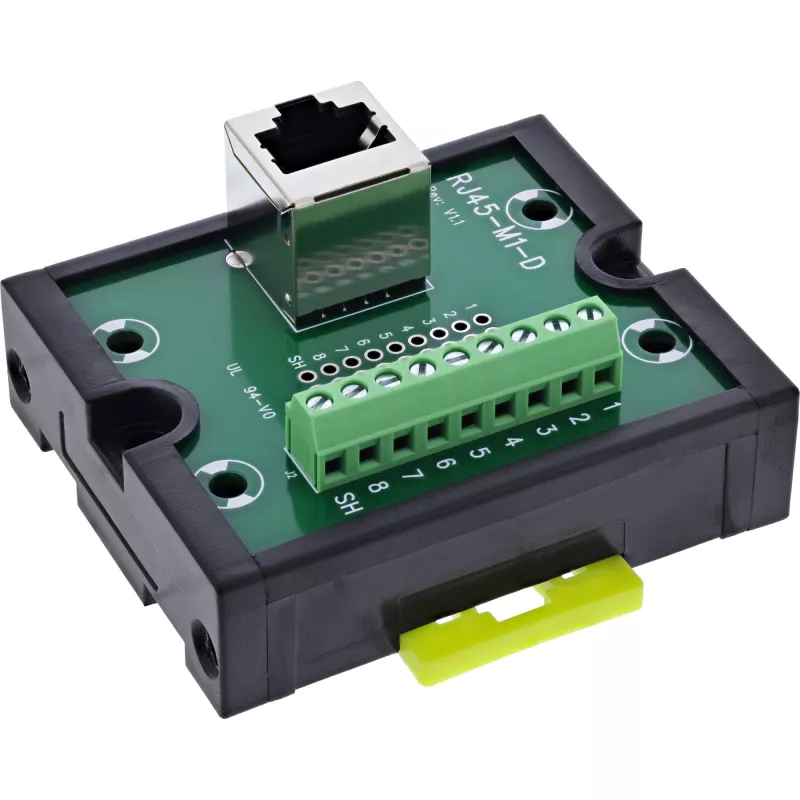

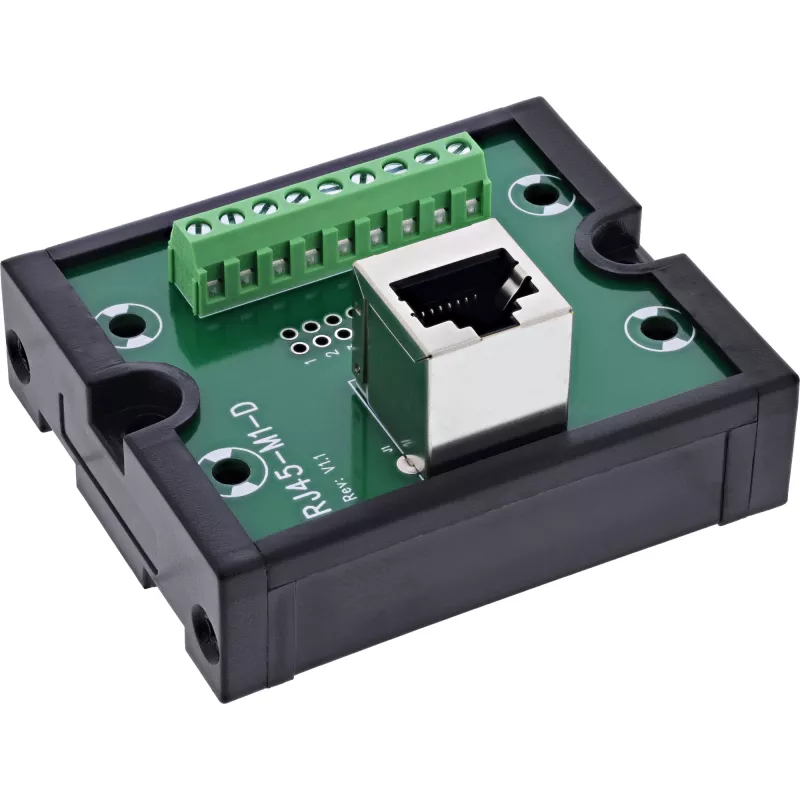

The InLine® RJ45 breakout adapter with shielded 8P8C socket and integrated 9-pin screw terminal (8 data lines + shield) enables direct and structured wiring of Ethernet signals – without any soldering. The side-accessible terminal strip is clearly labeled and supports wires in the range of 16–26 AWG.
Tool-assisted wiring is performed with a flat-head screwdriver ≤ 2.5 mm. The pre-mounted clip allows the adapter to be mounted directly on a DIN rail – ideal for standard-compliant integration in control cabinets or control distributors.
The robust design, tested electrical safety, and complete shielding make the adapter a reliable solution for industrial applications, e.g., in prototyping, network diagnostics, or embedded systems.

RJ45 interface:Shielded 8P8C socket (breakout version)

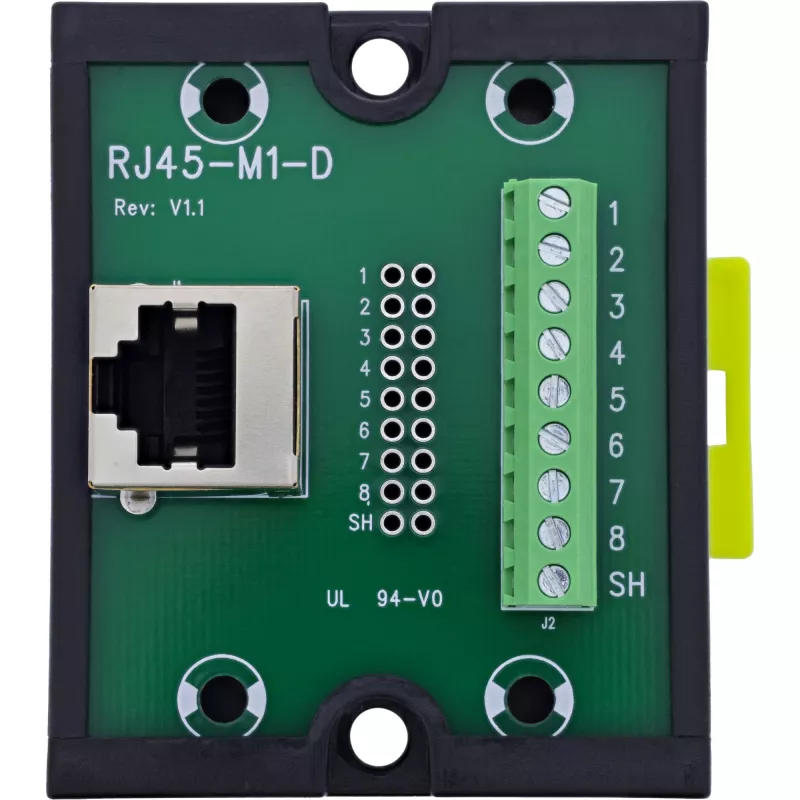

Screw terminal strip:9 terminals (8 data + shield), 5.0 mm pitch, with pressure plate
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +70 °C
Insulation layer:EVA insulation on underside
Mounting:Pre-mounted clip for DIN top-hat rail
Dimensions:approx. 59 × 65 × 33 mm (W × H × D)

InLine 92505J. Connector(s): RJ45 8P8C / Terminal block, 9-pin, Product colour: Black, Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Weight: 48 g, Width: 65 mm, Depth: 59 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³. Country of origin: Taiwan
