InLine 35396B interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Black

Robust aluminium housing for industrial use:The durable housing provides reliable protection in harsh environments and enables long-term use in professional settings.

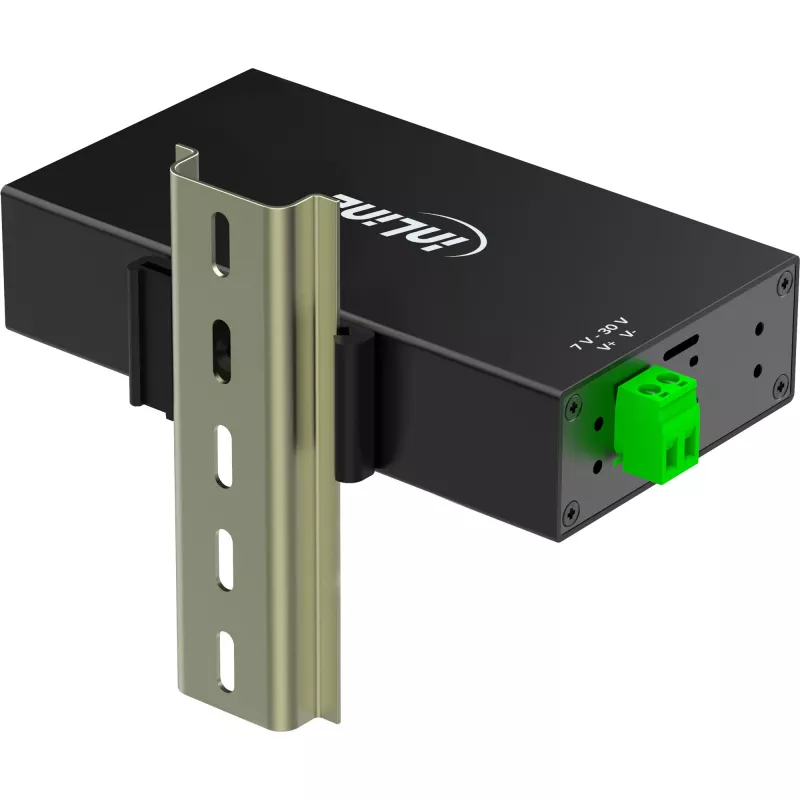

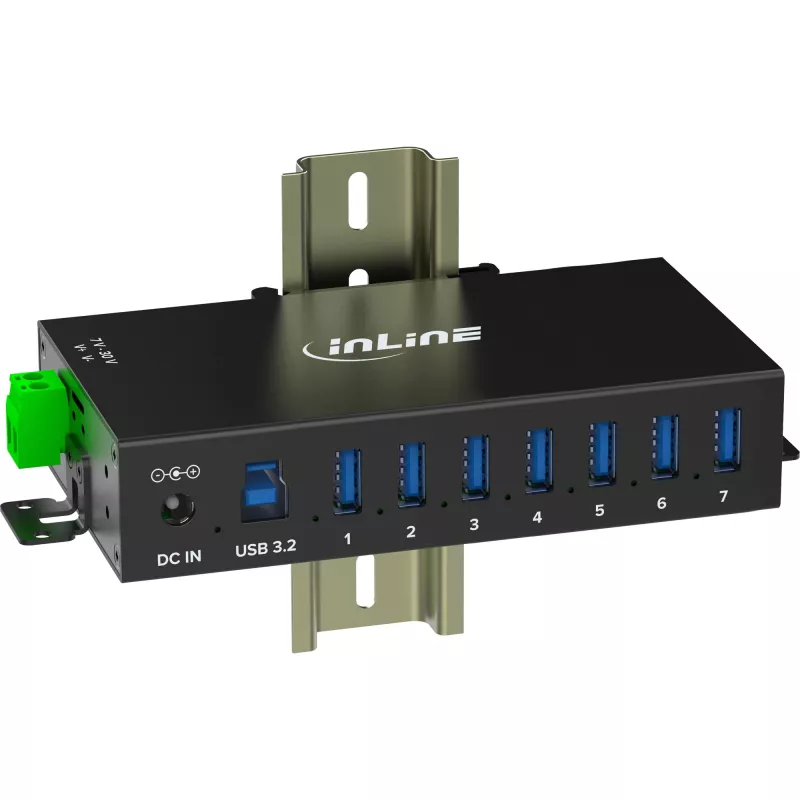

DIN rail and wall mounting:Flexible mounting options ensure secure and space-saving integration in control cabinets and technical rooms.
Powerful USB 3.2 Gen.1 ports:Seven USB-A ports provide reliable data transfer at up to 5 Gb/s – ideal for industrial applications.
Extended protection for maximum operational reliability:Integrated short-circuit, overvoltage and ESD protection ensures safe continuous operation.
Flexible power supply:Optional power supply via power adapter or terminal block – adapts perfectly to the conditions on site.

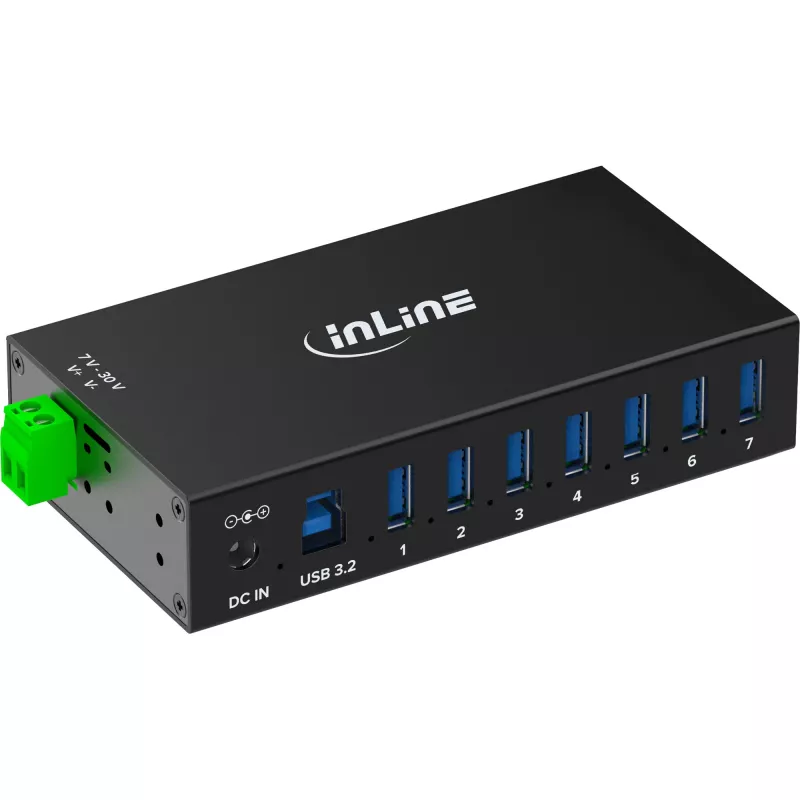

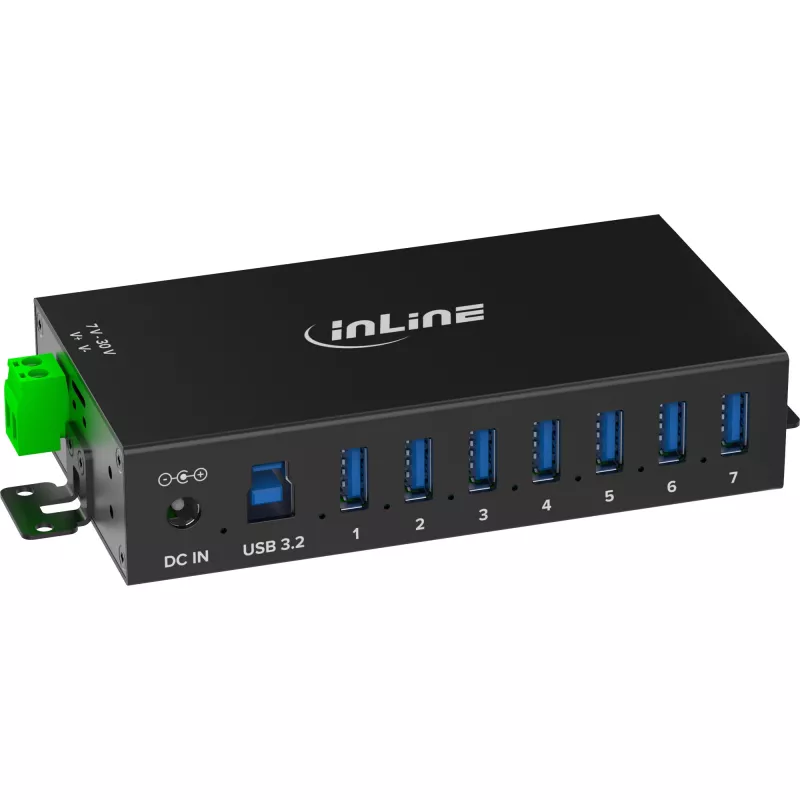

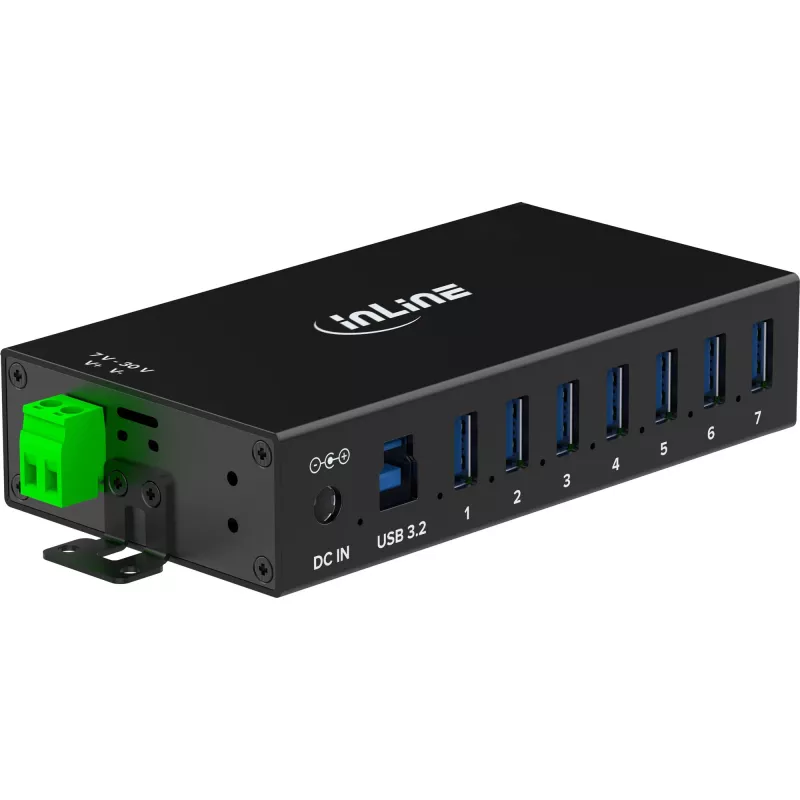

The InLine® USB 3.2 Gen.1 Industrial Hub is specially designed for professional use in demanding conditions. With seven powerful USB-A 3.2 Gen.1 ports and a maximum transfer rate of 5 Gb/s, it is a reliable connection solution for industrial IT and control systems. The high-quality aluminium housing protects against mechanical stress and enables safe operation even in extreme ambient temperatures from -40 °C to +85 °C. Thanks to flexible mounting options – DIN rail or wall mount – the hub can be easily integrated into existing infrastructures.
Integrated protection against short circuits, overvoltage and electrostatic discharge ensures additional safety during operation. Power is supplied either via a supplied external power supply unit or alternatively via a 2-pin terminal connection. This makes the hub particularly flexible in use – from control cabinets and machine controls to technical rooms in IT infrastructure.
Compatibility with Windows, MacOS and Linux, as well as easy plug & play commissioning, make the industrial hub a versatile interface solution for professional applications.

Chipset: VL817*2
Inputs:
– 1x USB-B port for connection to host computer
– 1x DC IN (5.5 x 2.5 mm)
– 1x alternative 2-pin terminal connection
Outputs:
– 7x USB-A 3.2 Gen.1 ports (5 Gb/s)
– BC1.2 charging specification: Yes (max. 5 V / 2 A per port)
Protection mechanisms:
– Short circuit, overcurrent, overvoltage
– ESD/antistatic protection: 350 W
Housing: Aluminium, black
Mounting: DIN rail or wall mount
LED indicator: Yes
Plug & Play: No drivers required
Standby power consumption: 0.07 W
Operating temperature: -40 °C to +85 °C Storage temperature: -40 °C to +125 °C Humidity: 10–85% (non-condensing) Operating systems: Windows, MacOS, Linux
Dimensions: 127.8 x 68 x 28 mm
Weight: 180 g

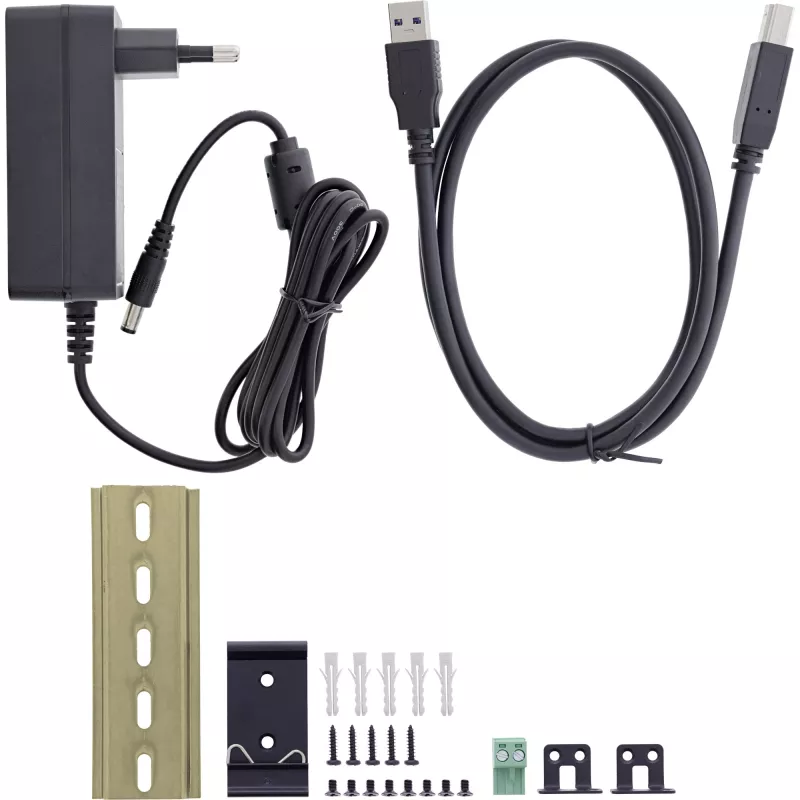

Scope of delivery:
– 1x InLine® USB 3.2 Gen.1 industrial hub, 7 ports, aluminium housing, with power supply
– 1x USB-A to USB-B cable, 1 m
– 1x mounting kit
– 1x DIN rail 10 cm & clip
– 1x terminal block
– 1x external power supply unit 12 V / 4 A
– 1x user manual in German/English
External power supply (power supply unit):
– Type: external plug-in power supply
– Input voltage: 100–240 V AC, 50/60 Hz
– Output voltage: 12.0 V DC
– Output current: max. 4.0 A
– Output power: 48.0 W
– Average operating efficiency: 88.59%
– Efficiency at low load (10%): 87.92%
– Power consumption at zero load: 0.07 W

InLine 35396B. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Aluminium. Power supply type: DC, Input voltage: 12 V, Input current: 2 A. Mac operating systems supported: MacOS. Width: 68 mm, Depth: 128 mm, Height: 28 mm

How to use

Mount the hub on a DIN rail or attach it to a wall using the supplied mounting kit. Connect the hub to the host computer using the supplied USB-A to USB-B cable. Supply power either with the included external 12 V / 4 A adapter or via the 2‑pin terminal connection according to your installation requirements. Plug USB peripherals into the seven USB-A ports; the device supports plug & play on Windows, MacOS and Linux. Monitor operation via the LED indicator and ensure the ambient conditions remain within the specified temperature and humidity ranges.

Recommendations

For reliable long-term operation, use the supplied external power supply and ensure correct polarity when using the terminal block. Avoid exposure to condensing humidity and keep ventilation around the aluminium housing free to maintain operating temperature limits.
