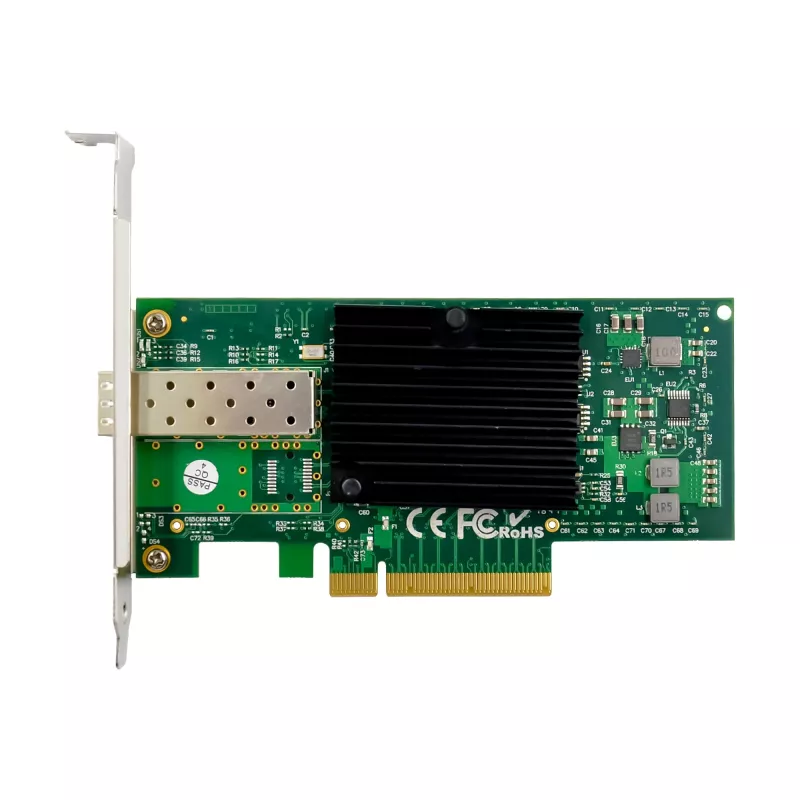

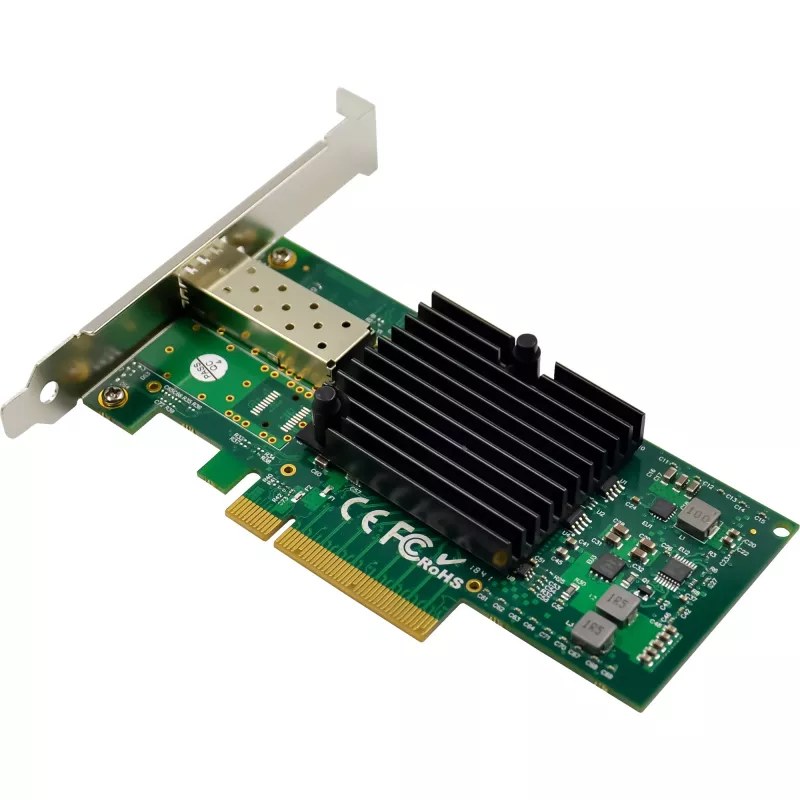

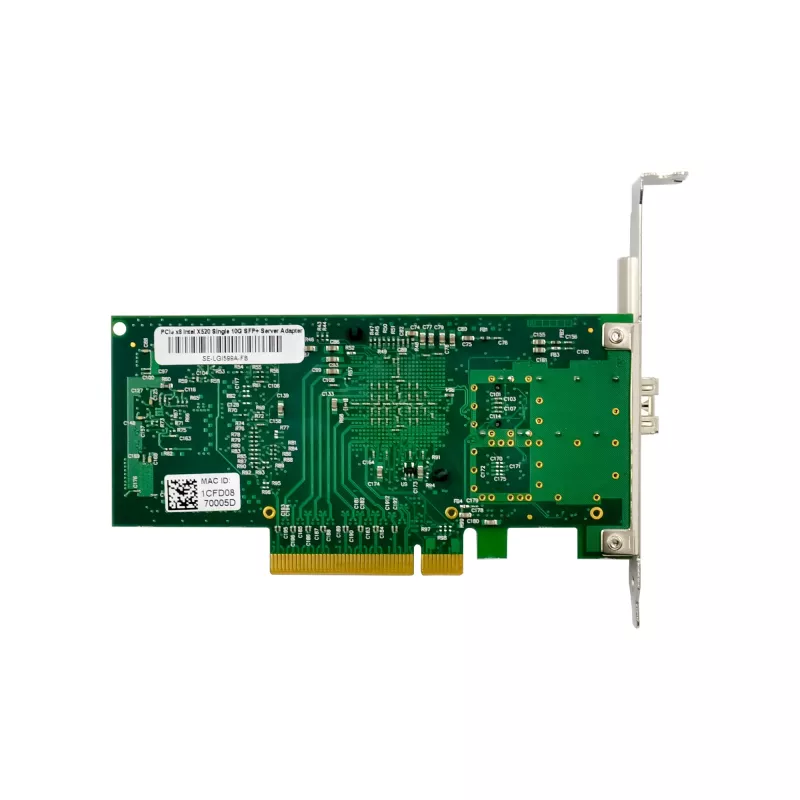

InLine 10 Gigabit network card, 1x SFP+, PCIe x8, incl. low profile bracket

10 Gb/s high-performance network card for SFP+ fiber optic modules
Intel JL82599EN chipset for stable and professional performance
PCIe x8 interface according to PCIe v2.0 standard
Supports VLAN, jumbo frames, RSS and full-duplex flow control
Compatible with Windows, server and Linux systems

The InLine® 10 Gigabit network card with SFP+ port is the perfect choice for companies that want to implement high bandwidths via fiber optics. Equipped with the Intel JL82599EN chipset, it provides a stable and efficient connection for demanding applications in the data center or in professional IT environments.
The card uses a PCIe x8 interface in accordance with PCI Express Revision 2.0 and supports a variety of modern functions such as IEEE 802.1Q VLAN tagging, full-duplex flow control, receive side scaling (RSS) as well as checksum swapping and device queuing for virtual machines. Jumbo frames up to 16KB are also supported.
Compatibility with common protocols such as IPv4 and IPv6 as well as support for current operating systems makes the card extremely versatile. It is suitable for fiber optic connections with 10GBASE-SR, -LR, -ER and much more.
Technical specifications:

Chip set: Intel JL82599EN
Interface: PCI Express x8, Revision 2.0
Port: 1x SFP+ (for 10GbE fiber optic modules)
Supported standards: IEEE 802.3ae, 802.3x, 802.1Q
Supported: 10GBASE-SR, -LR, -ER, -SW, -LW, -EW
Network protocols: IPv4, IPv6
Functions: RSS, VLAN tagging, jumbo frames (up to 16KB), checksum swapping, VM queue support
Compatible operating systems: Windows 7 or newer, Server 2008 or newer, Linux kernel ≥ 2.6

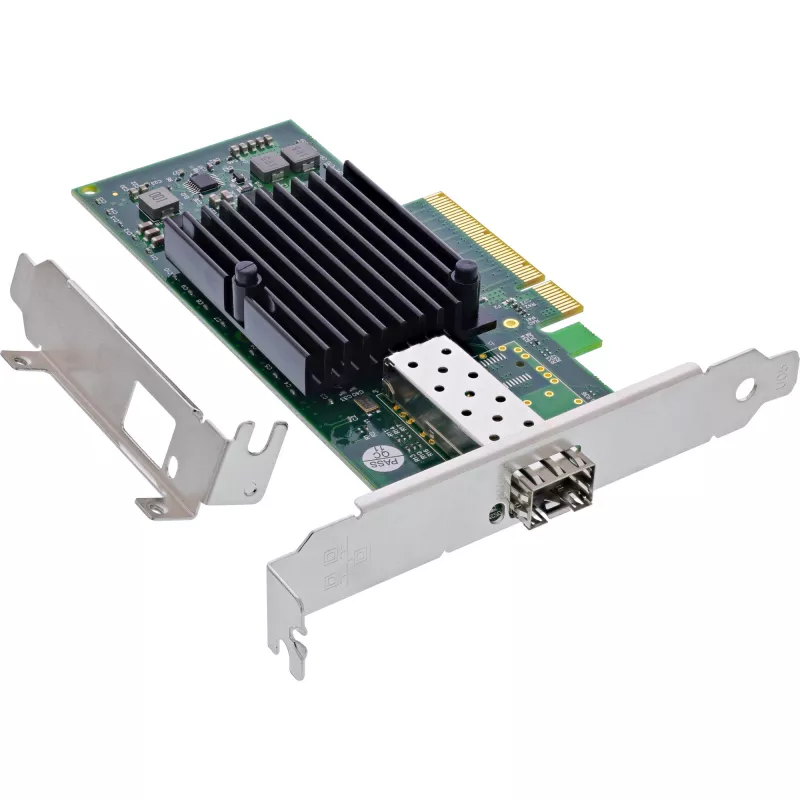

Scope of delivery: Network card incl. low-profile slot bracket
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 10 Gigabit network card, 1x SFP+, PCIe x8, incl. low profile bracket. Host interface: PCIe, Output interface: SFP+, Expansion card standard: PCIe 2.0. Cooling type: Passive, Country of origin: China. Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server.... Width: 150 mm, Depth: 1.89 mm, Height: 120 mm

How to use

Install the card into an available PCIe x8 (or larger) slot on the motherboard and secure it with the bracket. Insert a compatible SFP+ fibre transceiver into the SFP+ port, then connect the fibre optic cable. Boot the system and install the appropriate drivers for your operating system if they are not detected automatically. Configure network settings in the OS or network management software to enable 10 Gigabit operation.

Recommendations

Use certified SFP+ transceivers and single-mode or multimode fibre cables that match the transceiver specifications. Ensure the motherboard slot provides adequate lanes and that the chassis supports a low-profile card if required. Keep drivers updated for optimal stability and performance.
