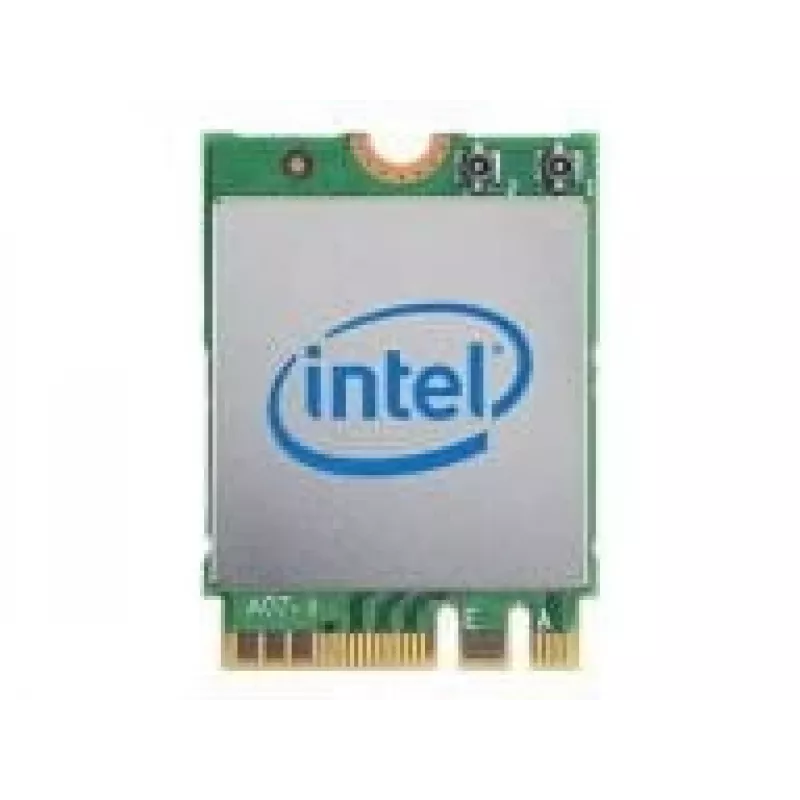

Network Card Intel 9260.NGWG Internal WLAN 1730 Mbit/s

The Intel 9260.NGWG is an internal M.2 WLAN network card that supports dual-band Wi‑Fi (2.4 GHz / 5 GHz) and Wi‑Fi 5 (802.11ac) standards with a 2x2 antenna configuration. It delivers up to 1730 Mbit/s (the adapter family can support up to 1.73 Gbps with Wave 2 features) and includes Bluetooth 5 support, providing fast wireless connectivity for laptops and compact systems.

Advantages

The Intel Wireless‑AC 9260 integrates MU‑MIMO downlink, 160 MHz channel support and Bluetooth 5 to increase throughput and improve performance in dense wireless environments. As an M.2 form factor module compatible with Intel Core platforms, it enables higher sustained download speeds, better responsiveness for streaming and gaming, and efficient power usage for longer battery life compared with older 802.11ac devices.

Suitable for

• Upgrading laptops or mini PCs to dual‑band Wi‑Fi 5
• Streaming HD video and online gaming
• High‑speed file downloads and cloud access
• Bluetooth 5 peripheral connections (headsets, mice, keyboards)

Key specifications

• Model: Intel 9260.NGWG (M.2)
• Wireless standard: IEEE 802.11ac (Wi‑Fi 5), backward compatible with 802.11a/b/g/n
• Maximum data rate: up to 1730 Mbit/s (2x2, Wave 2 features up to 1.73 Gbps)
• Frequency bands: 2.4 GHz and 5 GHz
• Antenna configuration: 2x2
• Bluetooth: Bluetooth 5
• Host interface: M.2
• Weight: 0.0029 kg

How to use

Install the Intel 9260.NGWG into a compatible M.2 slot on your laptop or desktop motherboard following the device manufacturer’s instructions. After physical installation, install or update the latest Intel wireless drivers and firmware for your operating system to enable full feature support (MU‑MIMO, 160 MHz channels and Bluetooth 5). Configure your wireless network settings through the OS network manager or vendor utility and pair Bluetooth devices via the system Bluetooth settings.

Recommendations

For best performance, use with a dual‑band router that supports 802.11ac Wave 2 features and enable 5 GHz operation and 160 MHz channels when available. Keep drivers and firmware up to date and ensure adequate antenna placement inside the chassis for optimal signal strength.
