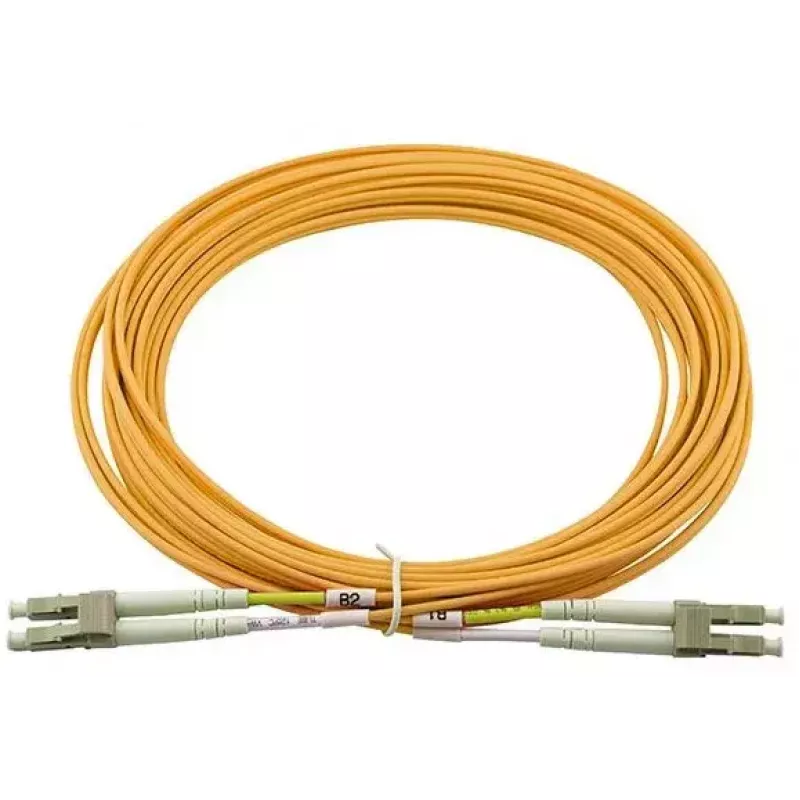

InfiniBand/fibre optic cable BlueOptics 050502K5120000050M 50 m 2x LC LC/APC Green

The BlueOptics 050502K5120000050M is a 50 m InfiniBand/fibre optic patch cable with LC to LC/APC connectors and OM3 multimode fiber. Designed for high-speed, full-duplex data transmission, this cable has a 50 µm core diameter and a laser-optimized OM3 fiber that supports reliable short- to medium-distance links between transceivers, patch panels and active network equipment. The cable features a flame-retardant LSZH jacket for reduced smoke and no halogen release in case of fire and is manufactured to industry standards to ensure consistent performance and durability.

Advantages

This BlueOptics OM3 LC–LC patch cable provides low attenuation and high return loss values suitable for demanding optical links. Connectors are assembled with zirconia ceramic ferrules and branded fiber and connector components to ensure stable, low-loss mating and a long service life. Each cable is tested with interferometry and OTDR and delivered with measurement results for input loss and return loss. The LSZH sheathing minimizes hazardous emissions and meets common fire safety norms.

Suitable for

• Connecting fiber transceivers in InfiniBand and Ethernet environments
• Patching between optical patch panels and switches
• Short- to medium-reach multimode links inside data centers and server rooms
• Laboratory and test setups requiring measured input loss and return loss documentation

Key specifications

• Length: 50 m
• Fiber type: OM3 multimode, laser-optimized
• Core diameter: 50 µm

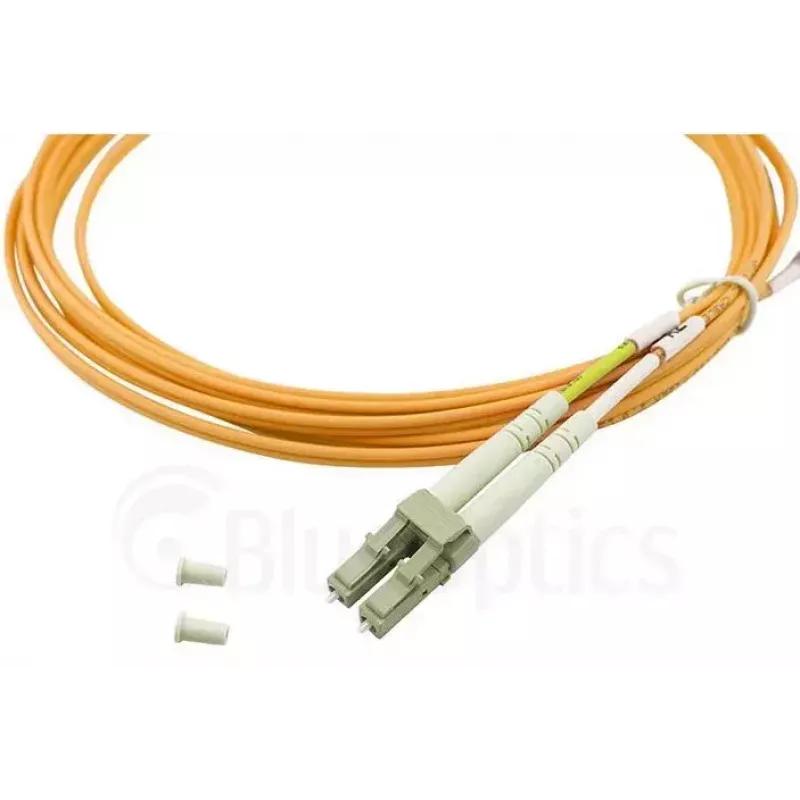

• Connector type: LC to LC/APC (dual-ended)
• Duplex mode: full duplex
• Jacket material: LSZH (low smoke zero halogen), flame retardant

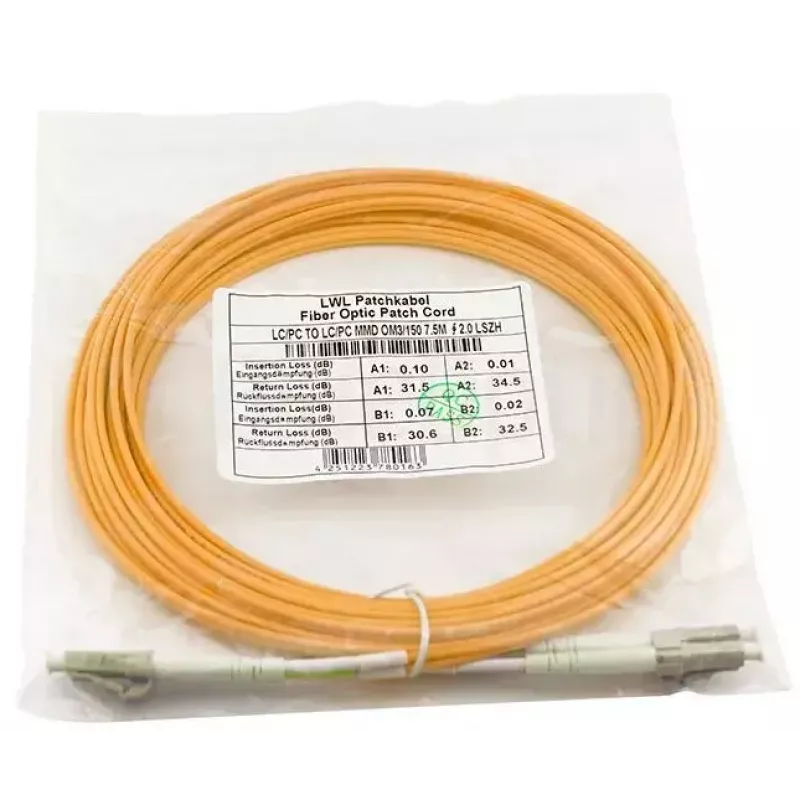

• Tested by: interferometer and OTDR with measurement protocol for input and return loss
• Durability: zirconia ceramic ferrule rated for up to 1500 mating cycles

How to use

Route the cable avoiding sharp bends and tight strain points; maintain the manufacturer’s minimum bend radius to preserve optical performance. Clean connector endfaces before insertion using suitable fiber cleaning tools to prevent contamination and increased loss. Insert the LC connectors into compatible transceivers or patch panel ports until the latch engages and verify link status on connected equipment. When removing the cable, release the LC latch gently and store the cable coiled without kinks.

Recommendations

For best performance, keep connector endfaces protected with dust caps until installation, perform cleaning and inspection before each mating, and install the cable in conduit or cable management systems in high-traffic areas. Use OM3 multimode for short- to medium-reach high-speed links and choose OM4 or singlemode variants for longer-distance or higher-bandwidth requirements.
