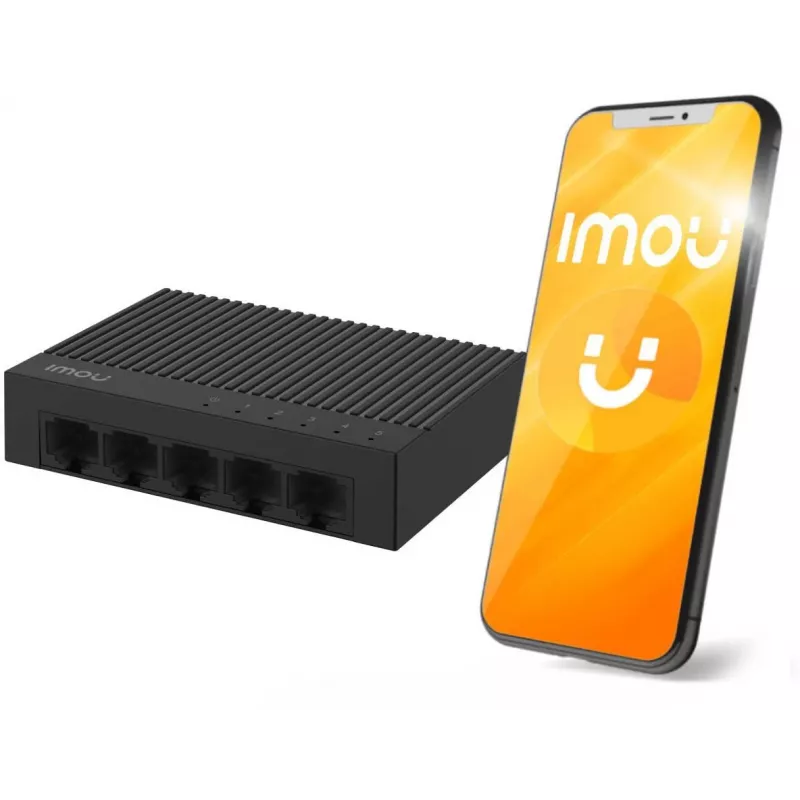

IMOU SF105C 5-Port 10/100 Mbps Desktop Switch, Plastic Housing

The IMOU SF105C redefines compact networking with a fanless, plastic chassis that stays completely silent while expanding a single router port into five Fast Ethernet connections. Unlike metal switches that can be noisy and heavy, this desktop unit is featherlight and unobtrusive, perfect for quiet home offices, retail counters, or small workgroups where space and peace matter. With auto-negotiating RJ45 ports and auto MDI/MDIX, it eliminates cable confusion and configuration hassles—just plug in, power up, and enjoy reliable 100 Mbps connectivity for PCs, printers, IP cameras, or smart TVs.

Highlights

• Five 10/100 Mbps RJ45 ports with auto MDI/MDIX—no crossover cables needed
• Fanless, plastic housing for silent operation and lightweight desktop placement
• Plug-and-play unmanaged design: no software, no setup, no downtime
• Store-and-forward switching with 1K MAC address table and 1 Gbps switching capacity
• External 5V DC adapter with low power consumption under 1 watt
• LED indicators for power and per-port link/activity at a glance

In daily use

The SF105C proves its worth the moment you connect it. Its five ports handle mixed 10/100 Mbps devices gracefully, automatically adjusting speed and duplex for each link. The auto MDI/MDIX feature eliminates cable confusion—straight-through or crossover, it simply works. Because it is unmanaged, there is no web interface to learn or firmware to update; it is a true set-and-forget device. The fanless design means zero acoustic noise, making it ideal for quiet environments like bedrooms, libraries, or small offices. The compact plastic body is easy to place on a desk or shelf, and the external power adapter keeps heat away from the unit, ensuring long-term reliability. With a store-and-forward architecture, it checks each frame for errors before forwarding, preventing corrupted data from propagating across your network. The 1K MAC address table is ample for small networks, and the 1 Gbps switching capacity ensures full wire-speed performance on all ports simultaneously. The LED indicators provide instant visual confirmation of power status and link activity, simplifying troubleshooting. Whether you are connecting a few computers to a shared printer or extending your network to a media center, the SF105C delivers consistent, worry-free performance.

Full specifications

• Number of Ports: 5
• Port Type: RJ45
• Ethernet Standard: IEEE 802.3/3u/3x (10/100Mbps Fast Ethernet)
• Switching Capacity: 1 Gbps
• Forwarding Rate: 0.744 Mpps
• MAC Address Table Size: 1K
• Jumbo Frame Support: 2K Bytes
• Management Type: Unmanaged
• Housing Material: Plastic
• Power Supply: External DC 5V/0.6A Adapter
• Max Power Consumption: <1W
• LED Indicators: Power, Link/Act
• Installation: Desktop
• Fanless Design: Yes
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% RH (non-condensing)
• Auto MDI/MDIX: Yes
• Store-and-Forward: Yes
• Certifications: CE, FCC, RoHS

Final note

The IMOU SF105C is the smart choice for anyone needing a simple, silent, and reliable network expansion. Its plug-and-play nature and energy-efficient operation make it a hassle-free addition to any small network setup.
