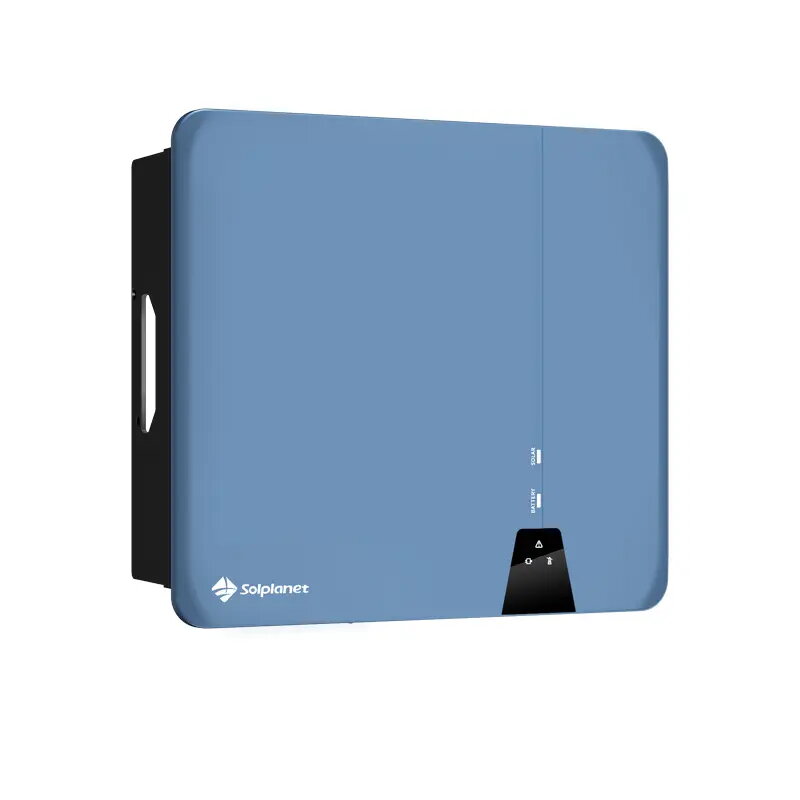

Hybrid inverter Solplanet ASW3680H-S2 3.68 kW with 2 MPPT

The Solplanet ASW3680H-S2 3.68 kW hybrid inverter is a compact power conversion device designed for residential and small commercial photovoltaic systems. It provides 3.68 kW AC output and integrates two independent MPPT trackers to optimise energy harvest from dual string inputs. The inverter supports grid-tied operation, battery integration for energy storage, and intelligent management of solar generation to increase self-consumption and enable backup power when configured.

Advantages

The hybrid architecture combines solar inverter and battery charger/discharger functions in a single unit, reducing system complexity and installation footprint. Dual MPPT inputs allow better performance under partial shading or when arrays are installed on different orientations. The unit supports coordinated grid interaction and battery operation to prioritise self-consumption and provide standby power during outages when paired with a compatible battery. Compact size and straightforward connectivity simplify installation and commissioning.

Suitable for

• Residential rooftop solar systems with one or two string inputs
• Small commercial sites seeking moderate PV capacity and energy storage
• Installations that require battery backup and grid-tied operation
• Systems with arrays on different roof orientations or subject to partial shading

Key specifications

• Nominal AC output power: 3.68 kW
• Dual MPPT inputs for independent string tracking
• Hybrid functionality: PV generation, battery charge/discharge and grid interaction
• Suitable for residential and small commercial applications
• Supports backup operation when paired with compatible battery storage
• Compact footprint intended for wall-mount installation

How to use

Install the inverter according to local electrical codes and the manufacturer's installation manual, mounting it on a suitable wall or surface with adequate ventilation. Connect PV string inputs to the two MPPT terminals, ensuring correct string configuration and polarity. Integrate a compatible battery to the designated battery terminals or communication interface as specified by the system design. Configure grid connection parameters, operating modes and battery charging priorities through the inverter's configuration interface or monitoring platform. After commissioning, monitor performance and status via the provided communication options to verify proper operation.

Recommendations

For best results, match string voltages and array sizing to the inverter's input ranges, use a compatible battery recommended for hybrid operation, and follow local regulations for grid connection and safety. Consider professional installation to ensure correct configuration of MPPT inputs, battery settings and backup functions.
