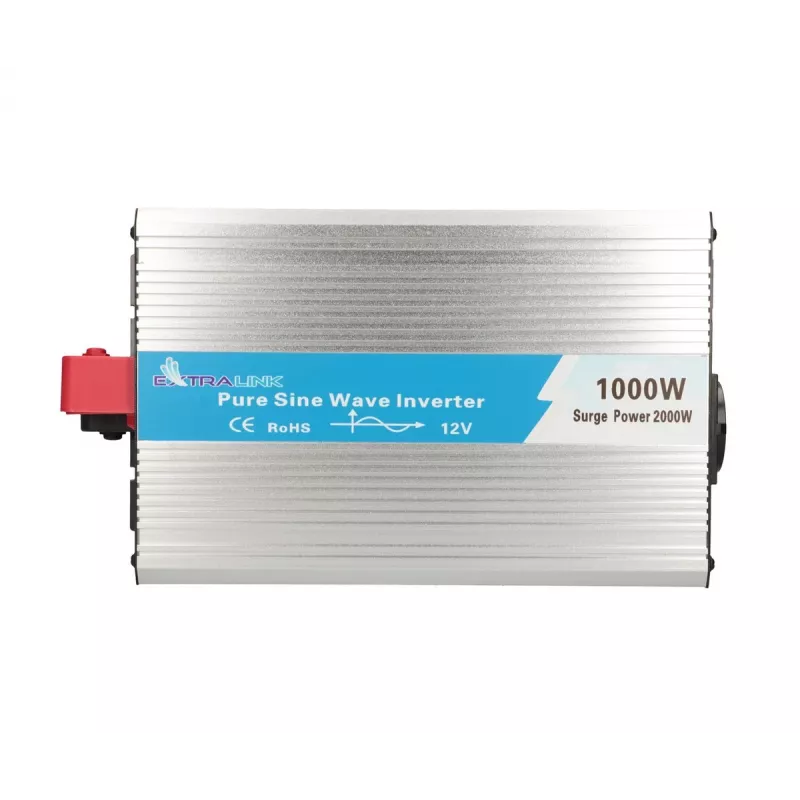

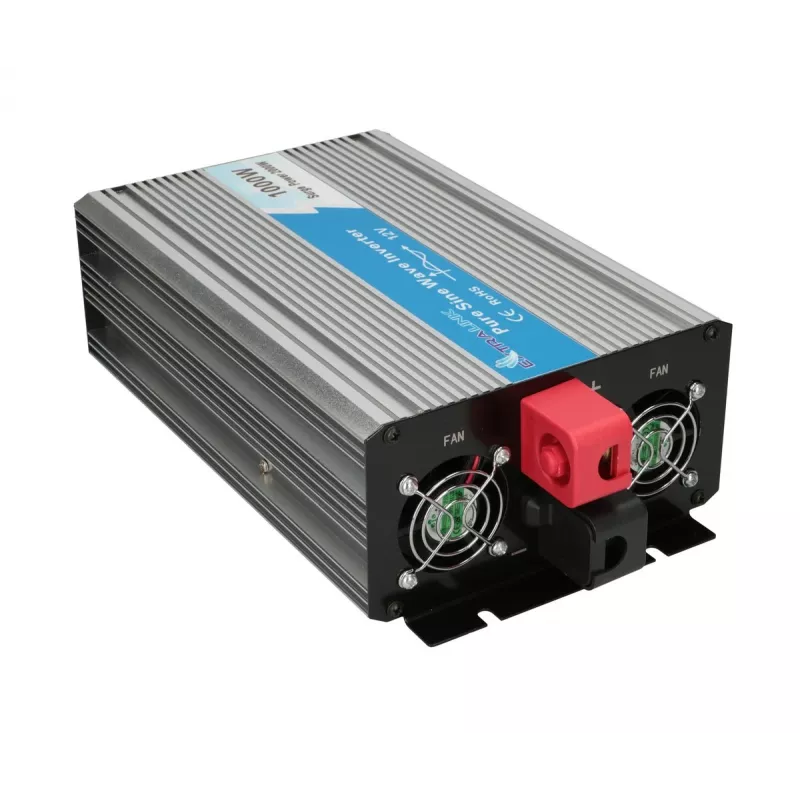

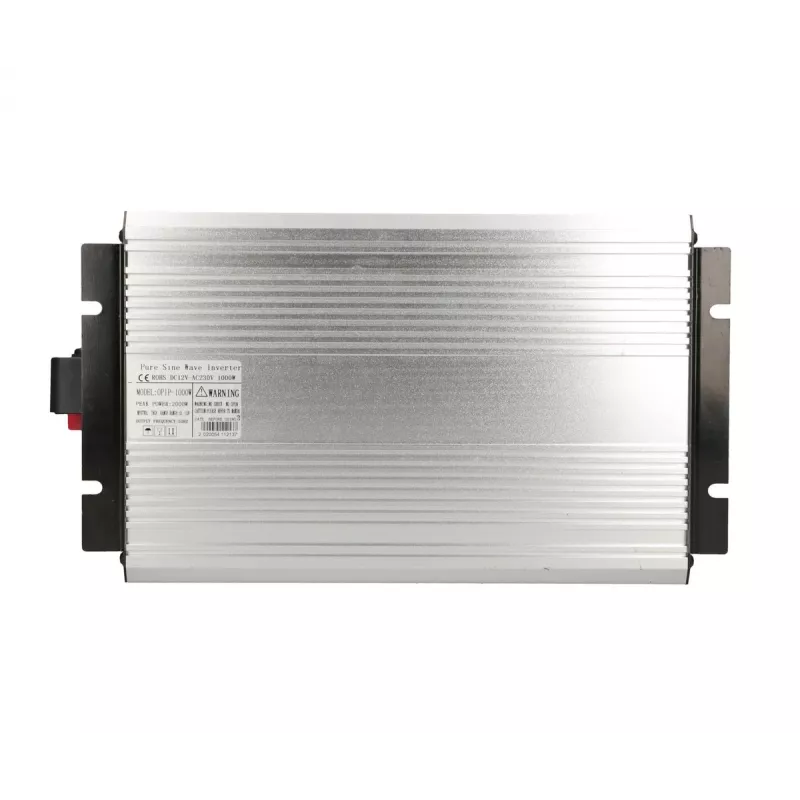

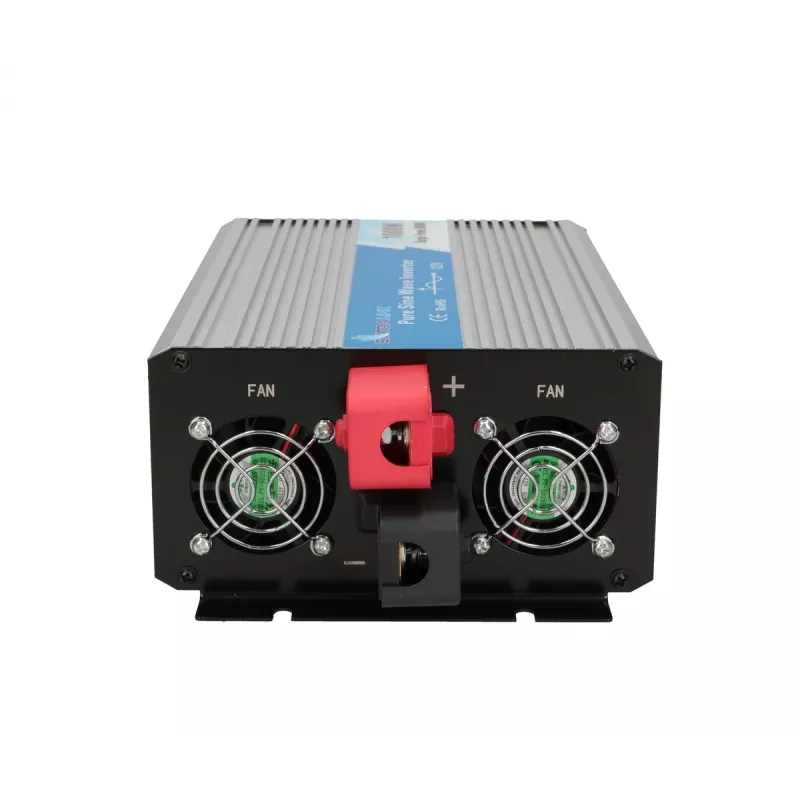

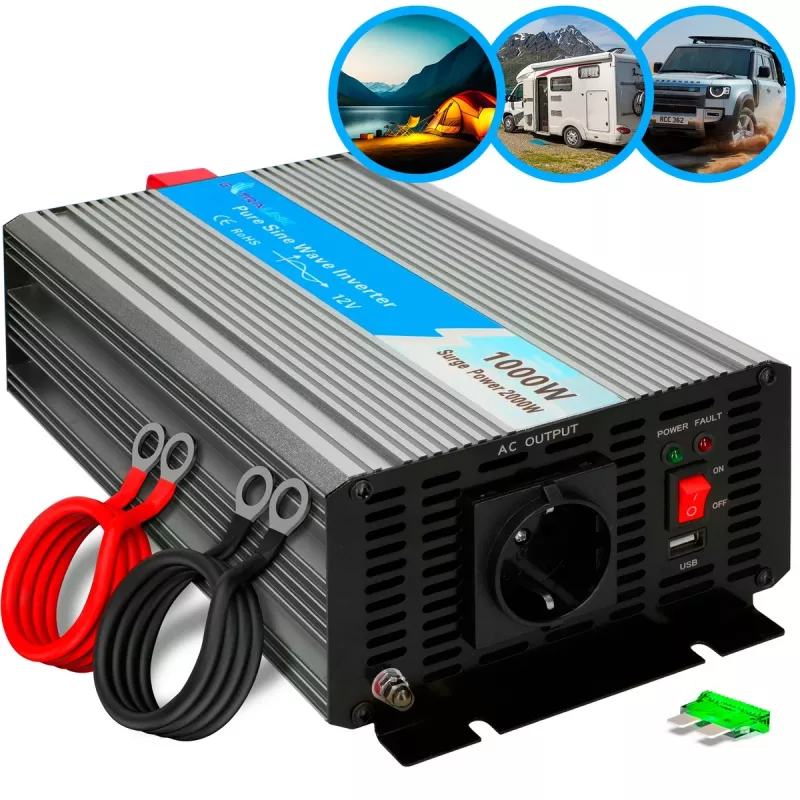

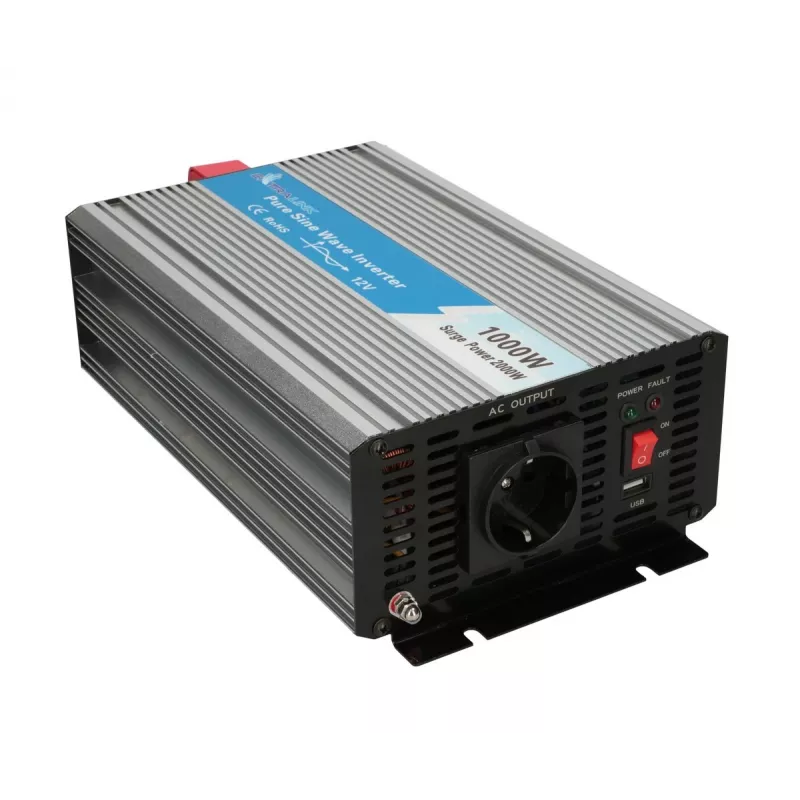

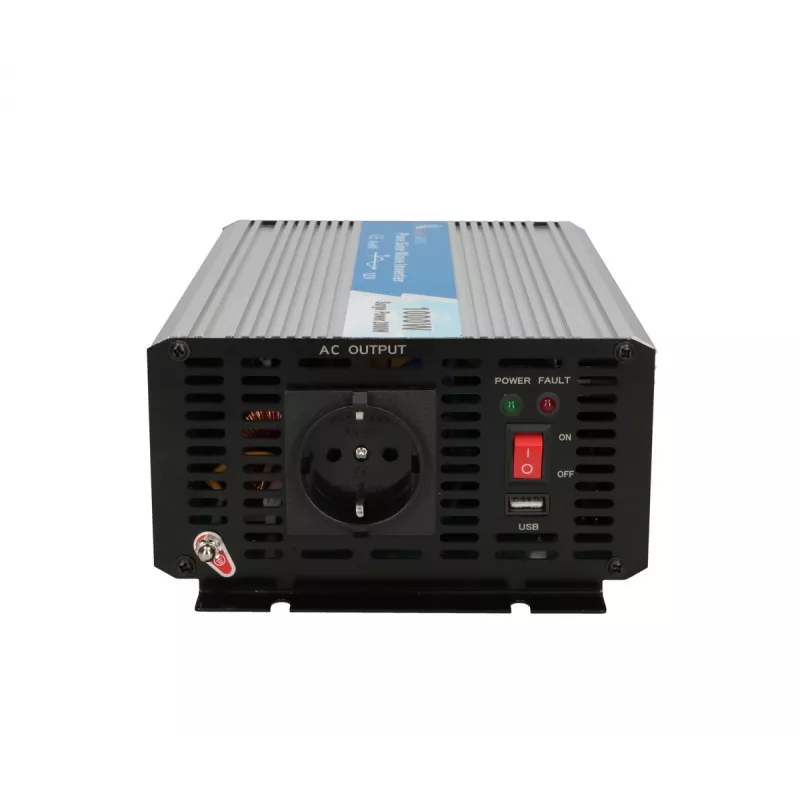

Voltage converter Extralink OPIP-1000W 12V 230V 1000W pure sine

The Extralink OPIP-1000W voltage converter is a 12V to 230V pure sine wave inverter designed for automotive and off-grid use. It converts direct current (DC) from a battery into 230V alternating current (AC) compatible with standard household appliances and sensitive electronics. The unit is housed in aluminum for durability and features active cooling to manage heat during operation. The inverter provides continuous 1000W output and up to 2000W peak power, and includes a USB port for charging USB devices.

Advantages

A pure sine wave output closely matches mains electricity, making the inverter suitable for a wider range of equipment including devices with electric motors and sensitive electronics. Compared with modified or square wave inverters, this model offers higher efficiency and cleaner power delivery. The aluminum housing improves durability and heat dissipation, while active cooling maintains stable operation under load. The built-in USB port adds convenience for powering phones, tablets and other USB-powered devices.

Suitable for

• Powering household appliances in an RV, caravan or boat
• Backup power for home equipment during outages
• Off-grid systems at allotments or remote locations
• Running sensitive electronics such as laptops, TVs and audio equipment

Key specifications

• Model: Extralink OPIP-1000W (MPN EX.18143, EAN 5903148918143)
• Input voltage: 12 V DC
• Output voltage: 230 V AC (pure sine wave)
• Continuous power: 1000 W
• Peak power: 2000 W
• Housing: aluminum
• Cooling: active cooling
• Additional outputs: USB port for charging

How to use

Connect the inverter to a charged 12 V battery following the manufacturer’s safety instructions and observing correct polarity. Place the inverter on a stable, well-ventilated surface to allow airflow for the active cooling system. Plug your 230 V appliances into the AC outlet(s) and USB devices into the USB port. Do not exceed the rated continuous load of 1000 W; brief peaks up to 2000 W are acceptable for motor starts or momentary surges. Monitor the inverter and battery state during use and disconnect when not required.

Recommendations

Use appropriate battery capacity and cabling to avoid voltage drop; ensure fuses or circuit breakers are installed as required. For sensitive medical or precision equipment, verify compatibility with a pure sine wave inverter and consult device manuals regarding power requirements.
