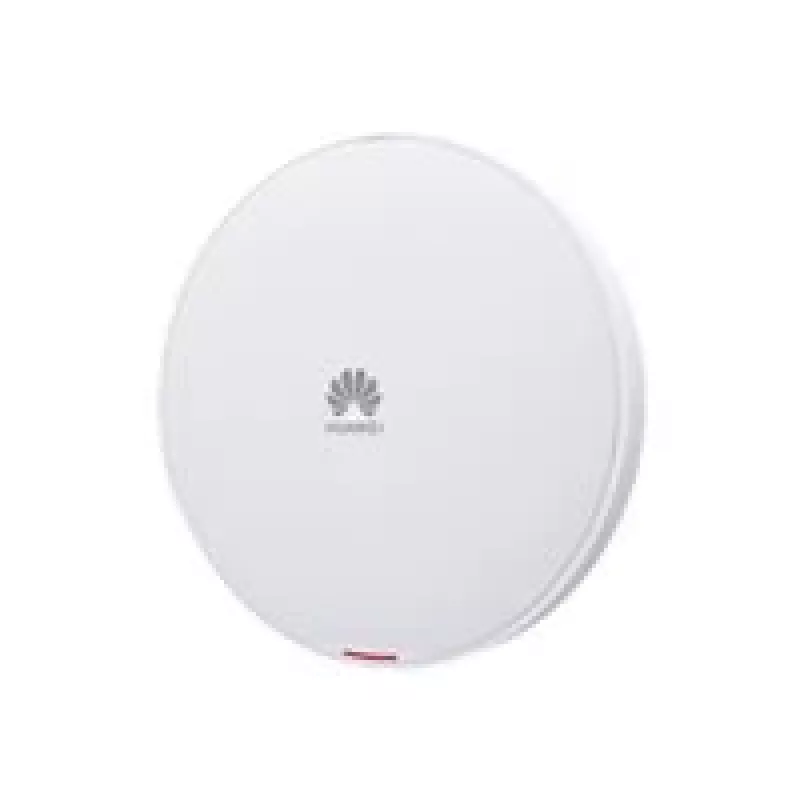

Huawei AirEngine 5761-11 802.11ax Indoor Dual-Band Smart Antenna Access Point

The Huawei AirEngine 5761-11 is a high-performance indoor wireless access point designed for high-density environments such as offices, schools, and commercial spaces. Leveraging the latest Wi-Fi 6 (802.11ax) technology, it delivers superior capacity, efficiency, and user experience. With a sleek, compact form factor and built-in smart antennas, this access point ensures reliable connectivity for up to 1,024 concurrent users and supports up to 16 SSIDs. It also features Bluetooth 5.0 for IoT applications and a USB 2.0 port for flexible expansion.

Advantages

The AirEngine 5761-11 offers exceptional performance with aggregate data rates up to 1.775 Gbps, combining 574 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz. Its 2x2:2 MIMO configuration on both bands ensures efficient spectrum use. The built-in smart antennas provide optimal coverage and interference mitigation. Power over Ethernet (PoE+) support simplifies installation, while cloud management enables easy remote monitoring and configuration. Ruggedized design ensures reliable operation in temperatures from -10°C to 50°C and humidity up to 95%.

Suitable for

• High-density office environments
• Educational institutions (schools, universities)
• Retail and hospitality venues
• Healthcare facilities
• Any indoor space requiring robust Wi-Fi 6 connectivity

Key specifications

• Wi-Fi Standard: 802.11ax (Wi-Fi 6)
• Frequency Bands: 2.4 GHz, 5 GHz (Dual-band)
• Max Data Rate: 2.4 GHz: 574 Mbps, 5 GHz: 1.2 Gbps, Aggregate: 1.775 Gbps
• MIMO: 2x2:2 on both bands
• Antenna: Built-in smart antennas (2.4 GHz: 3 dBi, 5 GHz: 4 dBi)
• Ethernet: 1 x Gigabit Ethernet (10/100/1000BASE-T) with PoE+ (802.3at)
• Bluetooth: 5.0 (BLE)
• USB: 1 x USB 2.0
• Power Consumption: Max 12.95 W
• Dimensions (W x D x H): 220 mm x 220 mm x 50 mm
• Weight: 0.8 kg (excluding mounting bracket)
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 5% to 95% (non-condensing)
• Security: WPA3, WPA2-PSK, WPA2-Enterprise, WEP, 802.1X
• Management: Cloud management, Fit AP, Bridge, Router

Recommendations

For optimal performance, use with a PoE+ switch or injector. The access point supports ceiling or wall mounting; a mounting kit is included. Ensure firmware is updated to the latest version for enhanced security and features.
