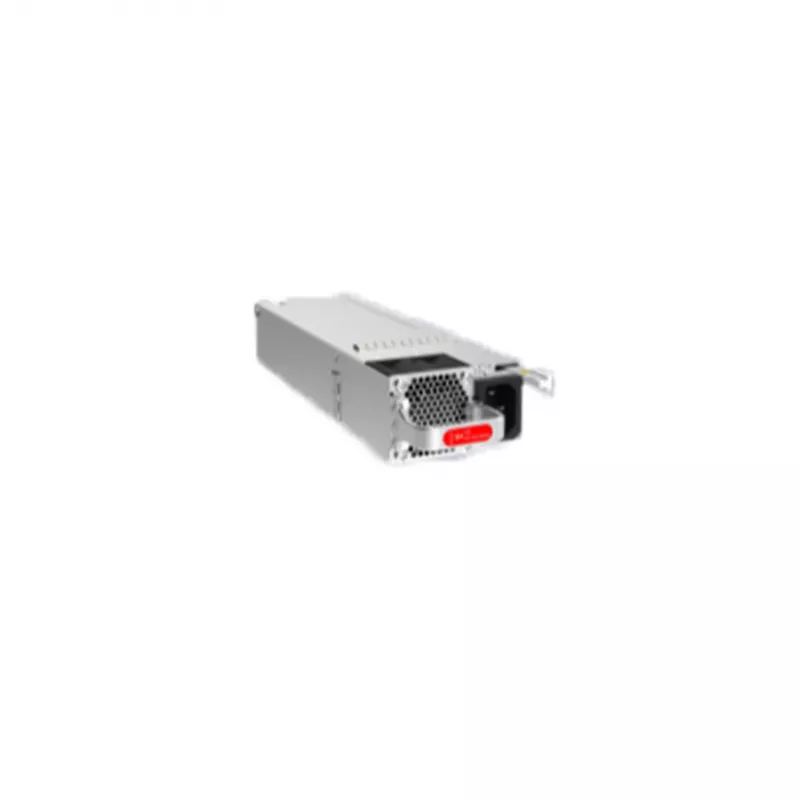

Huawei 1000W AC and DC Power Module 66m - Switch

The Huawei 1000W AC and DC Power Module is a high-efficiency, hot-swappable power supply unit designed for Huawei S5700, S6700, S7700, and S9700 series switches. It delivers reliable 1000W output with both AC and DC input support, ensuring seamless power redundancy and system uptime.

Advantages

This power module offers active PFC for improved energy efficiency, N+M redundancy for fault tolerance, and comprehensive protection features including over-voltage, over-current, short-circuit, and over-temperature safeguards. Its forced-air cooling system maintains optimal operating temperatures even in demanding environments.

Suitable for

• Huawei S5700 series switches
• Huawei S6700 series switches
• Huawei S7700 series switches
• Huawei S9700 series switches

Key specifications

• Power Output: 1000 W
• Input Voltage (AC): 90-290 V AC
• Input Voltage (DC): 190-290 V DC
• Output Voltage: 12 V DC
• Input Frequency: 47-63 Hz
• Efficiency: >90%
• Hot-Swappable: Yes
• Redundancy Support: N+M Redundancy
• Power Factor Correction: Active PFC
• Cooling Type: Internal Fan (Forced Air)
• Operating Temperature: -5°C to 50°C
• Operating Humidity: 5% to 95% RH (non-condensing)
• Protection Features: Over-voltage, Over-current, Short-circuit, Over-temperature
• MTBF: >200,000 hours
• Module Type: AC/DC Power Supply Unit (PSU)

Recommendations

For optimal performance and reliability, ensure compatibility with your specific Huawei switch model. This module is designed for use in enterprise networks requiring high availability and power redundancy.
