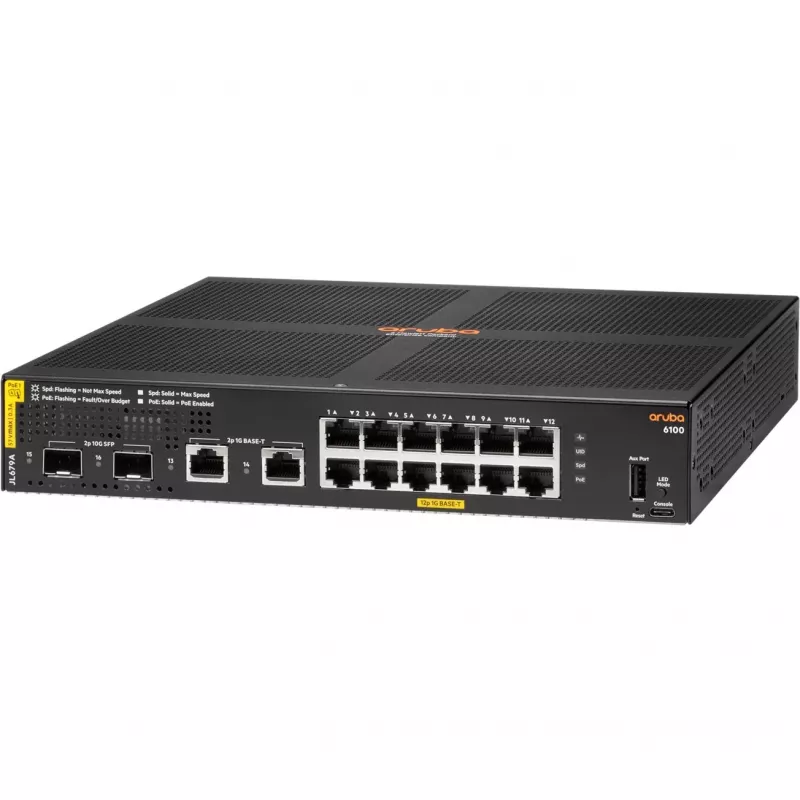

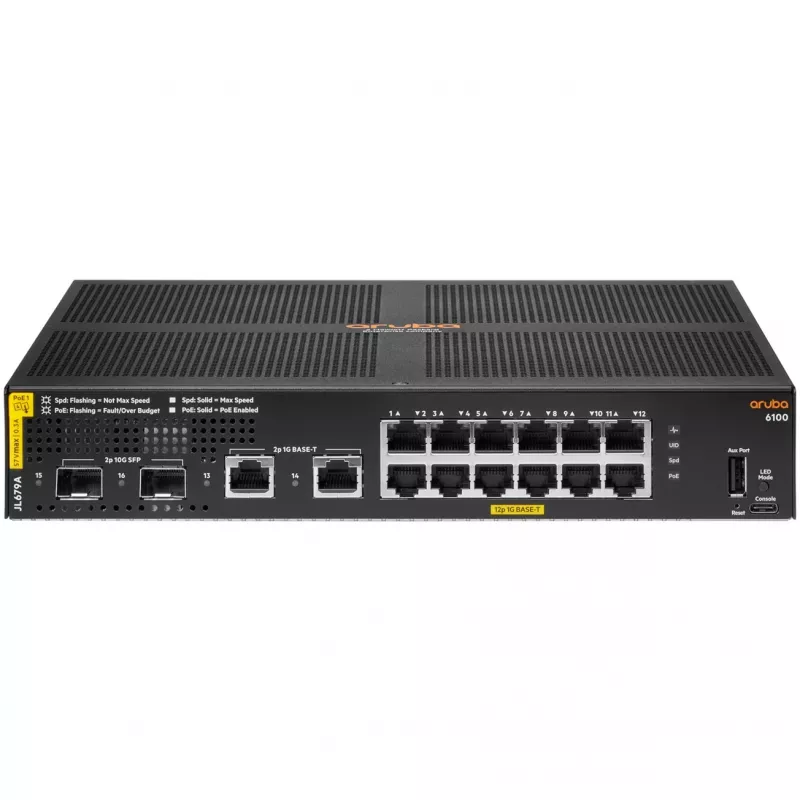

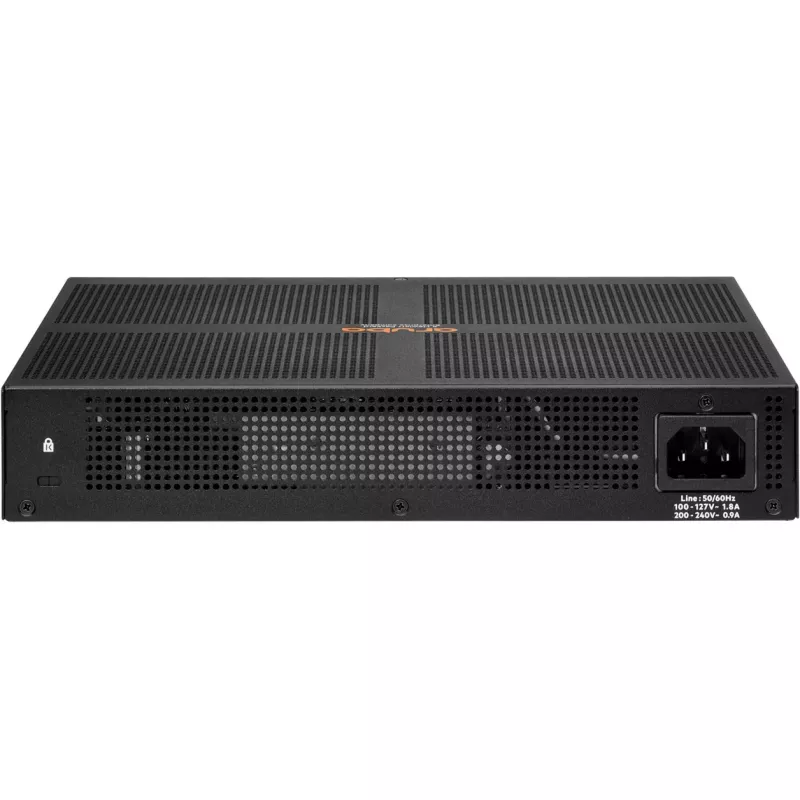

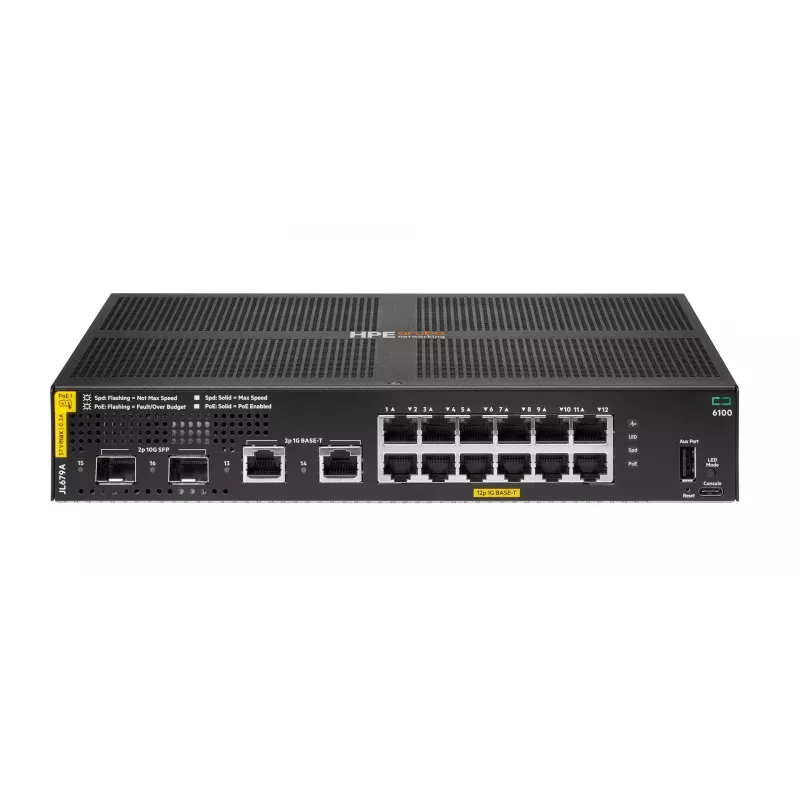

HPE Aruba 6100 12G Class 4 PoE 2G/2SFP+ 139W Switch

The HPE Aruba 6100 12G Class 4 PoE 2G/2SFP+ 139W Switch is a managed Gigabit Ethernet switch designed for small to medium businesses. It provides 12 ports of 10/100/1000 PoE+ with a total PoE budget of 139W, plus 2 dedicated Gigabit ports and 2 SFP+ uplink ports for high-speed connectivity. This switch offers reliable performance and advanced security features, making it ideal for deploying IP phones, wireless access points, and surveillance cameras.

Advantages

Power over Ethernet (PoE+) support simplifies deployment by delivering power and data over a single cable. The switch is easy to manage with a web-based interface and supports VLANs, QoS, and link aggregation for optimized network traffic. Its compact form factor fits well in space-constrained environments.

Suitable for

• Small to medium businesses needing a cost-effective managed switch
• Deployments requiring PoE+ for devices like IP cameras and wireless APs
• Edge or access layer switching in branch offices

Key specifications

• 12 x 10/100/1000 PoE+ ports (Class 4, 139W total budget)
• 2 x 10/100/1000 ports (non-PoE)
• 2 x SFP+ uplink ports (1/10 GbE)
• Managed L2/L3 switch with static routing
• Fanless design for silent operation
• Rack-mountable form factor

Recommendations

For optimal performance, use HPE Aruba compatible SFP+ transceivers. This switch is ideal for networks requiring reliable PoE+ power and simple management.
