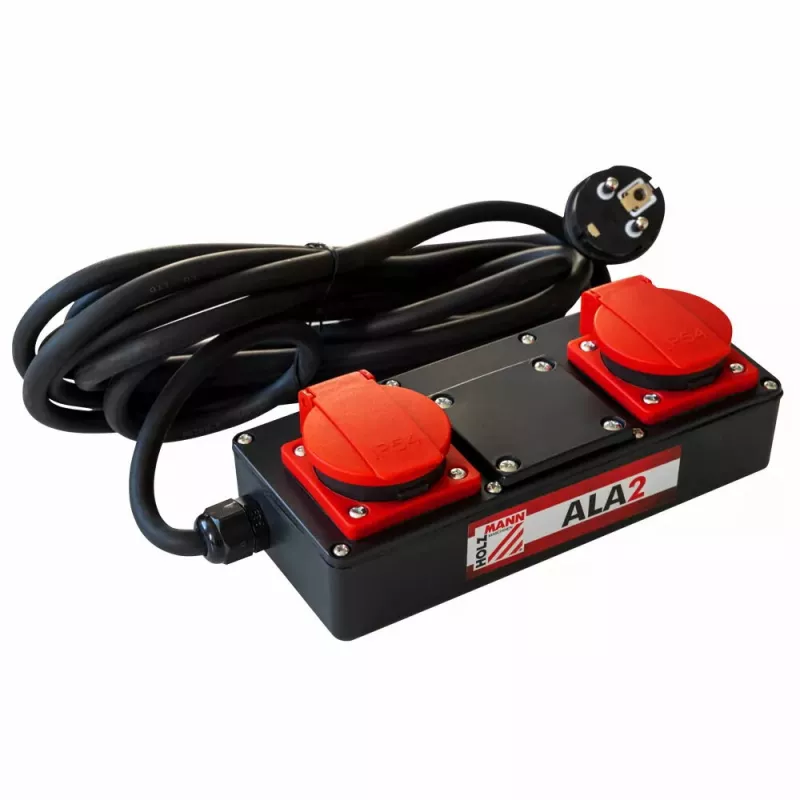

Power Distribution Unit Holzmann ALA2_230V 2 AC outlets 230V 16A

The Holzmann ALA2_230V is a compact power distribution unit with two 230 V AC outlets and a 4 m supply cable. Designed for workshop use, it allows automatic switching of a dust collector when a connected woodworking machine is activated, providing a simple way to synchronize power between the machine and the dust extraction unit. Check the dust collector's requirements beforehand to ensure correct operation.

Advantages

Compact size and straightforward wiring make the unit easy to install near woodworking equipment. With two 230 V AC outlets and a 16 A maximum current rating it supports common machines and a dust collector on a single feed. The 4 m cable provides flexible placement options and the nominal 50 Hz operation matches standard mains frequency.

Suitable for

• Small woodworking workshops where automatic dust collector switching is needed
• Connecting one woodworking machine and one dust extraction unit
• Situations requiring a compact 230 V distribution with up to 16 A load

Key specifications

• Model: Holzmann ALA2_230V
• Outlets: 2 × AC 230 V
• Maximum current: 16 A
• Cable length: 4 m
• Nominal voltage: 230 V, 50 Hz
• Manufacturer brand: Holzmann
• MPN: ALA2_230V, EAN: 9120058378881

How to use

Connect the woodworking machine to one outlet and the dust collector unit to the other outlet on the distribution box. Plug the unit into the mains supply using the attached 4 m cable. When the woodworking machine is activated, the distribution box will switch the dust collector on and off automatically. Verify compatibility and power requirements of both connected devices before use.

Recommendations

Ensure the dust collector's starting current and control requirements are compatible with the distribution unit; do not exceed the 16 A maximum current. Install the unit in a dry, ventilated location and follow all local electrical safety rules and the equipment manufacturers' instructions.
