Hikvision IDS-7216HUHI-M1/T 16-Channel 5-in-1 AcuSense DVR, H.265+, 4K HDMI, 1 SATA, Black

Managing a mix of legacy analog cameras and modern IP cameras often forces compromises in surveillance quality and intelligence. The Hikvision IDS-7216HUHI-M1/T 5-in-1 DVR consolidates HDTVI, AHD, HDCVI, CVBS, and IP signals into one seamless system, eliminating the need for separate recorders and simplifying your security infrastructure. With AcuSense deep learning, it distinguishes humans and vehicles from other moving objects, drastically reducing false alarms and making event search nearly instantaneous.

Who is it for

Retail stores, small offices, warehouses, and residential installations benefit from this DVR's flexibility. Integrators upgrading existing CCTV systems can preserve current coaxial cabling while adding smart analytics and high-resolution recording. It's ideal for those who need a single device supporting both older analog cameras and newer IP cameras, with intelligent motion alerts that cut nuisance notifications.

Main features

• 5-in-1 video input: 16 BNC channels support HDTVI, AHD, HDCVI, and CVBS (up to 5 MP), plus 8 IP channels (up to 8 MP) expanding the system to 24 channels.
• AcuSense deep learning: Human and vehicle target classification on all analog channels for accurate alerts.
• Efficient H.265 Pro+ compression: Save bandwidth and storage without sacrificing image detail.
• 4K HDMI output: Connect to a modern UHD monitor for crisp, high-resolution viewing.
• Large storage capacity: One SATA interface supports up to 10 TB per disk—perfect for long retention schedules.
• Quick setup: USB 2.0 (front) and USB 3.0 (rear) for easy configuration and backup.

Specifications

• Video Input: 16-ch BNC (HDTVI/AHD/CVI/CVBS) + 8-ch IP (expandable to 24-ch)
• IP Video Input Resolution: Up to 8 MP
• Analog Video Input Resolution: Up to 5 MP (HDTVI/AHD), 4 MP (HDCVI)
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Audio Input: 1-ch RCA + 16-ch via coaxial cable
• Audio Output: 1-ch RCA
• HDMI Output: 1-ch, up to 4K (3840 × 2160) / 30 Hz
• VGA Output: 1-ch, up to 1920 × 1080 / 60 Hz
• SATA Interface: 1 SATA interface, up to 10 TB capacity per disk
• Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
• USB Interface: 1 x USB 2.0 (front), 1 x USB 3.0 (rear)
• AcuSense Technology: Deep learning-based human and vehicle target classification
• Perimeter Protection: 4-ch (human/vehicle analysis)
• Motion Detection 2.0: All analog channels (human/vehicle classification)
• Power Supply: 12 VDC

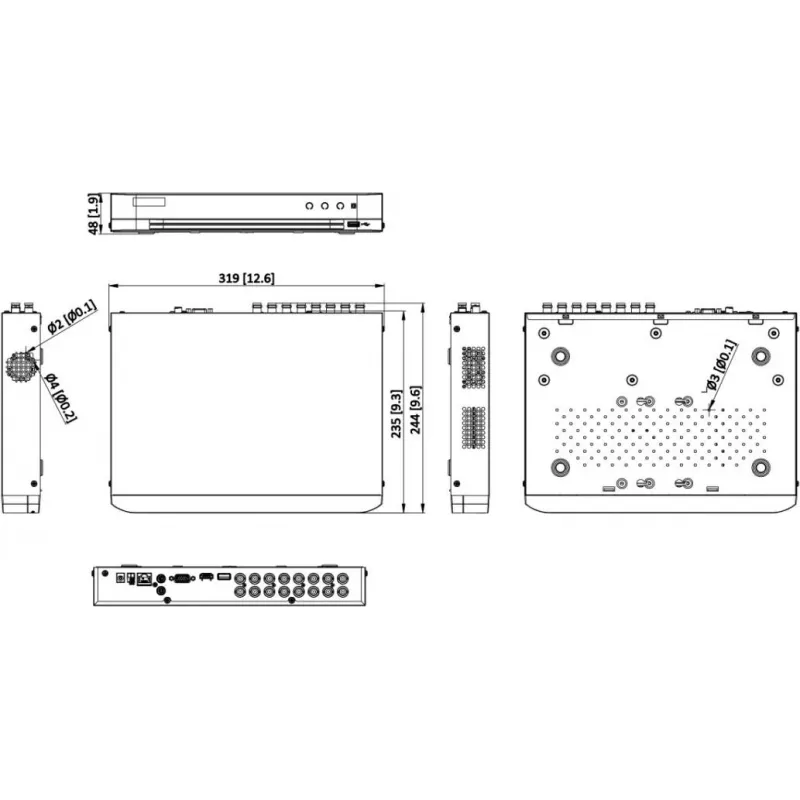

• Chassis Type: 1U standalone chassis

Tips

To maximize storage efficiency, enable H.265 Pro+ compression if your cameras support it. For best AcuSense performance, ensure firmware is up to date and configure motion detection zones appropriately. Use the 4K HDMI output with a UHD monitor to fully appreciate the high-resolution recording capabilities.
