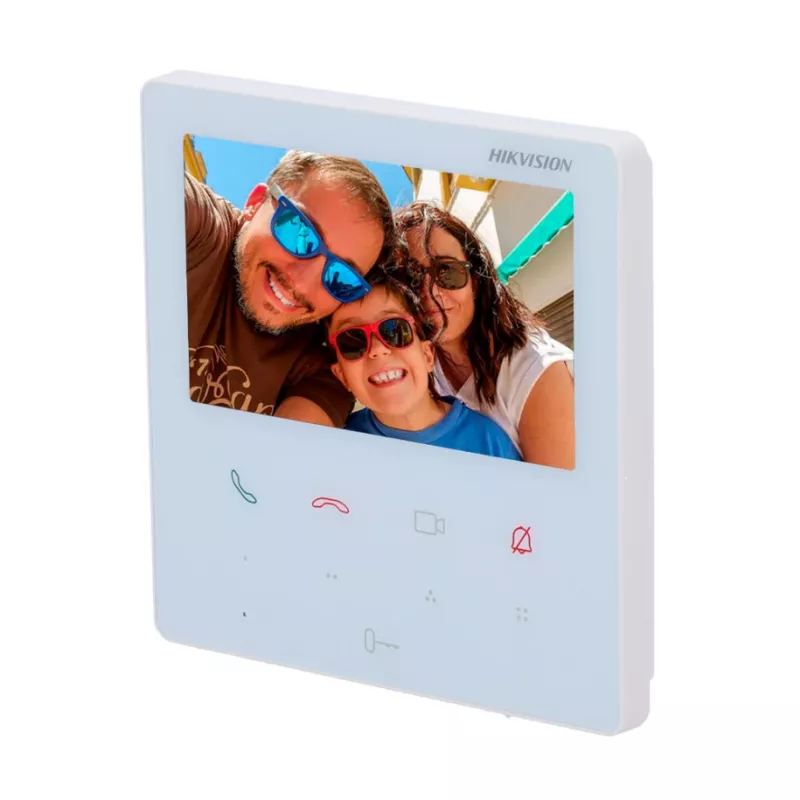

Hikvision DS-KH6110-WE1 4.3 inch Indoor Station, 480x272, PoE, WiFi, 4 Custom Buttons, Touch Screen, White

The Hikvision DS-KH6110-WE1 is a 4.3-inch indoor station designed for modern video intercom systems. With a capacitive touch screen and four customizable buttons, it offers intuitive operation and seamless communication. Powered by PoE (IEEE 802.3af) or 12 VDC, it integrates easily into existing networks. Built-in Wi-Fi (802.11b/g/n) provides flexible connectivity, while the embedded Linux OS ensures reliable performance. The white, wall-mountable unit features a built-in microphone and loudspeaker for two-way audio, supporting G.711 codecs. Ideal for residential and commercial access control, this indoor station combines sleek design with robust functionality.

Advantages

This indoor station offers a compact 4.3-inch TFT LCD display with 480x272 resolution and capacitive touch, providing clear visuals and responsive control. The four customizable buttons allow tailored operation for door release, security, or automation. PoE support simplifies installation by combining power and data over a single Ethernet cable, reducing wiring costs. Wi-Fi connectivity enables wireless integration, making it suitable for retrofits or locations where cabling is challenging. The embedded Linux OS ensures stability and security, while the wide operating temperature range (-10°C to 50°C) guarantees reliable performance in various environments.

Suitable for

• Residential video intercom systems
• Small to medium-sized office access control
• Apartment buildings and gated communities
• Integration with Hikvision door stations and security systems

Key specifications

• Display: 4.3-inch TFT LCD, 480x272 resolution, capacitive touch
• Physical Buttons: 4 customizable
• Network: 1x RJ45 10/100 Mbps, Wi-Fi 802.11b/g/n
• Power: PoE (IEEE 802.3af) or 12 VDC, 1 A; max 3.5 W
• Audio: Built-in omnidirectional microphone and loudspeaker; two-way audio; G.711 U/A compression
• Alarm Input: 4-channel
• Material: PC+ABS
• Colour: White
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Installation: Wall mounting

Recommendations

For optimal performance, pair this indoor station with a compatible Hikvision door station and ensure your network supports PoE. Use the customizable buttons to program frequently used functions like door unlock or call forwarding. Regular firmware updates via the network interface will keep the system secure and feature-rich.
