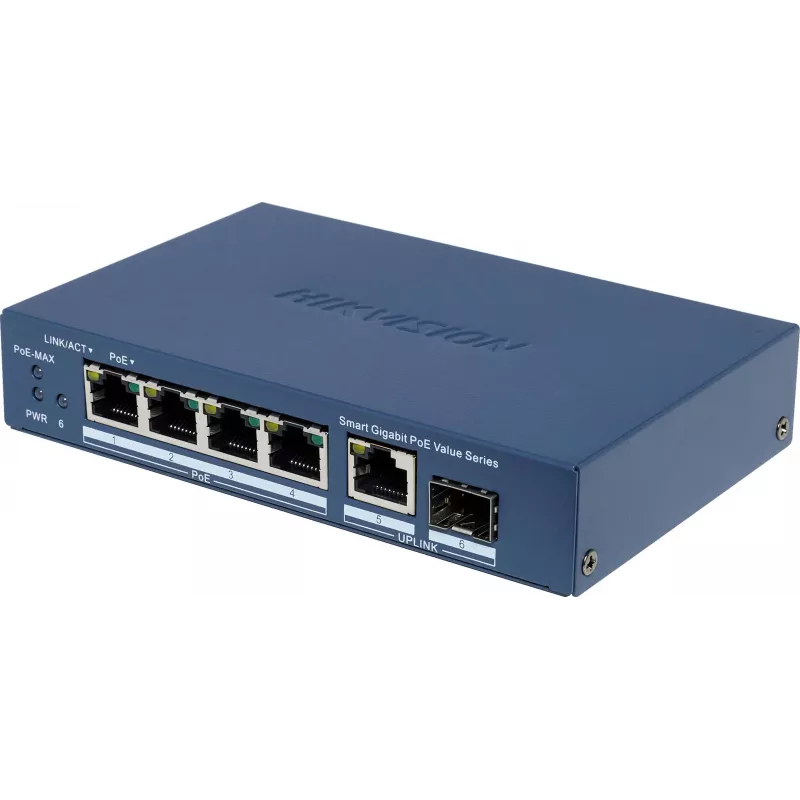

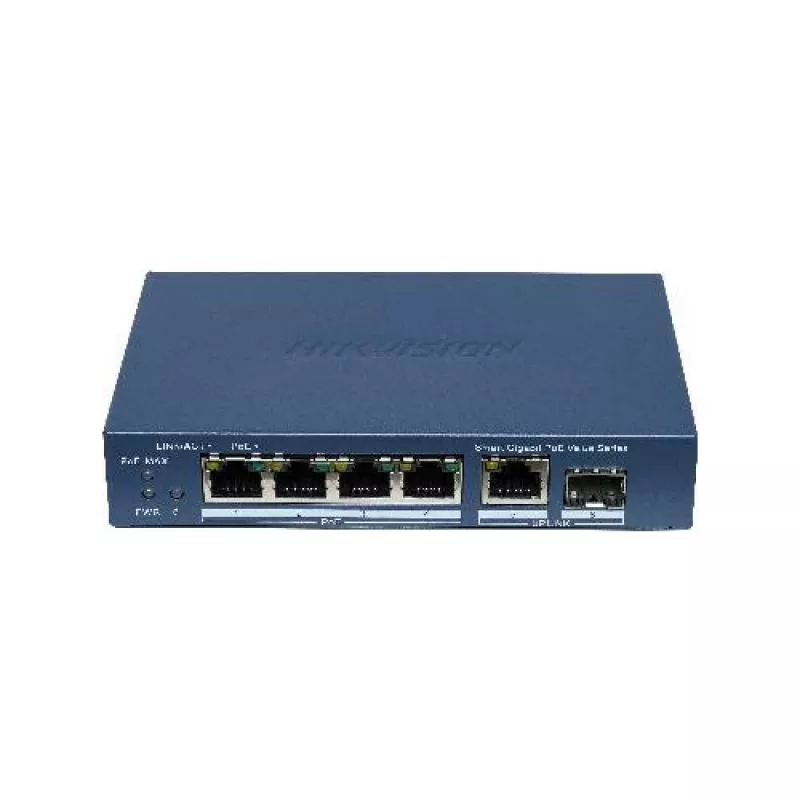

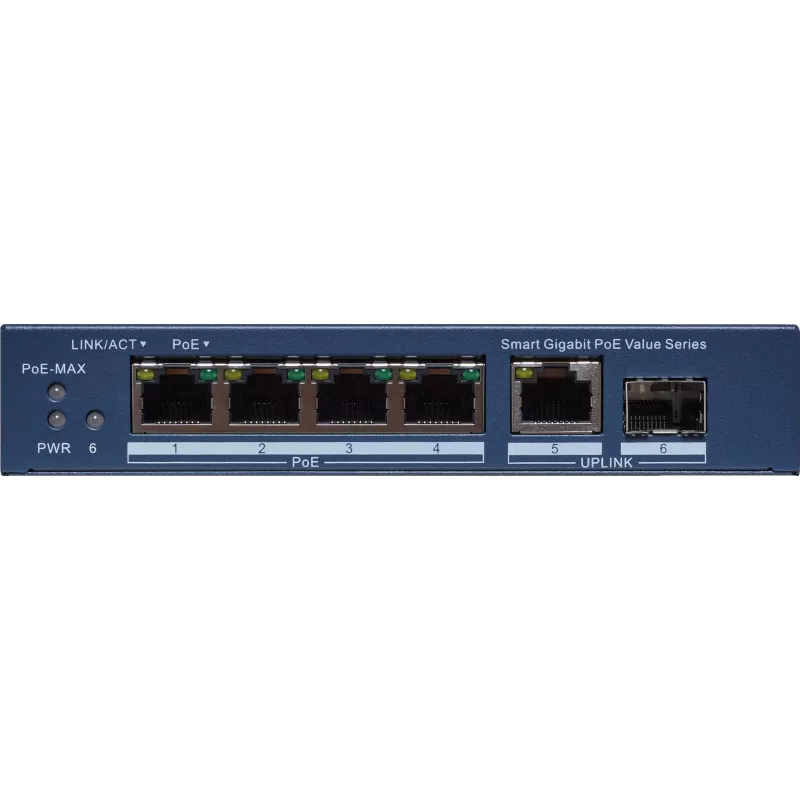

Hikvision DS-3E1506P-EI/M-4P1T1F(O-STD) 6-Port Unmanaged PoE+ Switch with 4 PoE+ Ports, 1 Gigabit RJ45 and 1 SFP Uplink

Unmanaged PoE+ switch with four 10/100 Mbps PoE+ ports, one gigabit RJ45 uplink, and one gigabit SFP uplink, delivering up to 30W per PoE port and a total power budget of 60W for small to medium surveillance networks.

Advantages

Four PoE+ ports supply both data and power over a single Ethernet cable, simplifying installation of IP cameras and wireless access points without separate power supplies. The switch provides a total PoE budget of 60W, enough for multiple PoE+ devices. Uplink flexibility is ensured by a 10/100/1000 Mbps RJ45 port and a 1000 Mbps SFP slot for fiber connectivity. The metal housing and 6KV surge protection on PoE ports enhance durability in demanding environments. Plug-and-play operation requires no configuration, making it ideal for quick deployments.

Suitable for

• IP surveillance systems with up to four PoE cameras
• Small office and retail networks
• Wireless access point deployments
• Edge devices requiring PoE+ power and gigabit uplinks

Key specifications

• Unmanaged switch with 6 network ports
• 4 x 10/100 Mbps PoE+ ports (IEEE 802.3af/at, up to 30W per port, 60W budget)
• 1 x 10/100/1000 Mbps RJ45 uplink
• 1 x 1000 Mbps SFP uplink
• Switching capacity: 6.8 Gbps
• Packet forwarding rate: 5.059 Mpps
• MAC address table: 2K
• Jumbo frame support: 9 KB
• Power supply: 48 VDC, 1.35 A
• Max power consumption: 65W (with PoE)
• Operating temperature: -10°C to 55°C
• Operating humidity: 5% to 95% RH, non-condensing
• Desktop or wall-mount installation
• Metal casing with 6KV surge protection

Recommendations

For reliable PoE+ connectivity in compact surveillance setups, this switch offers a robust, plug-and-play solution with flexible uplink options and durable construction.
