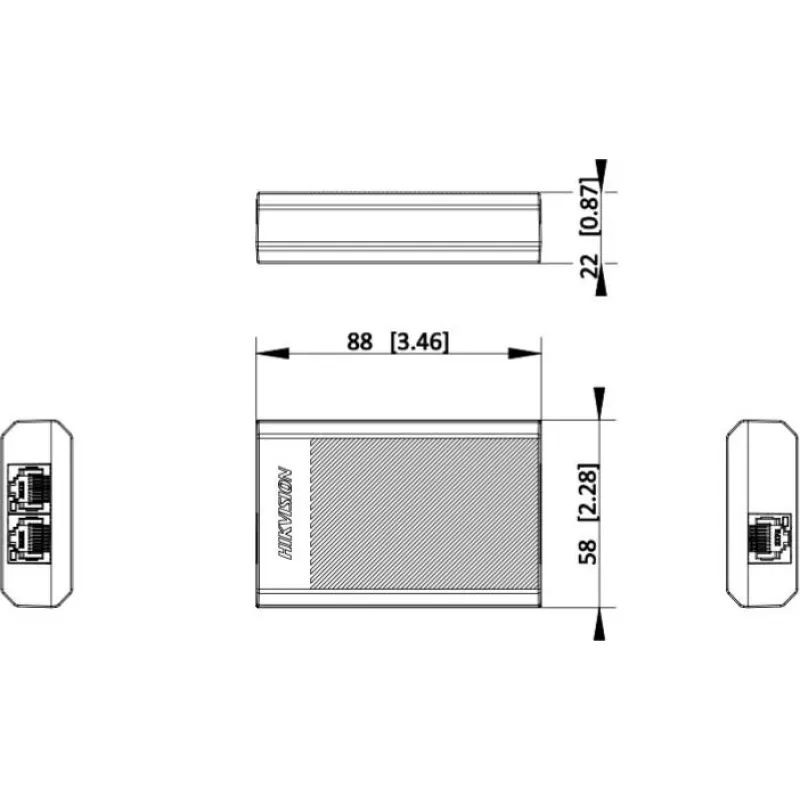

Hikvision DS-3E0503DP-E/R PoE Repeater, 1x PoE Input, 2x PoE Output, 10/100 Mbps, Metal Housing

The Hikvision DS-3E0503DP-E/R is a professional PoE repeater designed to extend Power over Ethernet (PoE) connections for IP cameras, access points, and other network devices. With one PoE input port and two PoE output ports, it enables flexible deployment and simplifies cabling by eliminating the need for additional power outlets. The device supports IEEE 802.3af/at PoE input and IEEE 802.3af PoE output, delivering up to 15.4 W per port and a total output power of 30 W when powered by an 802.3at source. It can extend the transmission distance up to 100 meters per repeater, and cascading up to three units allows a total distance of 400 meters. The metal housing ensures durability, and the wall-mountable design makes installation easy in various environments.

Advantages

Extends PoE network reach without additional power sources, supports cascading for longer distances, and provides reliable data transmission at 10/100 Mbps. The compact metal casing offers robust protection, and plug-and-play functionality ensures quick setup.

Suitable for

• Extending PoE connections for IP cameras in surveillance systems
• Deploying wireless access points in hard-to-reach areas
• Powering VoIP phones and other PoE devices beyond standard cable limits

Key specifications

• PoE Input: 1x 10/100 Mbps RJ45 (802.3af/at)
• PoE Output: 2x 10/100 Mbps RJ45 (802.3af)
• Max PoE Output Power per Port: 15.4 W
• Max Total PoE Output Power: 30 W (with 802.3at input)
• Data Rate: 10/100 Mbps
• Transmission Distance: Up to 100 m per repeater (400 m with 3 cascaded)
• MAC Address Table: 2K
• Operating Temperature: -30°C to 65°C
• Surge Protection: 6 KV
• Housing Material: Metal
• Installation: Wall-mount, Desktop

Recommendations

For optimal performance, use with 802.3at PoE switches to achieve maximum output power. Ensure proper ventilation and avoid exposure to extreme humidity.
