ATTE ADD-RACK10-2U1 10-Inch 2U Rack Mounting Adapter with Straight Holes, Black

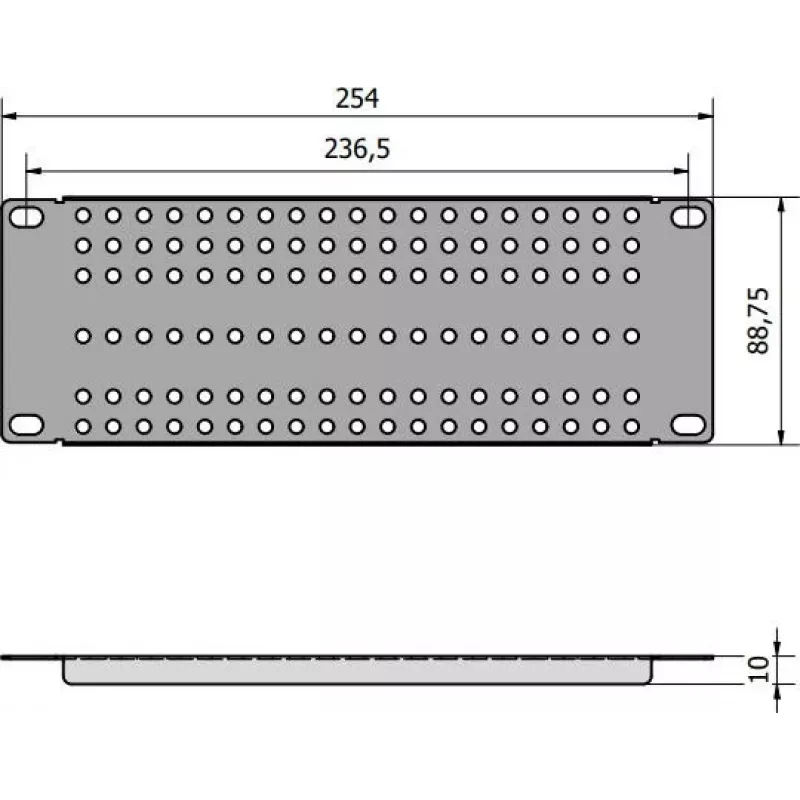

The ATTE ADD-RACK10-2U1 is a robust 10-inch 2U rack mounting adapter designed for securely installing non-rackmount or smaller devices into standard 10-inch data and network cabinets. Crafted from high-quality steel with a black powder-coated finish (RAL 9005), this front-mount shelf features straight perforations for effective ventilation. Its compact dimensions (254 mm width, 88.9 mm height, 100 mm depth) make it ideal for organizing equipment in space-constrained environments.

Advantages

This mounting adapter offers a reliable and cost-effective solution for integrating devices that lack rack-mount ears. The steel construction ensures durability, while the powder-coated surface provides corrosion resistance. The perforated design promotes airflow, helping to maintain optimal operating temperatures for installed equipment. Easy screw-in installation (standard rack screws required, not included) saves time and effort.

Suitable for

• Mounting network switches, routers, or patch panels in 10-inch racks
• Installing audio/video equipment or small servers in compact cabinets
• Organizing devices in home labs, small offices, or telecommunication rooms

Key specifications

• Rack Size Compatibility: 10-inch
• Rack Unit Height: 2U
• Material: Steel
• Color: Black (RAL 9005)
• Surface Finish: Powder Coated
• Mounting Position: Front Mount
• Perforation Type: Straight Holes
• Ventilation: Yes, via perforations
• Overall Width: 254 mm
• Overall Height: 88.9 mm
• Overall Depth: 100 mm

Recommendations

For best results, use standard M6 rack screws (not included) to secure the adapter. Ensure the cabinet depth accommodates the 100 mm depth of the shelf. This adapter is not suitable for 19-inch racks.
