Hikvision DS-2CD3547G2-LS(2.8mm)(C) 4MP AcuSense IP Camera

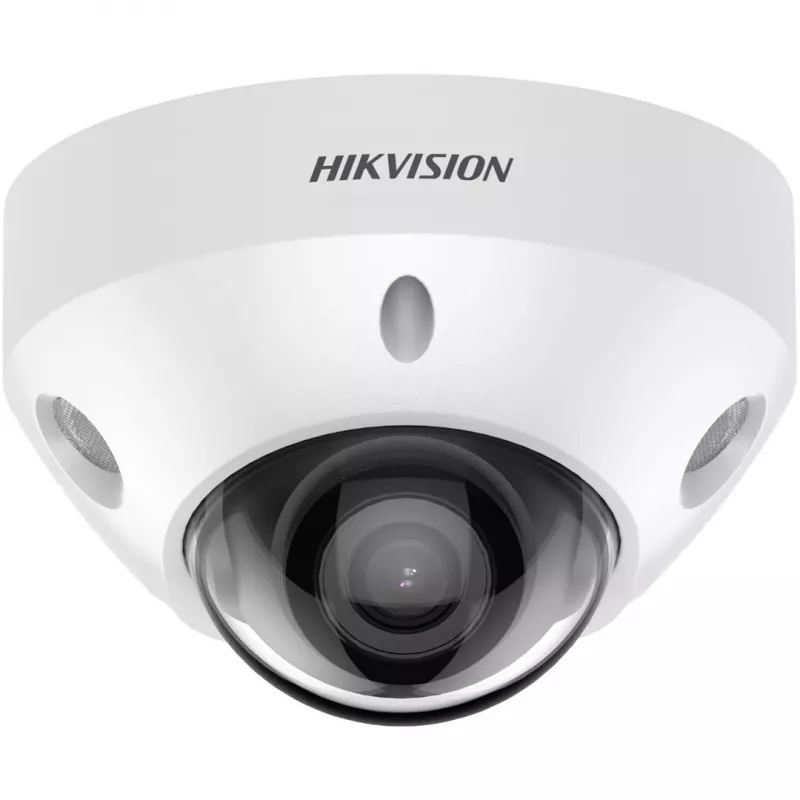

The Hikvision DS-2CD3547G2-LS(2.8mm)(C) is a high-performance 4MP IP camera featuring AcuSense technology for accurate human and vehicle classification. With a 2.8mm fixed lens providing a 103° horizontal field of view, this dome camera delivers crisp, detailed images even in challenging lighting conditions. Its 120 dB true WDR ensures clear footage in high-contrast scenes, while the built-in IR LEDs offer up to 30m night vision. Designed for outdoor use, it boasts IP67 weatherproof and IK10 vandal-resistant ratings.

Advantages

AcuSense smart detection reduces false alarms by filtering out irrelevant motion. The 4MP resolution captures fine details, and the 2.8mm lens is ideal for wide-area surveillance. Power over Ethernet (PoE) simplifies installation, and the camera supports H.265+ compression to save bandwidth and storage.

Suitable for

• Retail stores and shops
• Office buildings and reception areas
• Warehouses and logistics centers
• Residential properties and apartment complexes
• Parking lots and entrances

Key specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520 (4 MP)
• Lens: 2.8 mm fixed focal, F1.4
• Horizontal FoV: 103°
• IR Range: Up to 30 m
• Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)
• WDR: 120 dB
• Video Compression: H.265+/H.265/H.264+/H.264
• Smart Features: AcuSense (Human & Vehicle Classification), Line Crossing, Intrusion Detection
• Local Storage: MicroSD/SDHC/SDXC slot, up to 256 GB
• Audio: Built-in Microphone, 1-ch Audio Input, 1-ch Audio Output
• Alarm: 1-ch Alarm Input, 1-ch Alarm Output
• Network: 1x RJ45 10M/100M Ethernet
• Power: 12 VDC, PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Pair with Hikvision NVRs for seamless integration and advanced analytics. Ensure the mounting surface can support the camera's weight and provides a stable connection.
