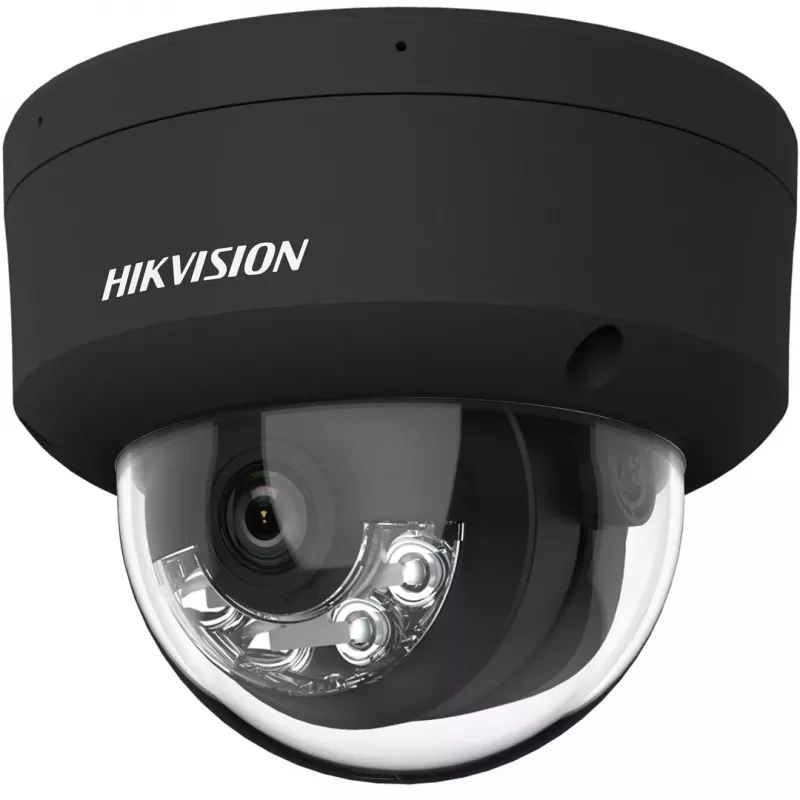

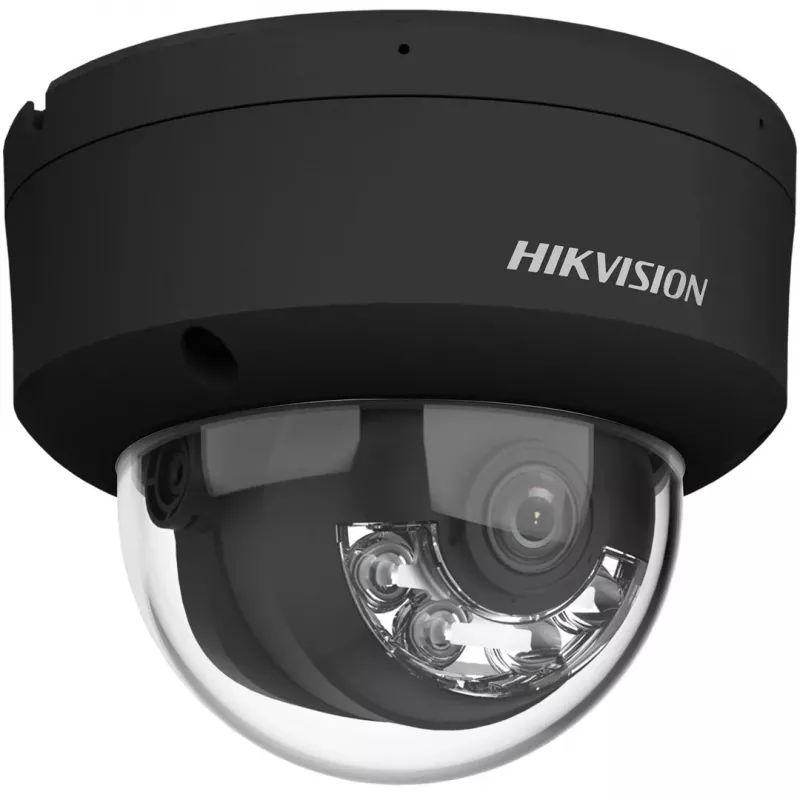

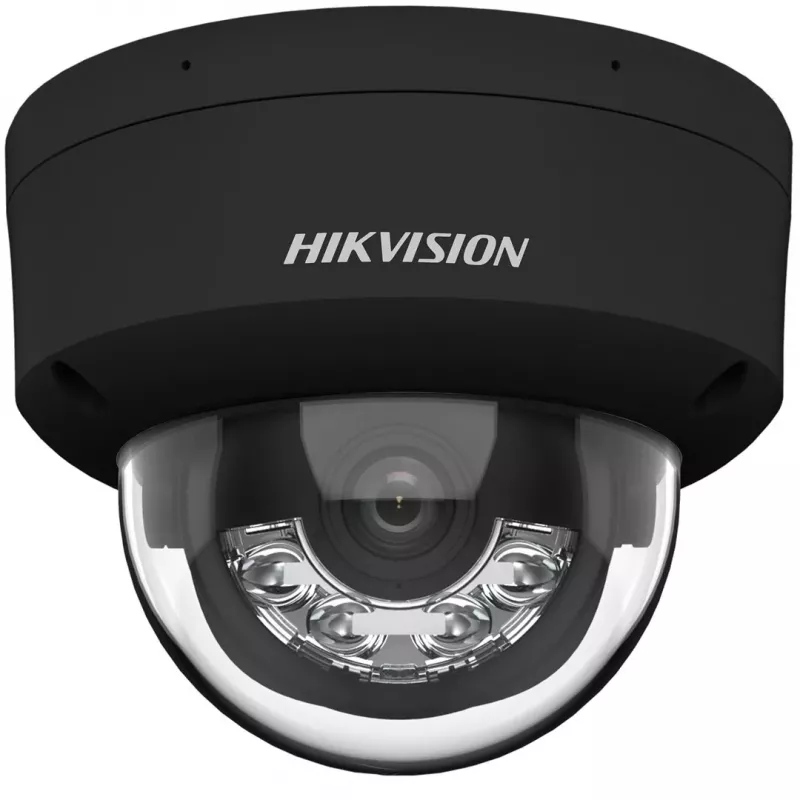

Hikvision DS-2CD2143G2-LIS2U(2.8mm)(BLACK) 4MP AcuSense Dome IP Security Camera, 2.8mm Fixed Lens, Black

The Hikvision DS-2CD2143G2-LIS2U(2.8mm)(BLACK) is a high-performance 4MP dome IP security camera designed for indoor and outdoor surveillance. Featuring AcuSense technology with human and vehicle target classification, this camera delivers intelligent monitoring with reduced false alarms. With a 2.8mm fixed lens providing a 103° horizontal field of view, it is ideal for wide-area coverage in retail, offices, and residential applications.

Advantages

Equipped with 120 dB True WDR and H.265+ compression, the camera ensures clear imaging in challenging lighting conditions while saving bandwidth and storage. The IP67 and IK10 ratings guarantee durability against dust, water, and vandalism, making it suitable for harsh environments. Built-in micro SD card slot supports up to 256 GB for local storage.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Residential properties and apartment complexes
• Warehouses and logistics centers
• Educational institutions and hospitals

Key specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520 (4 MP)
• Frame Rate: 20 fps (2688 × 1520), 25/30 fps (1920 × 1080)
• Lens: 2.8 mm fixed focal
• Horizontal Angle of View: 103°
• IR Range: Up to 30 m
• WDR: 120 dB True WDR
• Video Compression: H.265+/H.265/H.264+/H.264
• Smart Features: AcuSense (Human and Vehicle Target Classification)
• Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Network Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Power Supply: 12 VDC ± 25%, PoE (802.3af)
• Power Consumption: Max. 6.5 W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F)
• Mounting Type: Ceiling/Wall
• Color: Black

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the micro SD card is high endurance for continuous recording. This camera is compatible with Hikvision NVRs and third-party ONVIF systems.
