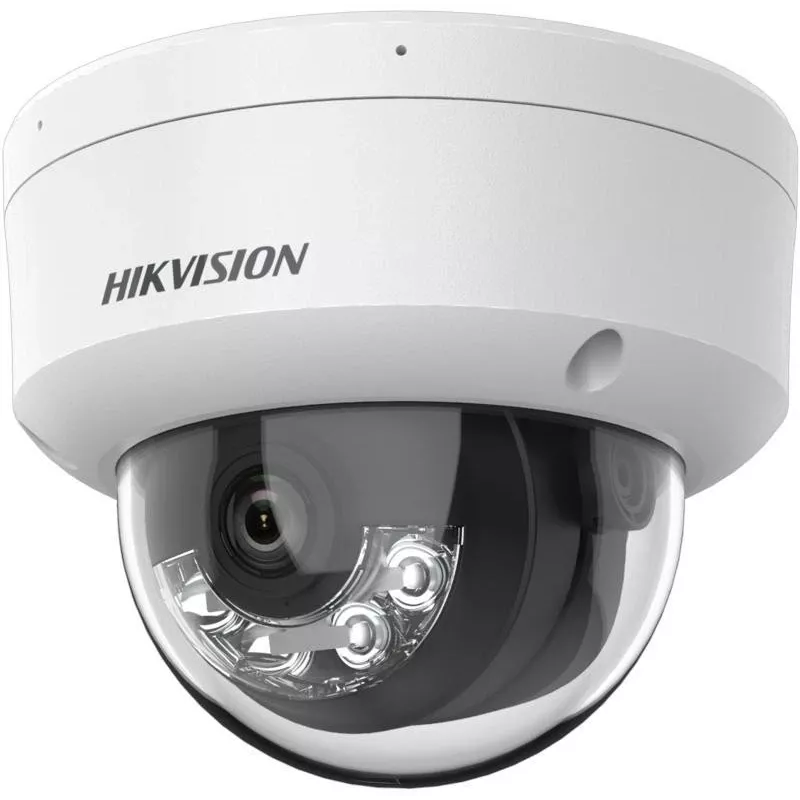

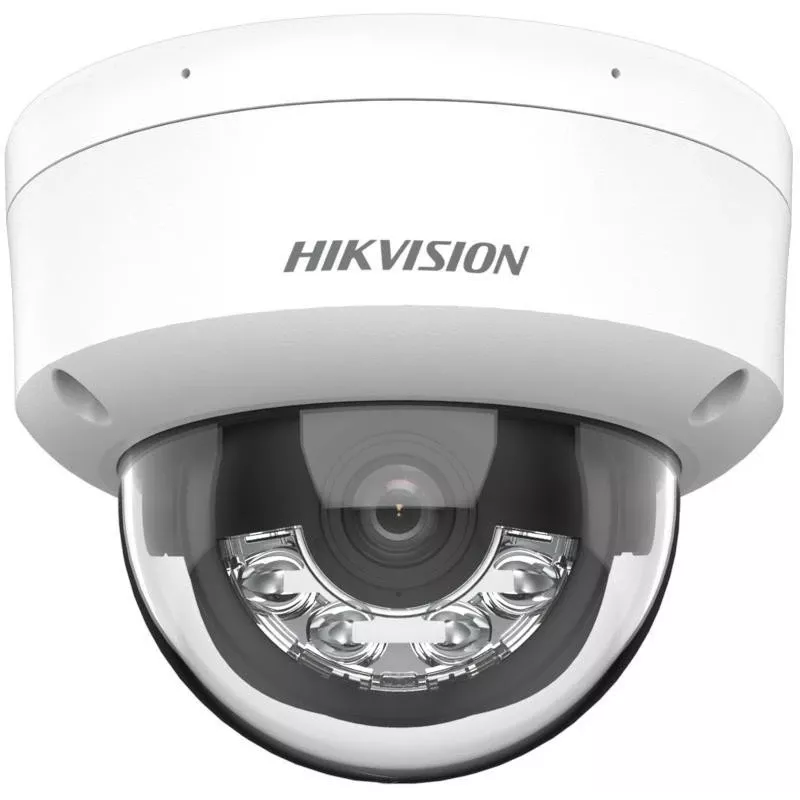

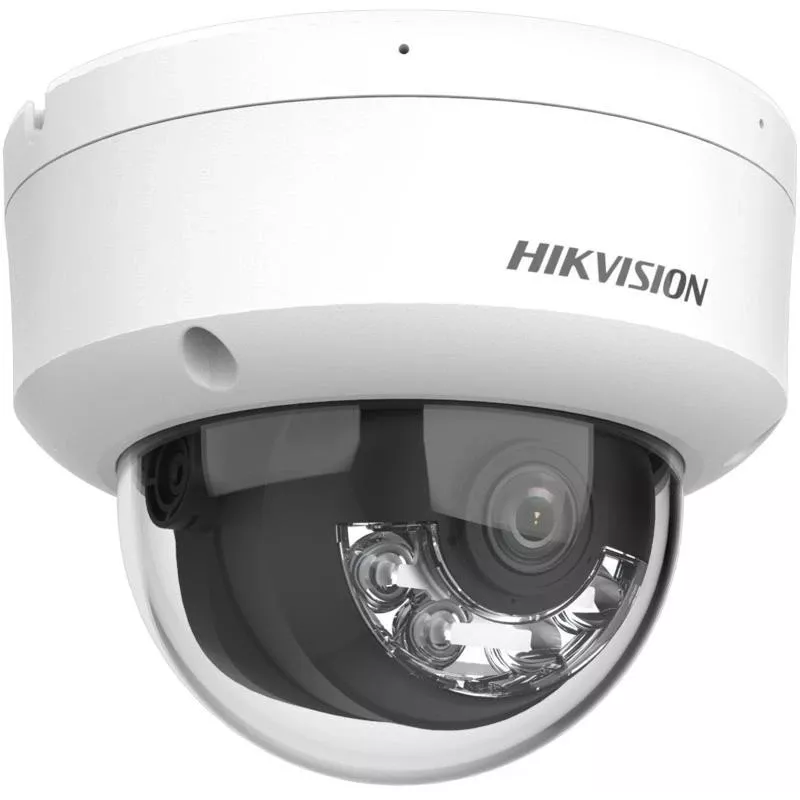

Hikvision DS-2CD1143G2-LIU 4mm 4MP IP Camera

The Hikvision DS-2CD1143G2-LIU is a high-performance 4MP IP camera designed for outdoor surveillance. Featuring AcuSense technology with human and vehicle classification, it delivers intelligent motion detection with reduced false alarms. Equipped with a 4mm fixed lens, dual-light night vision (IR and white light) up to 30m, and a 1/3" progressive scan CMOS sensor, this camera ensures clear imaging in various lighting conditions. With IP67 and IK10 ratings, it is built to withstand harsh environments.

Advantages

AcuSense smart detection reduces false alerts by distinguishing humans and vehicles from other motion. Dual-light technology provides both infrared and white light illumination for color night vision. The 120dB true WDR handles high-contrast scenes, while H.265+ compression saves bandwidth and storage. Built-in microphone enables audio monitoring, and the microSD slot supports up to 256GB local storage.

Suitable for

• Outdoor perimeter surveillance
• Commercial and residential security
• Parking lots, entrances, and warehouses
• Areas requiring intelligent motion detection

Key specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max Resolution: 2560 × 1440 (4MP)
• Lens: 4mm fixed focal
• Field of View: 84° horizontal
• Min Illumination: Color 0.005 Lux, B/W 0 Lux with IR
• Night Vision: Dual-light (IR and white light) up to 30m
• Video Compression: H.265+/H.265/H.264+/H.264
• WDR: 120dB
• Noise Reduction: 3D DNR
• Audio: Built-in microphone
• Storage: microSD slot up to 256GB
• Smart Features: AcuSense (human/vehicle classification)
• Power: 12VDC, PoE (802.3af)
• Protection: IP67, IK10
• Operating Temperature: -30°C to 60°C
• Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector for simplified installation. Pair with Hikvision NVR for seamless integration and advanced analytics.
