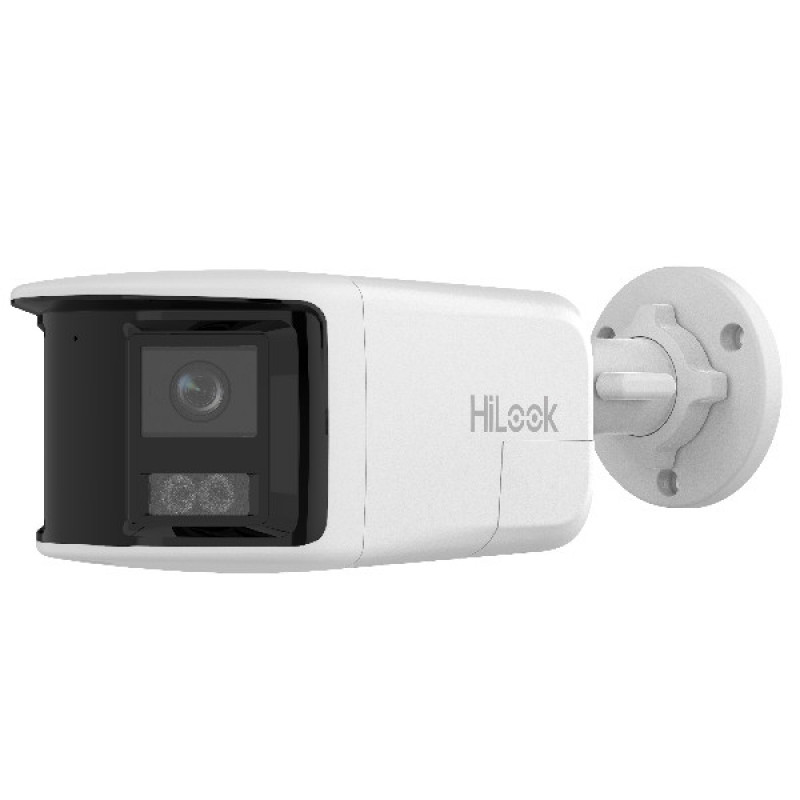

Hilook IP Camera IPC-B460HAD-LUF/SL panoramic 6MP Smart Hybrid Light

The Hilook IPC-B460HAD-LUF/SL is a panoramic IP security camera that delivers a 180° field of view using dual lenses. It captures 6 MP resolution video and features Smart Hybrid Light technology with IR and white light illumination. Designed for outdoor use, it offers two-way audio, active deterrence, and efficient H.265+ compression.

Key features

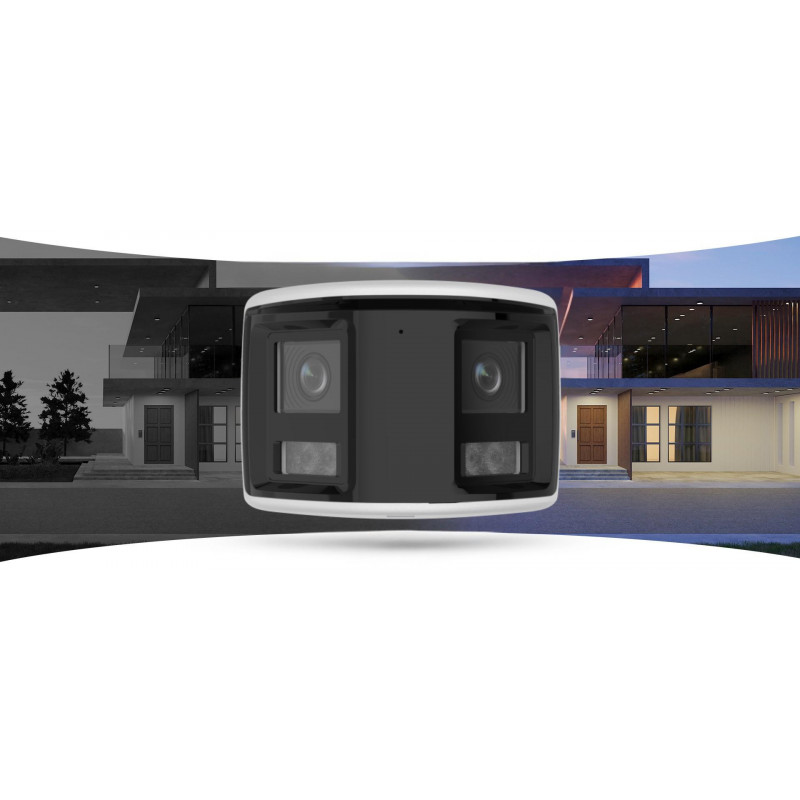

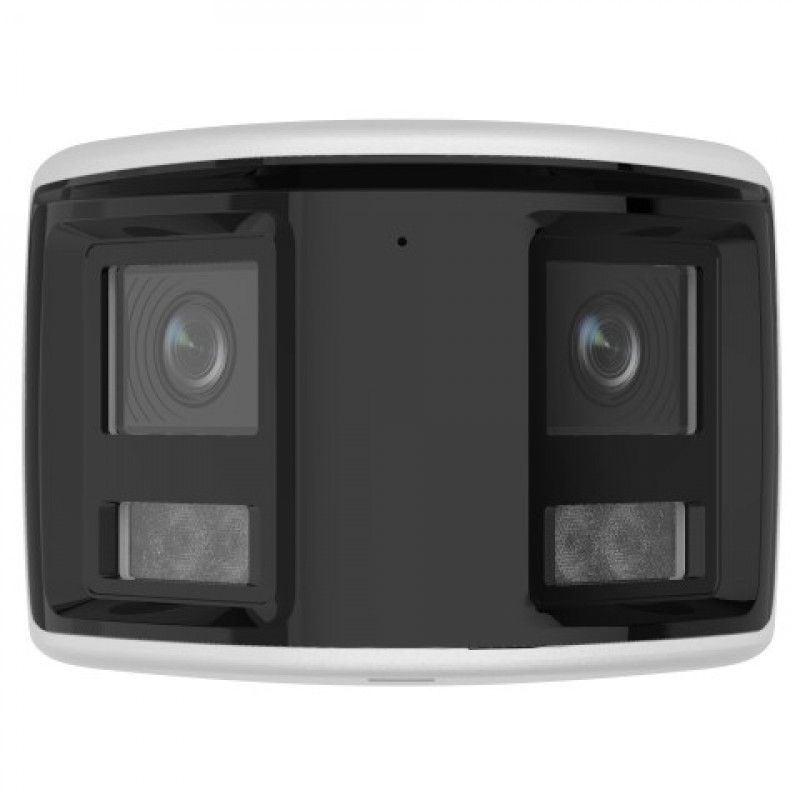

• Panoramic 180° view with dual lenses
• 6 MP resolution (3632 × 1632 px)
• Smart Hybrid Light: IR and white light
• Human and vehicle detection
• Two-way audio communication
• Sound and light alarm for deterrence
• H.265+ compression
• Local storage via microSD card up to 512 GB
• PoE power supply
• Weatherproof housing for outdoor use

Specifications

• Brand: Hilook
• MPN: IPC-B460HAD-LUF/SL
• Product type: IP Security Camera
• Product colour: White
• Maximum resolution: 6 MP
• Form factor: Bullet
• Placement supported: Outdoor
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Image sensor: 1/2.5" Progressive Scan CMOS
• Minimum illumination: Colour 0.005 Lux @ F1.6, AGC ON; 0 Lux with IR
• Shutter speed: 1 s – 1/100,000 s
• Day/Night mode: Mechanical IR cut filter (ICR)
• Pan/Tilt/Rotate range: Pan 0–360°, Tilt 0–180°, Rotate 0–360°
• Lens type: Fixed focal
• Focal length: 2.8 mm
• Lens mount: M12
• Aperture: F1.6
• Horizontal field of view: 180°
• Vertical field of view: 77°
• DORI: Detection 42 m, Observation 16 m, Recognition 8 m, Identification 4 m
• Smart Hybrid Light: IR + white light
• Max. IR range: 30 m
• IR wavelength: 850 nm
• Video compression: Main stream H.265+/H.265/H.264+/H.264; Sub-stream H.265/H.264/MJPEG
• Frame rate: 20 fps at 3632 × 1632 (main stream)
• Bit rate: 32 Kbps – 16 Mbps
• WDR: 120 dB
• SNR: ≥52 dB
• Audio: Mono, two-way
• Built-in microphone: 1
• Built-in speaker: 1, max. power 2 W, max. sound pressure 97 dB at 10 cm
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Storage: microSD card up to 512 GB
• Intelligent detection: Motion detection, human detection, vehicle detection
• Alarm: Sound and light warning
