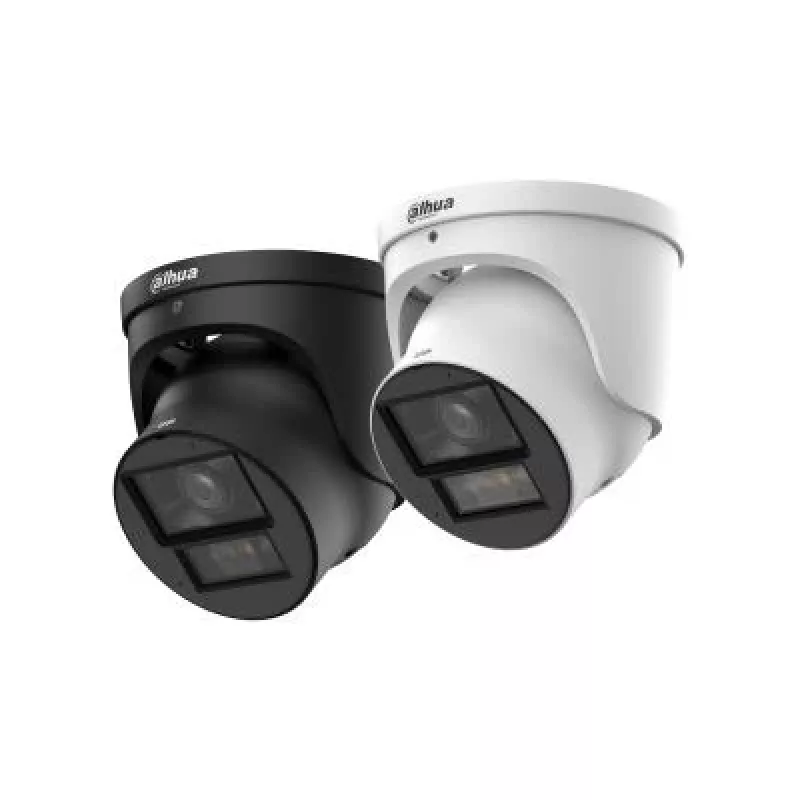

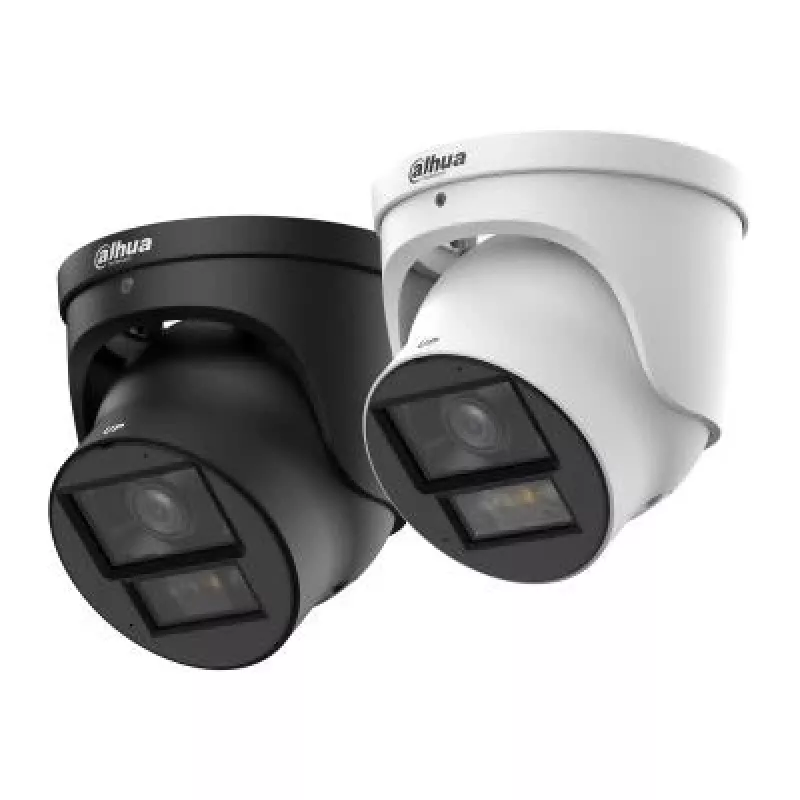

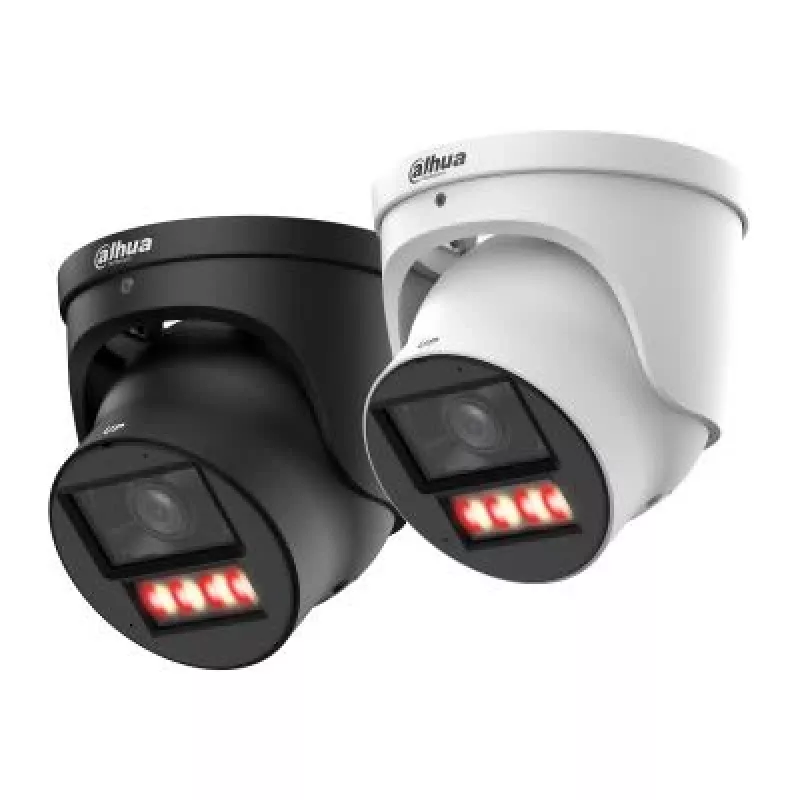

DAHUA 6MP Eyeball Network Camera IPC-HDW5659H-ASE-PV-0360B-PRO

The DAHUA IPC-HDW5659H-ASE-PV-0360B-PRO is a high-performance 6MP eyeball network camera designed for professional surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, it delivers crisp 3072×2048 resolution at 20 fps. Equipped with a 3.6mm fixed lens and F1.6 aperture, this camera provides clear images even in low light. With 120dB True WDR, it handles challenging lighting conditions. The camera includes advanced AI features such as Perimeter Protection, SMD 4.0, Face Detection, and People Counting, making it ideal for security and analytics.

Advantages

High 6MP resolution for detailed imaging; 120dB True WDR for balanced exposure; AI-powered analytics for intelligent monitoring; IP67 and IK10 rating for durability; PoE support for easy installation.

Suitable for

• Commercial and residential security
• Retail stores and offices
• Warehouses and industrial sites
• Outdoor perimeter protection

Key specifications

• Sensor: 1/2.7" Progressive Scan CMOS
• Max Resolution: 6MP (3072×2048) at 20fps
• Lens: 3.6mm fixed, F1.6
• IR Distance: Up to 30m
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
• WDR: 120dB True WDR
• AI Features: Perimeter Protection, SMD 4.0, Face Detection, People Counting
• Audio: Built-in mic, 1/1 audio I/O
• Alarm: 1/1 alarm I/O
• Storage: Micro SD slot up to 256GB
• Network: RJ-45 10/100Base-T
• Power: 12V DC / PoE (802.3af), max 7.5W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector. Ensure the camera is mounted securely and the lens is clean. Regularly update firmware to access the latest features.
