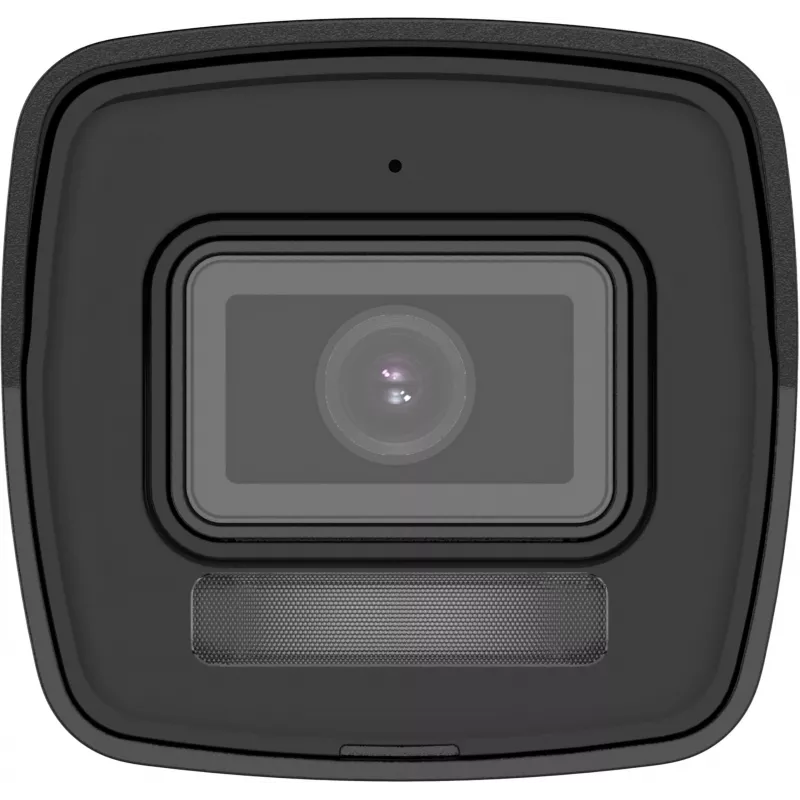

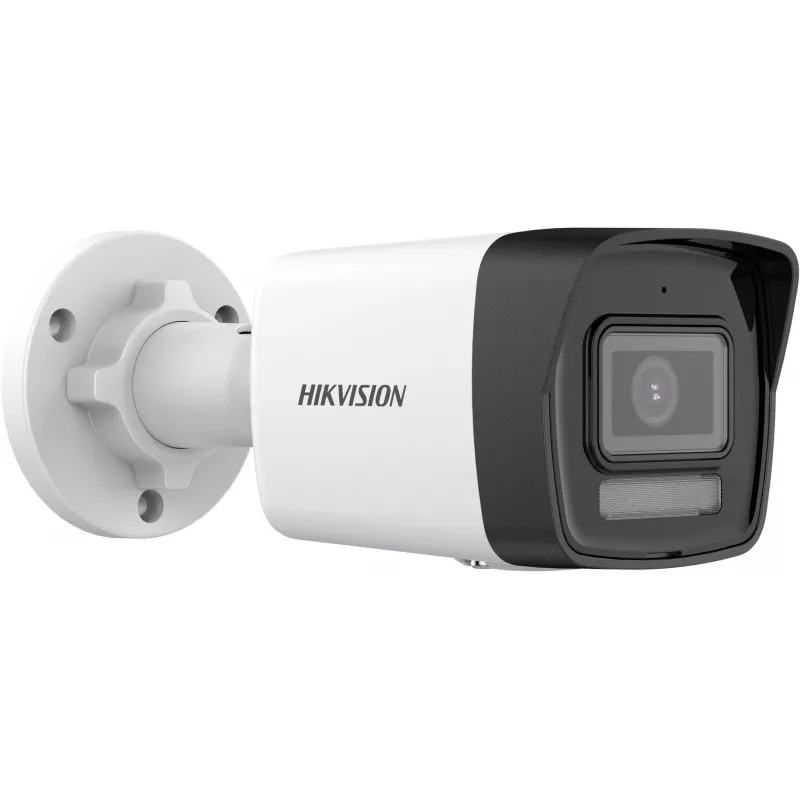

Hikvision DS-2CD1023G2-LIU(2.8MM)PL Smart Hybrid Light IP Camera - 1080p

The Hikvision DS-2CD1023G2-LIU(2.8MM)PL is a high-performance IP camera featuring Smart Hybrid Light technology, delivering clear 1080p video day and night. With a 2.8mm fixed lens and a 105° horizontal field of view, it is ideal for residential and small business surveillance.

Advantages

Smart Hybrid Light combines IR and white light for optimal night vision up to 30 meters. The camera supports H.265+ compression to save bandwidth and storage. Its IP67 rating ensures reliable outdoor operation in harsh weather.

Suitable for

• Home security monitoring
• Small office or retail surveillance
• Outdoor perimeter protection

Key specifications

• Image Sensor: 1/2.9" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080 (2 MP)
• Lens: 2.8 mm fixed focal
• Field of View: 105° horizontal, 55° vertical, 125° diagonal
• Min. Illumination: Color 0.001 Lux @ F1.0, B/W 0 Lux with IR/White Light
• Illuminator: Smart Hybrid Light (IR and White Light), range up to 30 m
• Video Compression: H.265+/H.265/H.264+/H.264
• Audio: Built-in microphone
• Network: 1 RJ45 10/100 M self-adaptive Ethernet port
• Power: 12 VDC ± 25%, PoE (802.3af)
• Power Consumption: Max. 5.5 W
• Operating Conditions: -30 °C to 60 °C, humidity 95% or less
• Ingress Protection: IP67
• Digital Noise Reduction: 3D DNR
• Wide Dynamic Range: Digital WDR
• Day/Night: IR Cut Filter
• Smart Features: Motion detection, video tampering alarm, exception
• Material: Metal and plastic

Recommendations

For best performance, use a PoE switch or injector to simplify installation. Ensure the camera is mounted in a location with a clear view of the area to be monitored.
