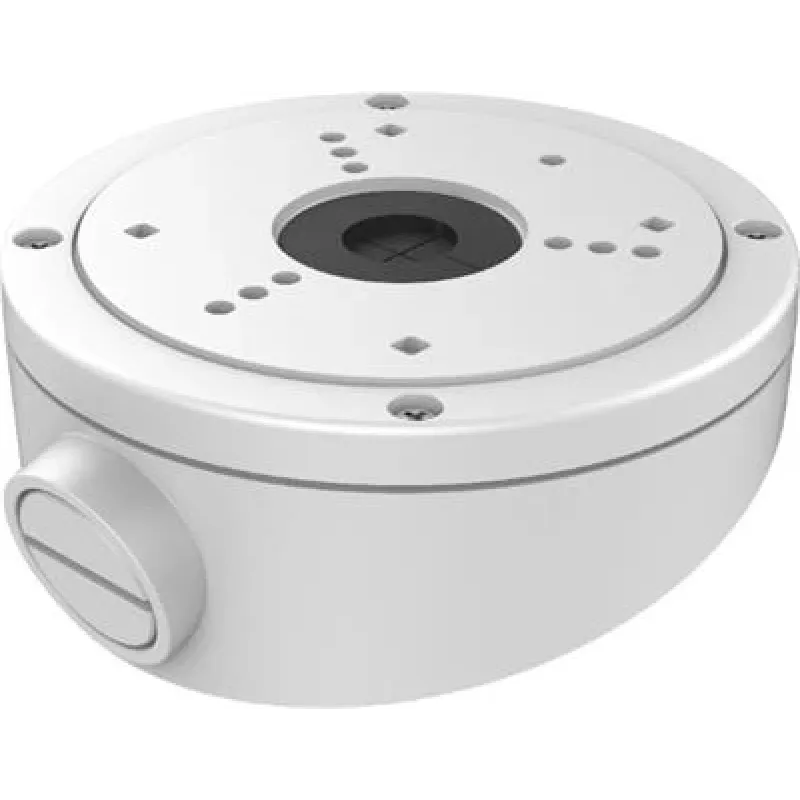

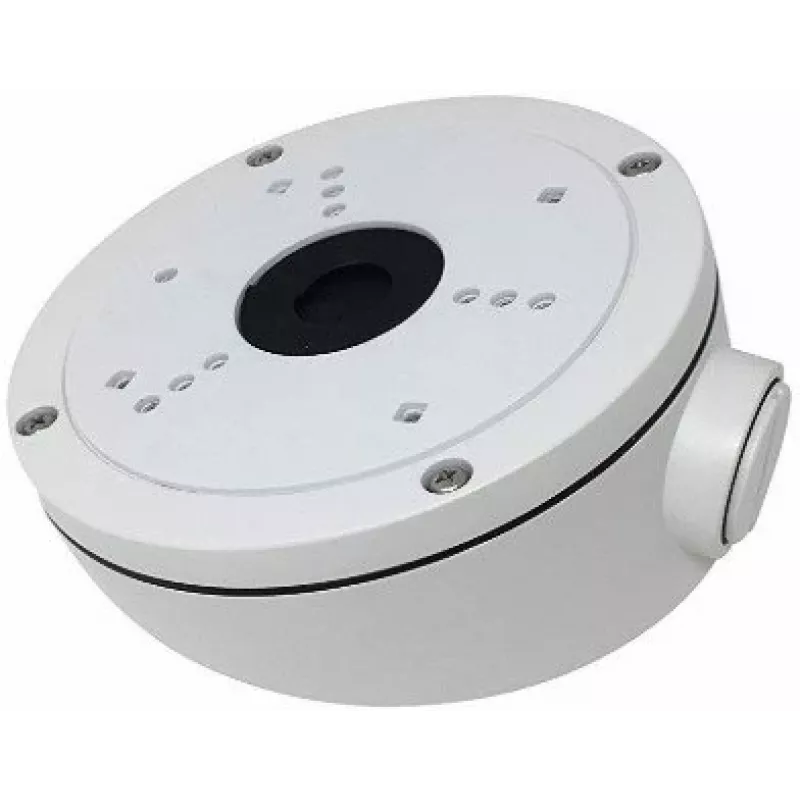

Hikvision DS-1281ZJ-S Junction Box for Dome/Turret Cameras, White, Aluminum Alloy

The Hikvision DS-1281ZJ-S is a high-quality junction box designed for Hikvision IP dome and turret cameras. Made from die-cast aluminum alloy with a white spray-painted finish, it provides a weatherproof connection point for cables, ensuring a clean and secure installation both indoors and outdoors. With a load capacity of 4.5 kg and integrated cable routing, this junction box is an essential accessory for professional surveillance setups.

Advantages

This junction box offers robust construction and easy installation. Its aluminum alloy housing provides durability and corrosion resistance, while the white finish matches Hikvision camera aesthetics. The weatherproof design protects cable connections from moisture and dust, making it suitable for outdoor use when combined with waterproof rubber (not included). Multiple cable entry points allow flexible routing, and the surface mount design with screw holes ensures a stable attachment to walls or ceilings.

Suitable for

• Hikvision dome cameras (e.g., DS-2CD21xx, DS-2CD23xx series)
• Hikvision turret cameras
• Indoor and outdoor surveillance installations
• Professional security system integrators

Key specifications

• Material: Die-cast aluminum alloy
• Color: White (Hik White)
• Dimensions (Diameter x Height): Ø111 mm × 34.5 mm
• Load Capacity: 4.5 kg
• Weight: 472 g
• Operating Temperature: -40°C to 60°C
• Operating Humidity: 0% to 90% (non-condensing)
• Mounting: Wall or ceiling surface mount
• Ingress Protection: Weatherproof design

Recommendations

For outdoor installations, ensure the use of waterproof rubber gaskets (sold separately) to maintain the weatherproof seal. This junction box is ideal for concealing cables and connectors, providing a professional finish and protecting connections from environmental damage.
