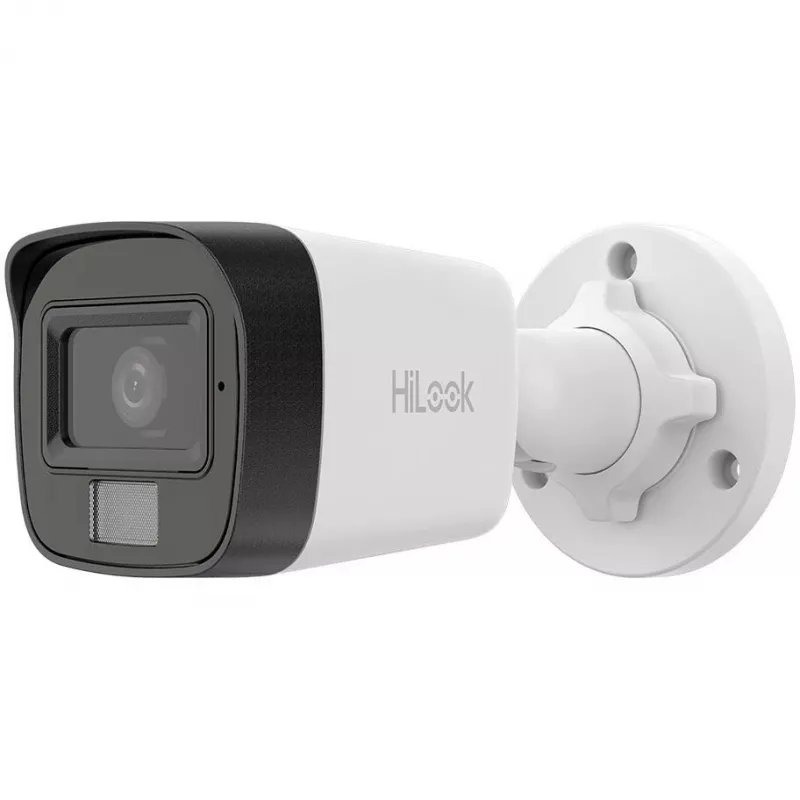

Hikvision 4-in-1 Hilook 8MP TVI-B8M-20DL Tube Camera 2.8mm

The Hikvision 4-in-1 Hilook 8MP TVI-B8M-20DL Tube Camera delivers high-definition surveillance with 8 megapixel resolution and a 2.8mm fixed lens, providing a 102° horizontal field of view. This versatile camera supports TVI, AHD, CVI, and CVBS video outputs, making it compatible with a wide range of DVRs and monitors. With Smart IR technology, it offers night vision up to 20 meters, ensuring clear images even in complete darkness. The IP67-rated housing protects against dust and water, making it suitable for outdoor use in harsh environments.

Advantages

This camera combines high-resolution imaging with flexible connectivity, allowing seamless integration into existing analog or HD-over-coax systems. The 2.8mm lens provides a wide viewing angle, ideal for monitoring large areas such as corridors, entrances, or parking lots. Its durable metal and plastic construction ensures long-lasting performance, while the low power consumption of max 4.9W reduces operating costs.

Suitable for

• Residential and commercial security systems
• Outdoor surveillance in challenging weather conditions
• Retail stores, offices, and warehouses
• Integration with existing analog or HD-TVI DVRs

Key specifications

• 8 MP CMOS sensor (3840 × 2160 resolution)
• 4-in-1 video output (TVI/AHD/CVI/CVBS)
• 2.8mm fixed lens, 102° horizontal FOV
• Smart IR night vision up to 20m
• IP67 weatherproof rating
• 12 VDC power supply (max 4.9W)
• Operating temperature: -40°C to 60°C
• DWDR and 2D DNR for enhanced image quality

Recommendations

For optimal performance, use with a compatible Hikvision DVR supporting 8MP@15fps. Ensure proper cable connections and power supply. The camera is designed for fixed installations; avoid moving or adjusting the lens after mounting.
