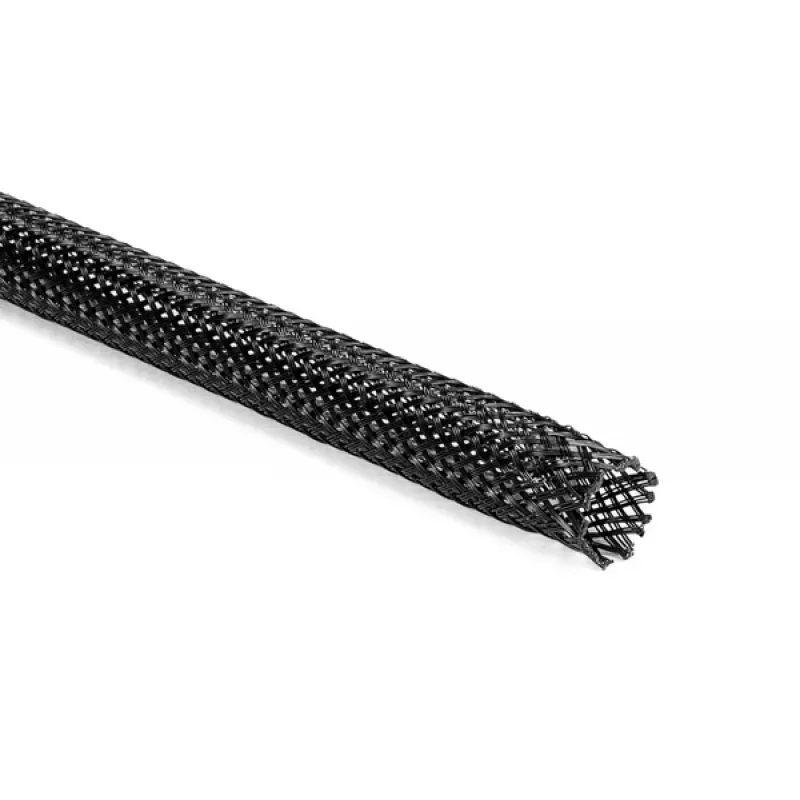

HellermannTyton Helagaine HEGPX40 Braided Sleeve, 40mm Nominal Diameter, Polyester (PET), Black, 50m

The HellermannTyton Helagaine HEGPX40 braided sleeve is a high-quality cable management solution designed for bundling, protection, and insulation of cables and wires. Made from polyester (PET), this halogen-free sleeve offers excellent thermal resistance and mechanical protection. With a nominal diameter of 40 mm and an expansion range of 32 to 70 mm, it accommodates a wide variety of bundle sizes. The black color and untreated surface provide a professional appearance suitable for industrial and commercial applications.

Advantages

This braided sleeve provides outstanding flexibility and expandability, allowing easy installation over existing cable bundles. Its high expansion ratio (32-70 mm) ensures a snug fit for different bundle diameters. The polyester material is halogen-free, making it environmentally friendly and safe for use in confined spaces. With a wide operating temperature range of -50°C to 150°C, it performs reliably in extreme conditions. The UL fire protection standard compliance adds an extra layer of safety.

Suitable for

• Cable bundling and organization in electrical panels, machinery, and automotive applications
• Protection of cables against abrasion, cuts, and environmental factors
• Insulation and strain relief for wire harnesses
• Use in industrial, commercial, and residential installations requiring high-temperature resistance

Key specifications

• Product Type: Braided Sleeve
• Series: Helagaine
• Nominal Diameter: 40 mm
• Min. Bundle Diameter: 32 mm
• Max. Bundle Diameter: 70 mm
• Material: Polyester (PET)
• Material Type: Plastic
• Halogen-free: Yes
• Surface Finish: Untreated
• Color: Black
• Min. Operating Temperature: -50 °C
• Max. Operating Temperature: 150 °C
• Fire Protection Standard: UL
• Length: 50 m

Recommendations

For optimal performance, ensure the sleeve is cut to the required length using sharp scissors or a hot knife to prevent fraying. When installing over connectors, use a larger diameter sleeve or expand the sleeve gently. This product is ideal for applications where flexibility, durability, and thermal resistance are critical.
