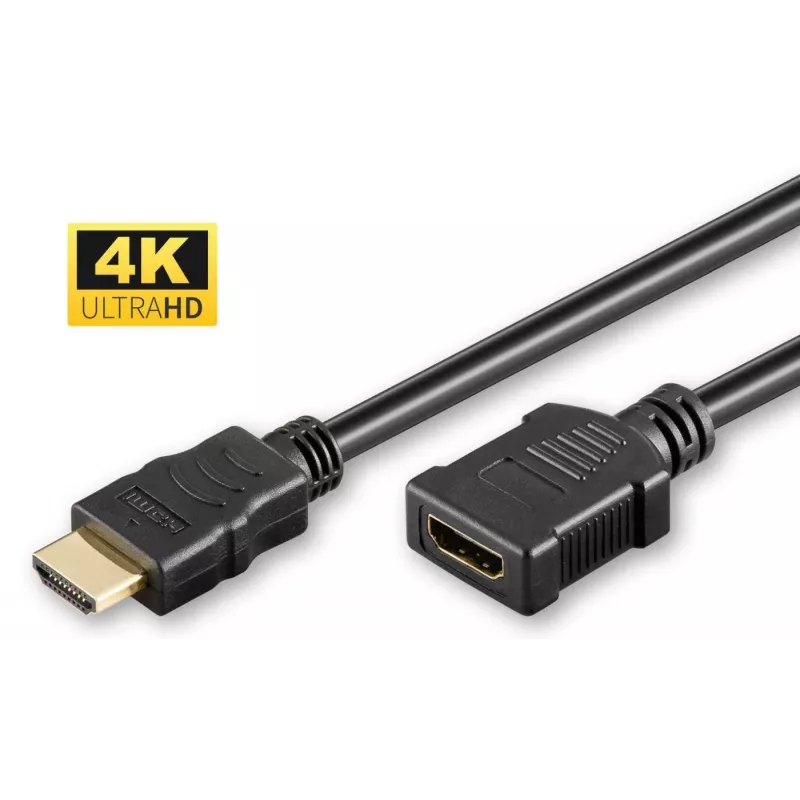

HDMI Extension Cable MicroConnect HDM19191FV1.4 1m

The MicroConnect HDM19191FV1.4 HDMI extension cable (1 m) provides a High Speed HDMI 1.4 connection with a male HDMI Type A connector and a female HDMI Type A connector. It supports data transfer rates up to 10.2 Gbps and resolutions up to 3840 x 2160 (4K) at 30 Hz, including support for 3D, HDCP 2.2, CEC and Audio Return Channel (ARC). The cable has gold-plated contacts and a black jacket for reliable signal quality and a discreet appearance.

Advantages

This HDMI 1.4 extension cable enables extension of existing HDMI installations without signal loss while maintaining high-speed digital audio and video transmission. Gold-plated contacts improve corrosion resistance and signal contact, and the standard Type A connectors ensure compatibility with most HDMI devices. The cable supports key HDMI features such as ARC, CEC and 3D for flexible AV setups.

Suitable for

• Extending the reach between a TV and a set-top box or game console
• Connecting a monitor or projector when a longer cable is required
• Home entertainment systems using ARC and CEC functions

Key specifications

• Standard: HDMI 1.4
• Data rate: up to 10.2 Gbps
• Maximum resolution: 3840 x 2160 @ 30 Hz (4K)
• Connectors: HDMI Type A male to HDMI Type A female
• Features: HDCP 2.2, CEC, ARC, 3D support
• Length: 1 m
• Colour: Black
• Weight: 0.058 kg

How to use

Insert the male HDMI Type A connector into the source device (for example a Blu-ray player, game console or set-top box) and plug the female HDMI Type A connector to the existing HDMI cable or directly to the display device as required. Ensure connectors are fully seated and secure to maintain signal integrity. The extension cable is bidirectional in terms of physical connection but does not change source/display roles.

Recommendations

For best performance, avoid sharp bends and place the cable away from large sources of electrical interference. Use the extension to bridge short additional distances; for very long runs, consider active or fiber HDMI solutions.
