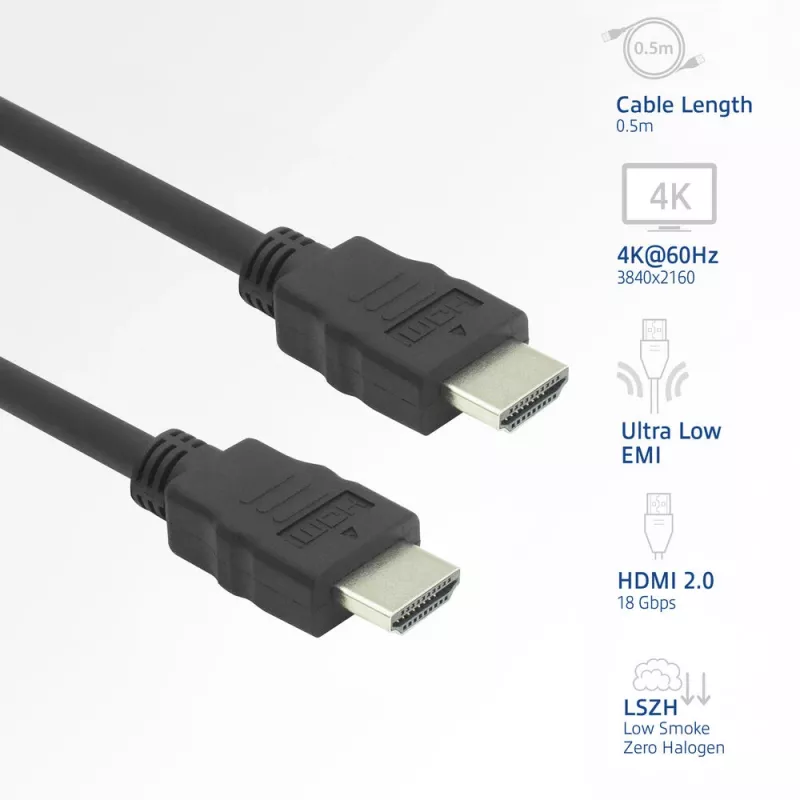

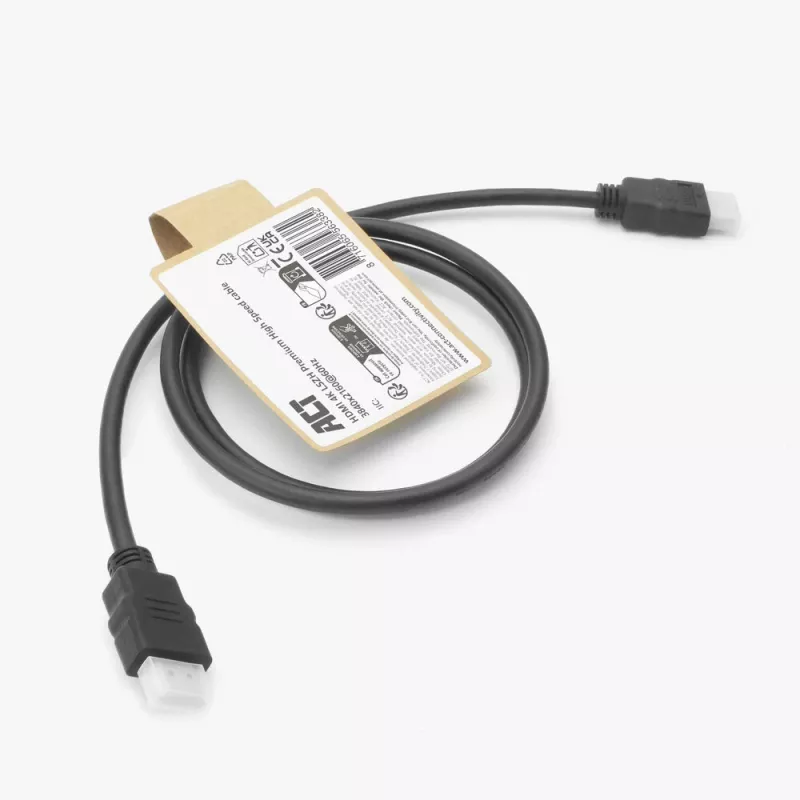

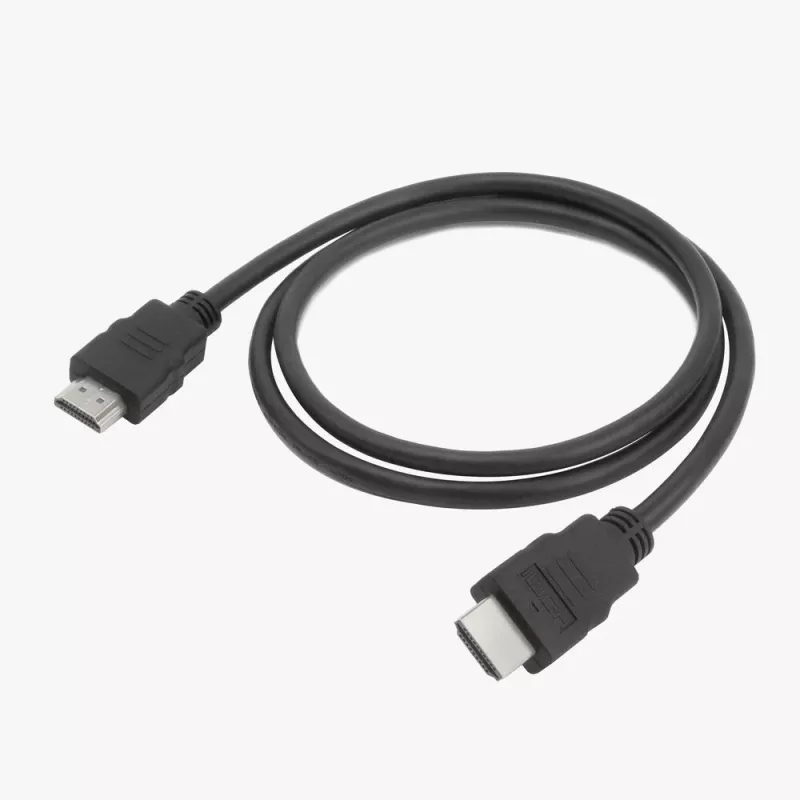

HDMI cable ACT AK3870 0.5 m — HDMI Type A male to HDMI Type A male, HDMI 2.0, 18 Gbit/s, ARC, gold-plated contacts, black

The ACT HDMI LSZH Premium High Speed v2.0 cables ensure crystal clear audio and video throughput with a maximum resolution of 4K@60Hz. With full copper conductors and gold-plated connectors, the cable guarantees a reliable and high-quality transmission. The Low Smoke Zero Halogen (LSZH) cable jacket reduces the risk of high concentrations of toxic gases in case of cable damage due to fire or short circuit. Additionally, the cable’s thin plate shielding reduces RFI/EMI, making it ideal for sensitive applications.

Resolution of 4K @ 60Hz
The HDMI cable supports a resolution of 3840x2160 @ 60Hz. Furthermore, the cable supports High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy, HDCP 2.2, EDID, Multi-channel audio, Dolby True HD, and DTS-HD Master Audio.

Thin plate shielding for low EMI/RFI
An additional thin plate is used to provide extra shielding to reduce Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI).

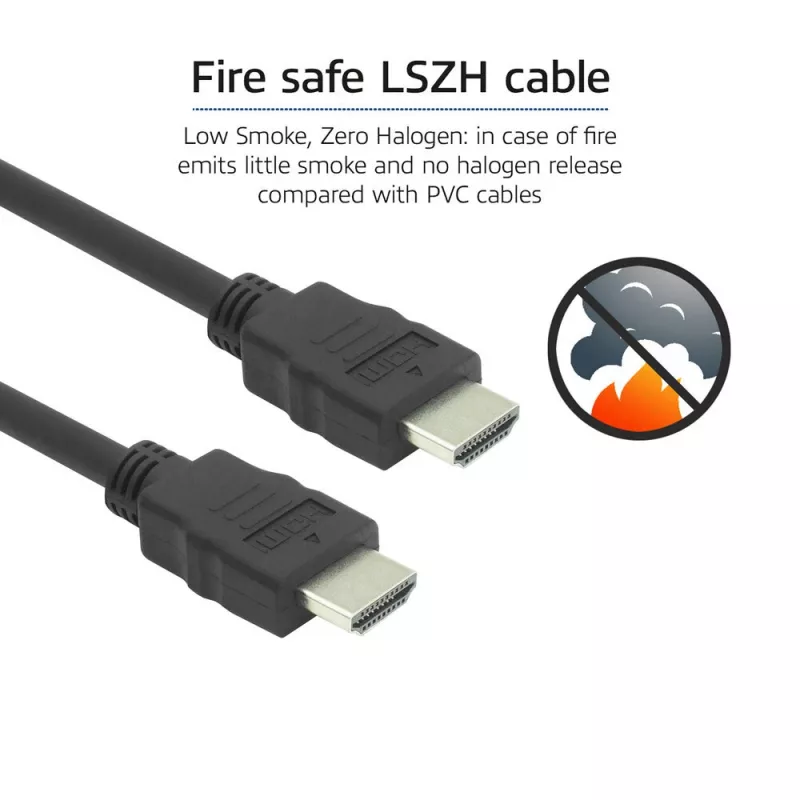

LSZH cable jacket
The cable has a LSZH (Low Smoke Zero Halogen) cable jacket that reduces the risk of high concentrations of toxic gases in case the cable is damaged due to fire or short circuit.

User scenarios
Medical applications: High-resolution imaging is critical in radiology for detailed diagnosis. The HDMI LSZH cable is used to connect imaging equipment to large displays. The low RFI/EMI minimizes interference with sensitive medical devices.

Nautical applications: The vessel's bridge uses high-definition displays for navigation, radar, and other systems.

Data center applications: Data centers require high-resolution displays for monitoring system performance and security. The LSZH jacket ensures safety by reducing toxic gas emissions in case of a fire.

Educational applications in lecture halls and auditoriums: Provides clear and detailed visuals for large audiences.

Corporate applications in meeting rooms and conference centers: Executive meeting rooms and conference centers require high-definition displays for video conferencing, presentations, and collaborative work.

ACT AK3870. Cable length: 0.5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product colour: Black

How to use

Connect one HDMI Type A male end to the HDMI output of your source device (for example a Blu-ray player, game console or set-top box) and the other end to the HDMI input of your display or AV receiver. Ensure both devices are set to the appropriate HDMI input/output and enable HDR or audio formats in device settings if required. For best performance keep the cable run short and avoid tight bends that may stress the cable.

Recommendations

Use the ACT AK3870 for short, high-quality HDMI links where 4K@60Hz, HDR and low-EMI operation are needed and where LSZH cabling is preferred for safety. Avoid using this cable for long runs without an active repeater or an HDMI 2.1 application requiring higher bandwidth.
