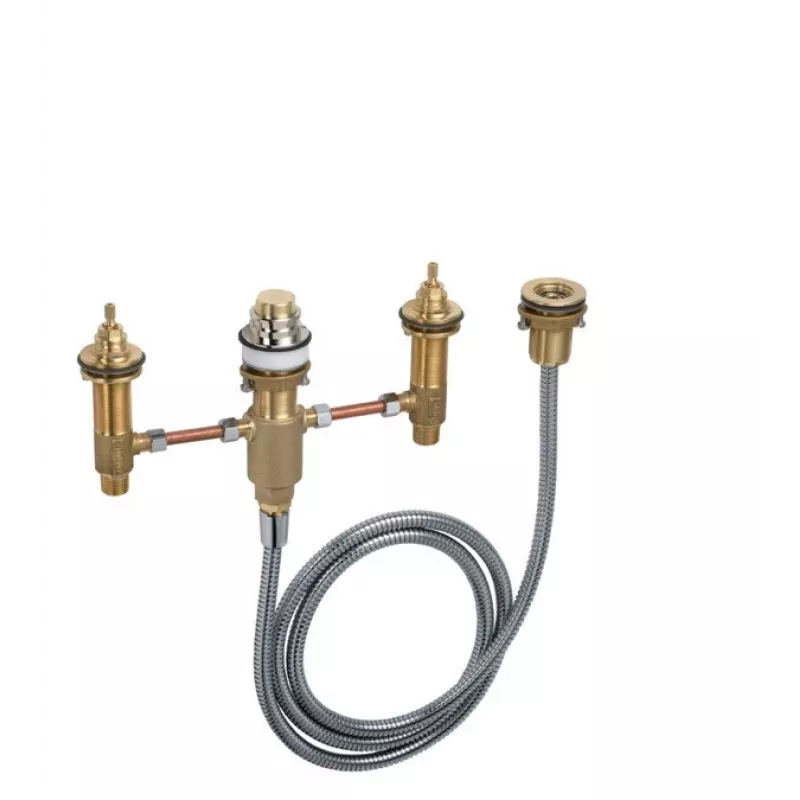

Hansgrohe Bath Mixer HG 4-Hole Basic Set Concealed Exposed

The Hansgrohe Bath Mixer HG 4-Hole Basic Set Concealed Exposed is a concealed installation body engineered for 4-hole rim-mounted bath mixers, providing a robust and flexible foundation for custom bathroom configurations. Its core strength lies in the integrated Hansgrohe iBox universal technology, which simplifies installation and ensures compatibility with a wide range of finish sets.

Advantages

This basic set offers exceptional installation flexibility, allowing you to select your preferred finish set separately to match your bathroom design. The concealed design saves space and delivers a clean, modern aesthetic. Integrated sound insulation and waterproofing enhance comfort and long-term reliability, while the residual water drainage prevents standing water and potential damage.

Suitable for

• 4-hole rim-mounted bath mixers
• Concealed installation in bathrooms
• Use with Hansgrohe finish sets

Key specifications

• Product Type: Basic Set / Concealed Body
• Installation Type: Concealed / Flush-mounted
• Number of Holes: 4
• Connection Size: G ½
• Material: Brass (connection block), Plastic (housing)
• Installation Depth: 100-120 mm
• Sound Insulation: Yes
• Waterproofing: Yes, with sealing flange
• Technology: Hansgrohe iBox universal
• Integrated Drainage: Yes, for residual water

Recommendations

For a complete installation, pair this basic set with a compatible Hansgrohe finish set, spout, and hand shower. Ensure proper installation depth and sealing to guarantee optimal performance and longevity.
