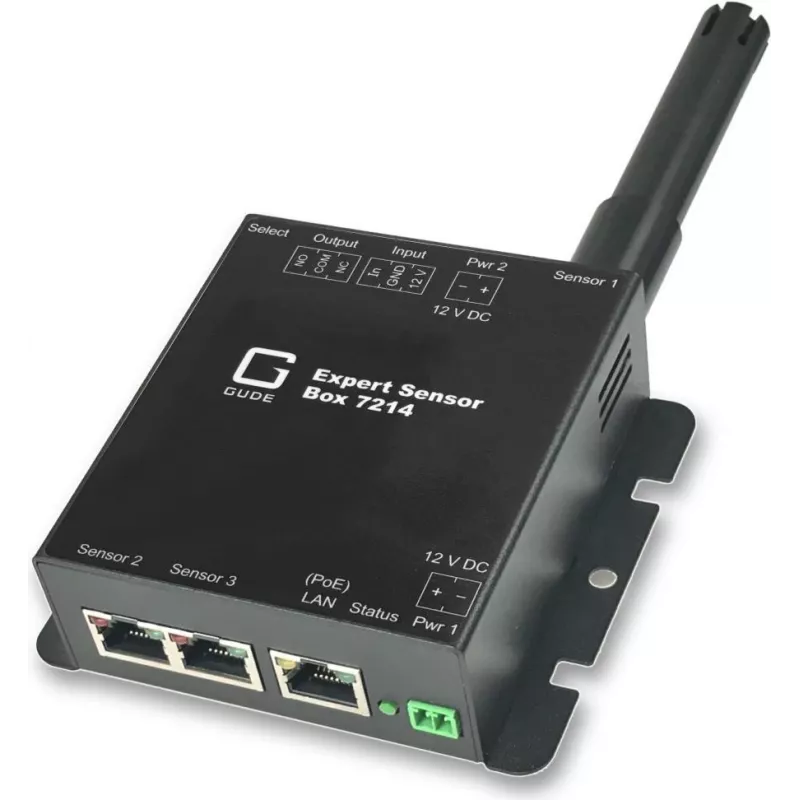

GÜDE Gude Expert Sensor Box 7214-2 - Expansion Sensor Box with 2 Sensor Ports, 1 Relay Output, 1 IO Input

The Gude Expert Sensor Box 7214-2 is a versatile expansion sensor box designed for environmental monitoring in data centers, server rooms, and building automation systems. It seamlessly integrates with Didactum Monitoring Systems (500/600/700/800 series) to extend sensor capabilities.

Advantages

Expand your monitoring system with additional analog sensor ports and digital I/O. The metal housing ensures durability, and wall-mountable design simplifies installation. LED indicators provide quick status overview.

Suitable for

• Data center environmental monitoring
• Server room temperature and humidity tracking
• Building automation and security systems
• Remote site monitoring

Key specifications

• Product Type: Expansion Sensor Box
• Brand Compatibility: Didactum Monitoring Systems
• Number of Analog Sensor Ports: 2 (RJ11)
• Digital Inputs: 1 (Dry Contact)
• Relay Outputs: 1 (Potential-free NO/NC)
• Connection to Main Unit: RJ45 via standard patch cable
• Power Supply: Powered by main Didactum monitoring unit
• Housing Material: Metal
• Mounting: Wall mountable
• Operating Temperature: 0°C to +50°C
• Operating Humidity: 5% to 95% RH (non-condensing)
• LED Indicators: Power, Status

Recommendations

For optimal performance, use with Didactum monitoring units and compatible analog sensors (temperature, humidity, airflow, etc.). Ensure proper ventilation and avoid condensation.
