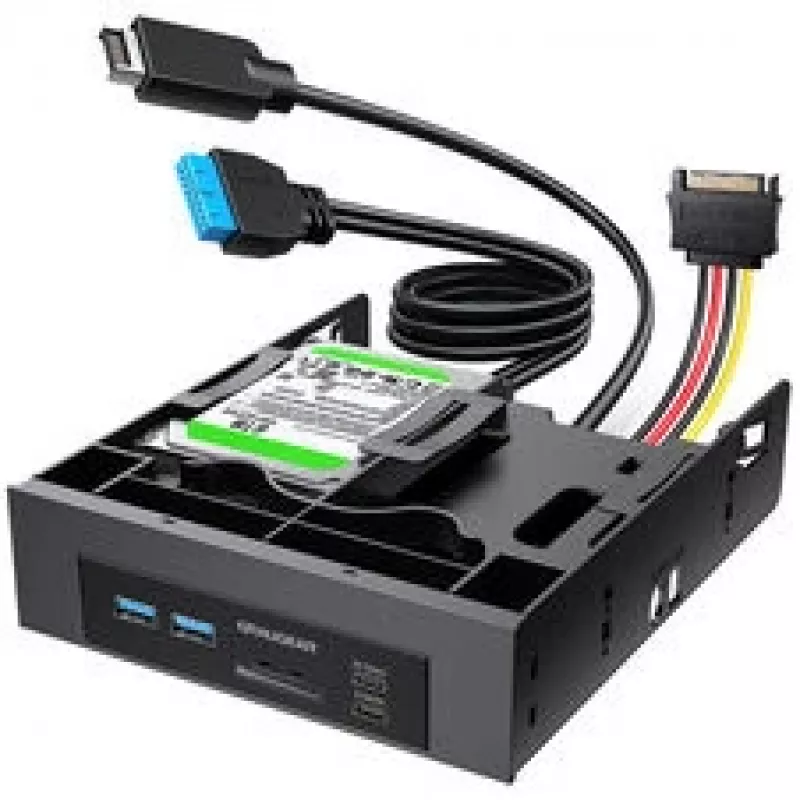

GRAUGEAR USB Hub + Card Reader Front Panel with 2.5 inch SSD Frame, Black

The GRAUGEAR USB Hub + Card Reader Front Panel is a versatile 3.5-inch drive bay accessory that adds two USB 3.0 ports, a multi-format card reader, and a 2.5-inch SATA SSD/HDD mounting frame to your PC. Designed for easy internal installation, it provides convenient front-access connectivity and storage expansion.

Advantages

This front panel combines essential I/O and storage expansion in one unit, saving space and reducing cable clutter. The USB 3.0 ports offer data transfer speeds up to 5 Gbps, while the card reader supports a wide range of memory cards including SD, microSD, CompactFlash, Memory Stick, and M2. The integrated 2.5-inch drive bay allows you to install an SSD or HDD directly in the front panel, making it ideal for system builders and upgraders.

Suitable for

• Desktop PC users needing additional front USB ports
• Photographers and videographers requiring quick memory card access
• Users looking to add a 2.5-inch SSD/HDD without occupying a separate drive bay
• System builders seeking a clean, integrated front panel solution

Key specifications

• Product Type: Front Panel Hub / Card Reader / Drive Bay
• Installation Bay Size: 3.5-inch
• USB Standard: USB 3.0 (USB 3.2 Gen 1)
• USB Ports: 2x USB 3.0 Type-A
• Internal Connection: 1x USB 3.0 20-pin Header
• Max Data Transfer Rate: 5 Gbps
• Card Reader Slots: 5 (SD/MMC, MicroSD/TF, CF, MS, M2)
• Supported Card Formats: SD, SDHC, SDXC, MMC, RS-MMC, MicroSD, MicroSDHC, MicroSDXC, CF I, CF II, MD, MS, MS Pro, MS Duo, MS Pro Duo, M2
• Supported Drive Type: 1x 2.5" SATA SSD/HDD
• Material: Metal (frame), Plastic (front panel)
• Color: Black
• OS Compatibility: Windows, macOS, Linux
• Power Source: Bus-powered (via USB 3.0 header)
• LED Indicator: Yes (Activity)
• Internal USB Cable Length: Approx. 60 cm

Recommendations

For optimal performance, ensure your motherboard has a free USB 3.0 20-pin header. The card reader supports most common memory card formats; for high-speed cards, use the USB 3.0 ports for faster transfers.
