GoodConnections Fiber Optic Patch Cable Duplex OM3 Multimode 50/125 SC/SC 15m Aqua LSZH

The GoodConnections LW-815SC3 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With duplex OM3 multimode fiber, 50/125 µm core/cladding, and SC to SC connectors, this 15-meter cable supports 10 Gbps up to 300m and is ideal for data centers, LAN, SAN, and high-speed Ethernet applications.

Advantages

Optimized for 10/40/100 Gigabit Ethernet, this cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB). The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the aqua color enables easy identification. Compliant with TIA/EIA-568-C.3, ISO/IEC 11801, and EN 50173 standards.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• 10/40/100 Gigabit Ethernet links

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Core/Cladding: 50/125 µm
• Number of Fibers: 2 (Duplex)
• Connectors: SC to SC
• Length: 15 m
• Jacket Color: Aqua
• Jacket Material: LSZH
• Max Data Rate: 10 Gbps (850nm), 40/100 Gbps (1000nm)
• Insertion Loss: <0.3 dB
• Return Loss: >30 dB

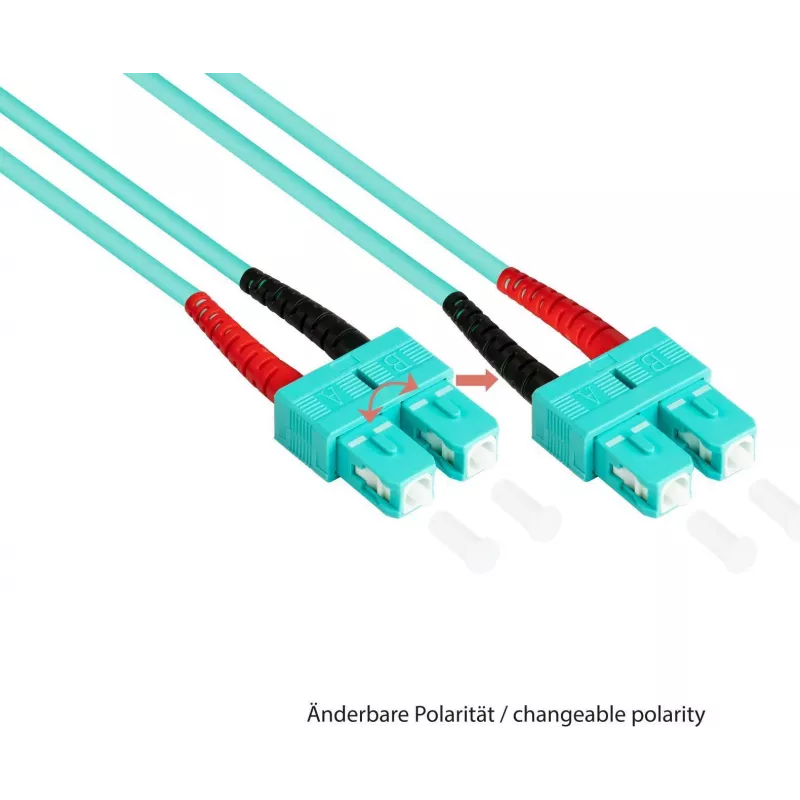

• Polarity: A-B (Crossed)
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure proper handling of fiber connectors to avoid contamination.
