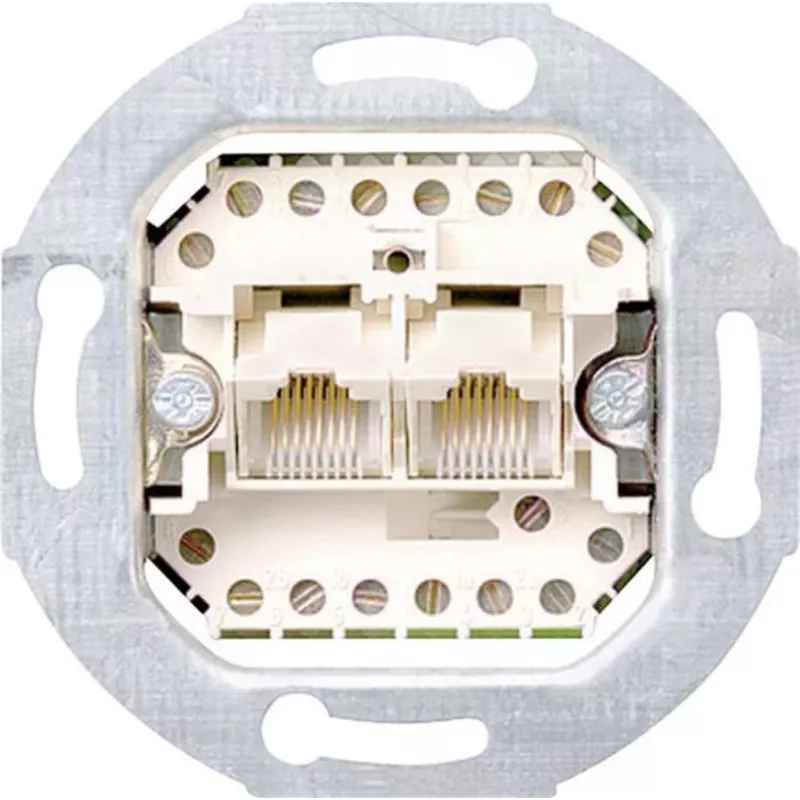

Gira Data Socket Insert UAE/IAE/ISDN Standard 55, E2, Event Klar, Event, Event Opak, Esprit, ClassiX, System 55 019000

This data socket insert from Gira stands out by supporting UAE, IAE, and ISDN connections in a single flush-mounted module, making it a flexible choice for mixed telecommunication and data installations across multiple Gira design lines.

Highlights

• Compatible with UAE, IAE, and ISDN socket types
• LSA-Plus insulation displacement connectors for reliable, tool-free termination
• Fully shielded for stable data transmission up to Category 5
• Halogen-free thermoplastic construction
• Fits Gira System 55, E2, Event, Esprit, ClassiX, S-Color, and F100 ranges

In daily use

The insert mounts flush into standard wall boxes and requires a matching Gira central plate (not included) to complete the installation. Its straight cable entry and 16 terminals (2 x 8-pin) support structured cabling according to TIA/EIA 568A/B. The neutral colour blends with various cover designs, while the IP20 rating suits indoor environments.

Full specifications

• Product type: Data socket insert
• Socket compatibility: UAE, IAE, ISDN
• Connection technology: LSA-Plus (IDC)
• Number of terminals: 2 x 8-pin (16 total)
• Shielding: Yes, fully shielded
• Data transmission category: Up to Cat.5
• Mounting type: Flush-mounted
• Compatible design lines: System 55, E2, Event, Esprit, ClassiX, S-Color, F100
• Material: Thermoplastic
• Halogen-free: Yes
• Protection class: IP20
• Application: Telecommunication and data networks
• Required accessory: Gira UAE/IAE/ISDN central plate
• Wiring standard: TIA/EIA 568A/B compatible
• Cable entry: Straight
• Colour: Neutral
• Manufacturer series: System 55

Final note

For a complete socket, pair this insert with a Gira central plate from the matching design line.
