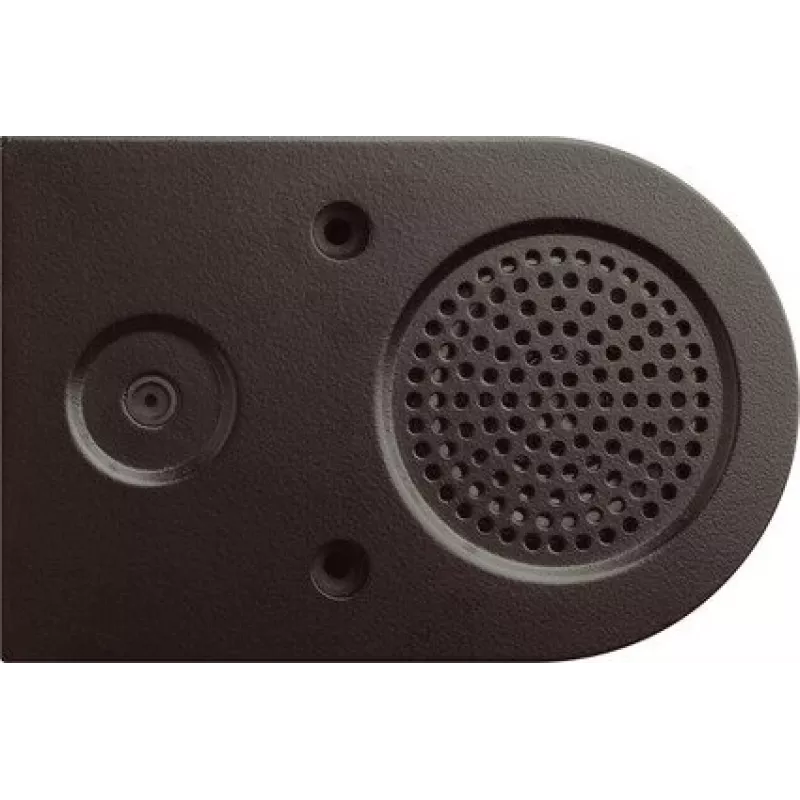

Gira 125800 Intercom System Accessory Speaker Module

In a Gira door communication system, the speaker module 125800 provides clear acoustic output at the door station. Installers integrate this module into flush-mounted or surface-mounted door stations to enable hands-free speech from the outdoor unit to the indoor handset. The module connects to the 2-wire bus and offers continuously adjustable speech volume for optimal intelligibility.

Key specifications

• Product type: Speaker module
• System compatibility: Gira door communication system
• Bus system: 2-wire bus technology
• Function: Acoustic output (speech) for door stations
• Volume adjustment: Continuously adjustable speech volume
• Hands-free function: Yes
• Current consumption: Approx. 10 mA from bus
• Material: High-quality plastic (PC/ABS)
• Color: Black
• Operating temperature range: -25 °C to +70 °C
• Protection class (module): IP20
• Combination options: Can be combined with Gira microphone module (e.g., 125700)
• Number of connection wires: 2 (bus connection)

Why choose it

This module delivers high-quality speech reproduction, ensuring that visitors are heard clearly. Its modular design allows flexible integration into various Gira door station frames and housings. The continuously adjustable volume lets you tailor the audio level to the installation environment.

Ideal use cases

• Outdoor door stations in residential buildings
• Flush-mounted or surface-mounted Gira door stations
• Systems requiring hands-free communication at the entrance

Good to know

The module is an internal component and must be housed appropriately for outdoor use. It connects directly to the Gira bus and works with the Gira microphone module 125700 for full duplex communication.
