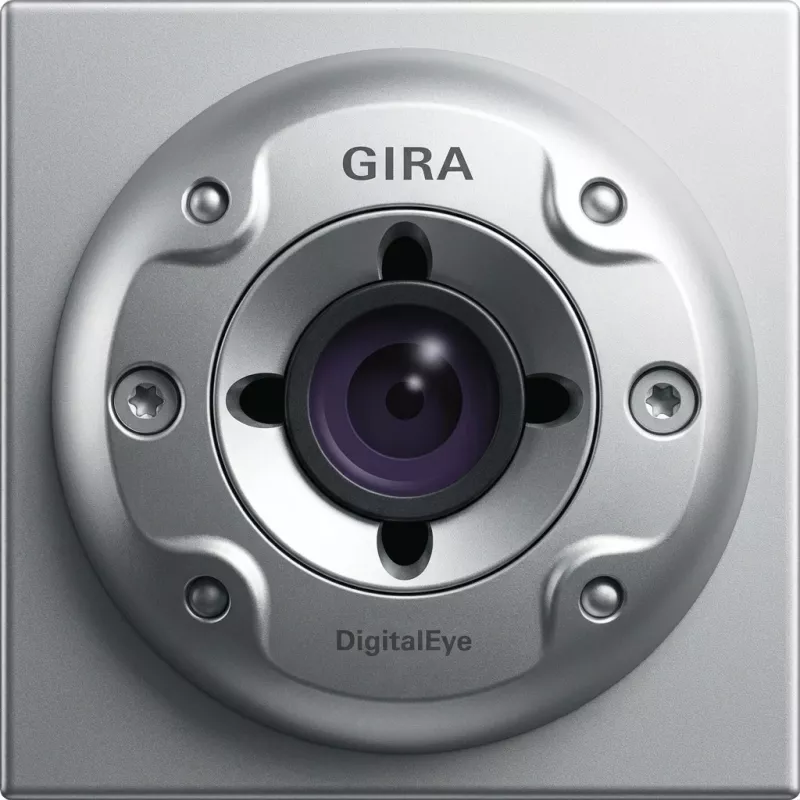

Camera module GIRA 126565 for intercom systems, aluminium finish

GIRA 126565 camera module for intercom systems in an aluminium finish. Designed as an accessory for compatible GIRA intercom panels, it provides video capture for visitor identification and security monitoring. The module is intended for installation in a conventional flush-mounted device box and fits the frames of the Gira TX_44 design line. Its modular design enables straightforward installation and future expandability while integrating signal transmission and power via a reverse-polarity-protected, short-circuit-proof 2-wire bus.

Advantages

The camera module supports extension of door stations with a colour camera that switches automatically between day and night modes. LEDs provide steady close-range illumination in night mode and the wide-angle lens combined with a manual swivel range of 20° horizontally and vertically results in a wide field of view of the entry area. The camera offers automatic background lighting compensation, automatic white balance, automatic gain control (AGC), and an integrated temperature-dependent heating element. The cover plate is sprayed-water proof and the camera cover plate is made of shock-resistant plastic and can be easily replaced if damaged.

Suitable for

Key specifications

How to use

Install the camera module into a standard flush-mounted device box and secure it within the frame of the Gira TX_44 design line. Connect the audio and video components to the system using the 2-wire bus, observing polarity protection and short-circuit protection provided by the bus. Adjust the camera orientation manually by swivelling up to 20° horizontally and vertically to achieve the desired field of view. The module operates with automatic image adjustments (white balance, gain, background compensation) and includes heating for cold conditions, so no manual image tuning is required for normal operation.

Recommendations

For reliable performance, mount the module at the recommended entry height for optimal visitor framing, protect the surrounding installation from direct spray or sustained water exposure despite the sprayed-water proof cover, and replace a damaged cover plate with an original GIRA spare part to maintain shock resistance and fit.
