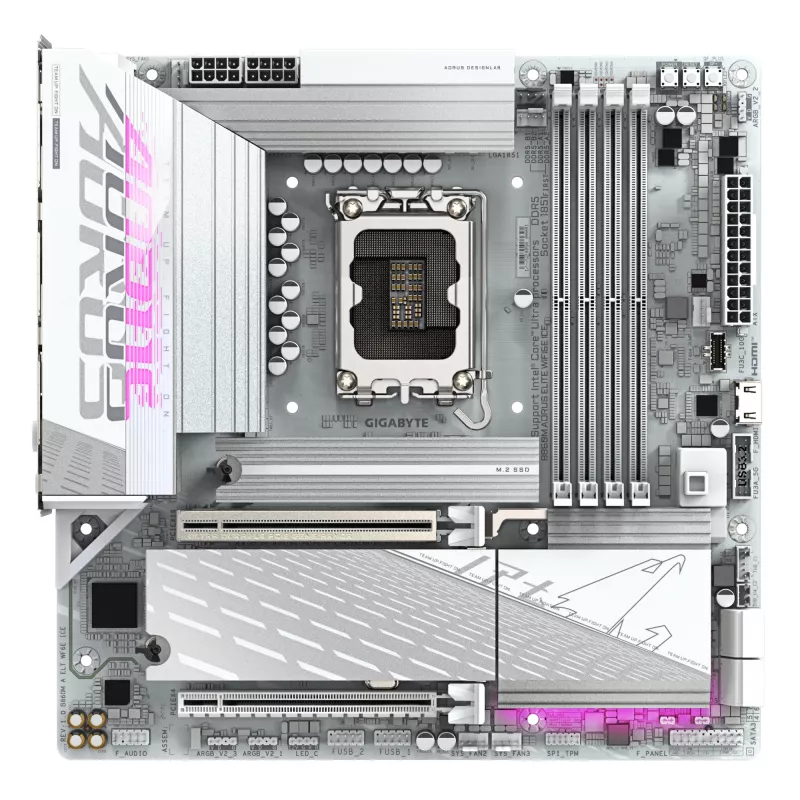

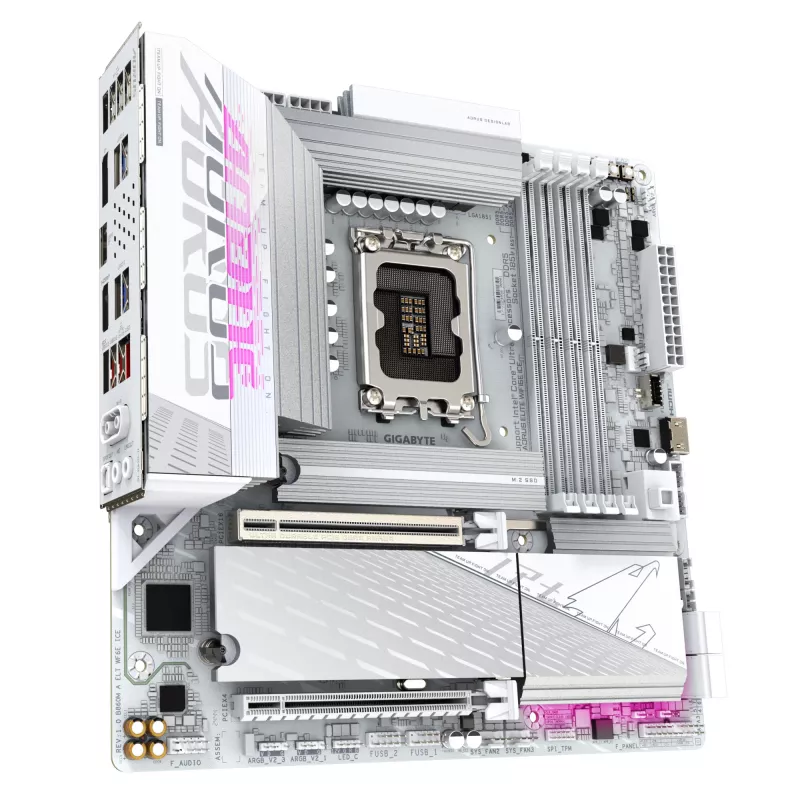

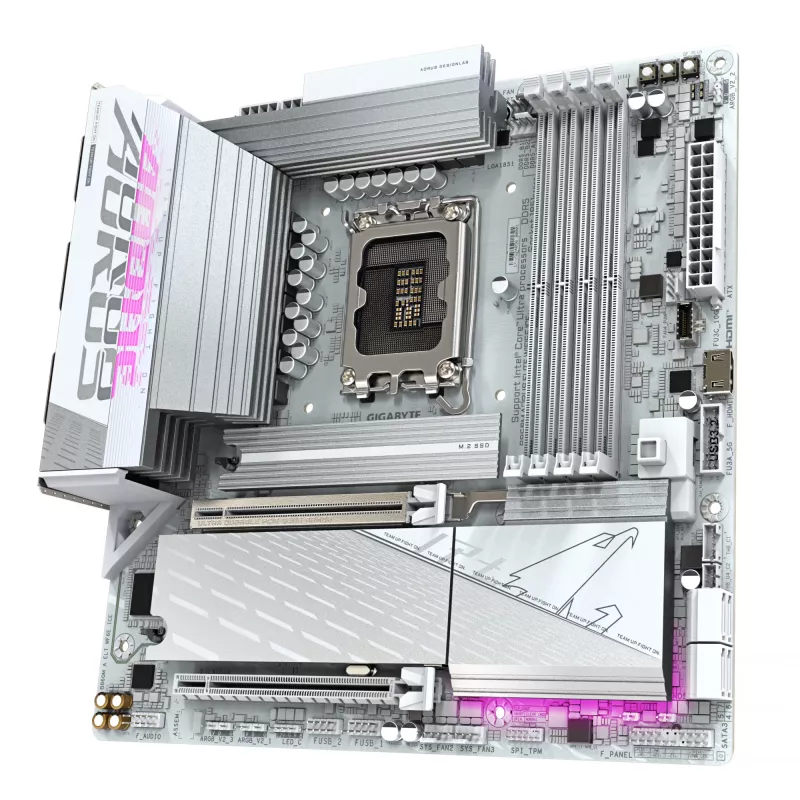

Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX

Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
36 mo.
Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
Motherboard GIGABYTE B860M AORUS ELITE WF6E ICE, Intel Core Ultra, LGA 1851, Micro ATX
R3,935
The GIGABYTE B860M AORUS ELITE WF6E ICE is a Micro ATX motherboard designed for Intel Core Ultra processors with the LGA 1851 (Socket V1). It uses the Intel B860 chipset and supports up to 256 GB of DDR5 memory across four slots, high-frequency RAM up to 9200 MHz, multiple M.2 storage options includ... Read More
Stock 2 Code 105720 Brand GIGABYTE Model B860M A ELT WF6E ICE Warranty 3 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE B860M AORUS ELITE WF6E ICE is a Micro ATX motherboard designed for Intel Core Ultra processors with the LGA 1851 (Socket V1). It uses the Intel B860 chipset and supports up to 256 GB of DDR5 memory across four slots, high-frequency RAM up to 9200 MHz, multiple M.2 storage options including one PCIe 5.0 and two PCIe 4.0 slots, and network connectivity with 2.5GbE LAN and Wi‑Fi 6E.

Advantages

This motherboard features a robust 12+1+2+1 VRM phase design for stable power delivery to high-performance Intel Core Ultra CPUs. The combination of PCIe 5.0 and PCIe 4.0 M.2 slots enables fast NVMe storage configurations while support for RAID provides flexible storage setups. Compact Micro ATX form factor provides a balance between expandability and space efficiency, and integrated 2.5GbE LAN with Wi‑Fi 6E ensures modern wired and wireless networking options.

Suitable for

  • Gaming PC builds requiring high CPU and memory performance
  • Content creation and video editing systems with fast storage needs
  • Compact workstations where Micro ATX form factor is preferred
  • Systems requiring modern networking: 2.5GbE and Wi‑Fi 6E

Key specifications

  • Form factor: Micro ATX
  • Chipset: Intel B860
  • Socket: LGA 1851 (Socket V1) for Intel Core Ultra
  • Memory: 4 slots, DDR5, up to 256 GB, up to 9200 MHz
  • M.2 slots: 1 × PCIe 5.0, 2 × PCIe 4.0
  • LAN: 2.5GbE; Wireless: Wi‑Fi 6E
  • VRM design: 12+1+2+1 phases
  • Supported RAID configurations
  • Weight: 1.7 kg

How to use

Install the motherboard into a compatible Micro ATX case, fit an Intel Core Ultra CPU into the LGA 1851 socket and attach a compatible CPU cooler. Populate up to four DDR5 memory modules according to the motherboard manual to enable dual- or quad-channel operation. Mount NVMe drives into the available M.2 slots and connect SATA devices if required. Connect PSU power headers, front-panel connectors and expansion cards as needed, then configure BIOS settings for memory frequency, storage RAID, and boot order before installing the operating system.

Recommendations

For optimal stability and performance, use a high-quality power supply and an adequate CPU cooler. Populate memory in matched DDR5 kits and enable XMP/EXPO or equivalent profiles in BIOS to reach advertised memory speeds. When using PCIe 5.0 NVMe storage, ensure proper cooling for the drives and update the motherboard BIOS to the latest version for improved compatibility with Intel Core Ultra processors.

Key Highlights
  • Twin Hybrid Digital 12+1+2+1 Phases 60A DrMOS VRM
  • Dual Channel DDR5:4*DIMMs
  • PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
  • EZ-Latch Plus for M.2 SSDs installation
  • Fully Covered MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch Click
  • Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
  • 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
  • Q-Flash Plus
  • Intel LGA 1851 (Socket V1) Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
  • PC micro ATX Intel B860 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2580
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
25110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper
Yes
Compatible processor series
Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Component for
PC
Cooling type
Passive
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
Digital audio optical out
1
DirectX version
12.0
DisplayPort version
2.1
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
Intel B860
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Number of battery cells
1
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
7
Number of water pump connectors
2
Package depth
268 mm
Package height
68 mm
Package weight
1.9 kg
Package width
270 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Product colour
White
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
9200 MHz
Supported memory clock speeds
5600,6400,9200 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1851
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB4 Gen 2x2 ports quantity
1
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
1.7 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Width
244 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Intel Wi-Fi 6E AX211

Manual

Open Manual

Leaflet

Open Leaflet
