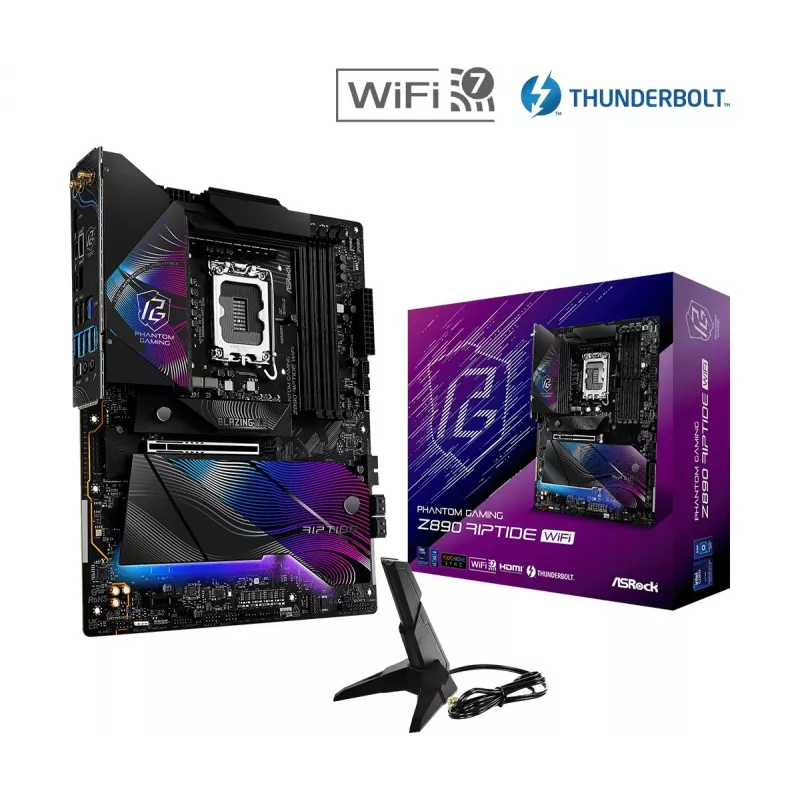

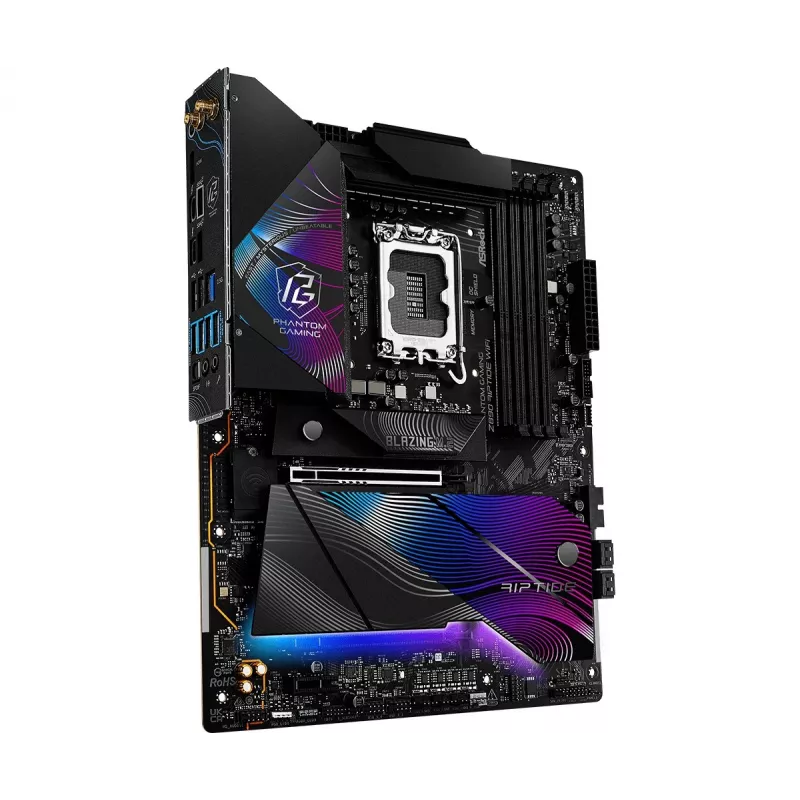

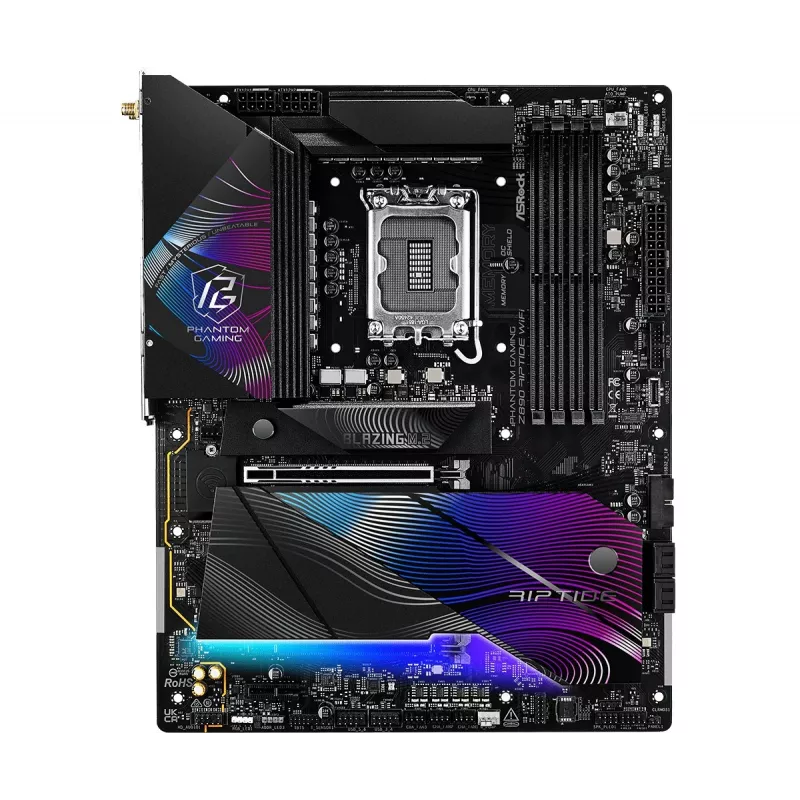

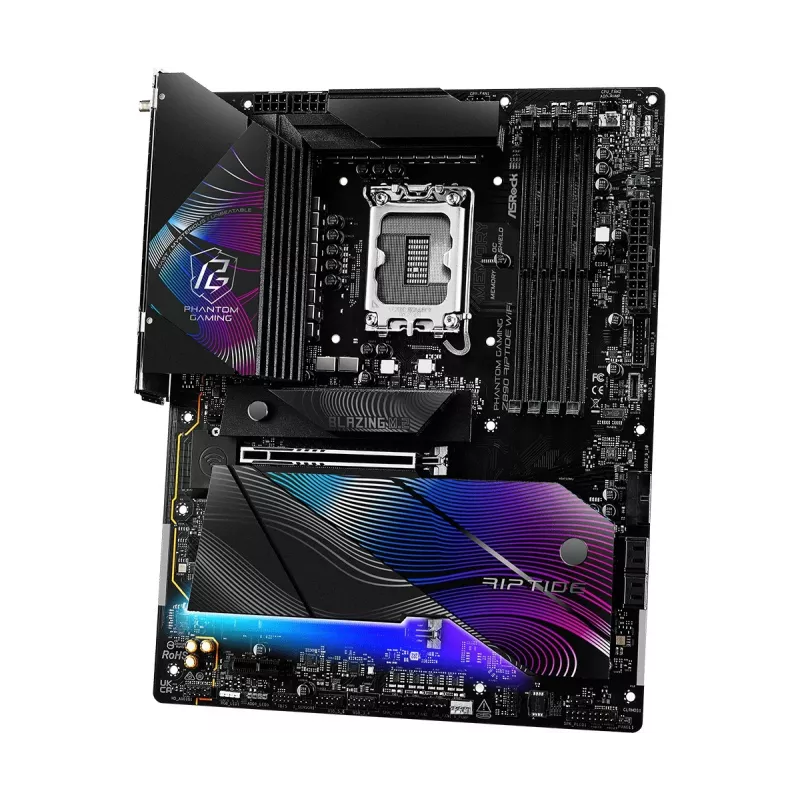

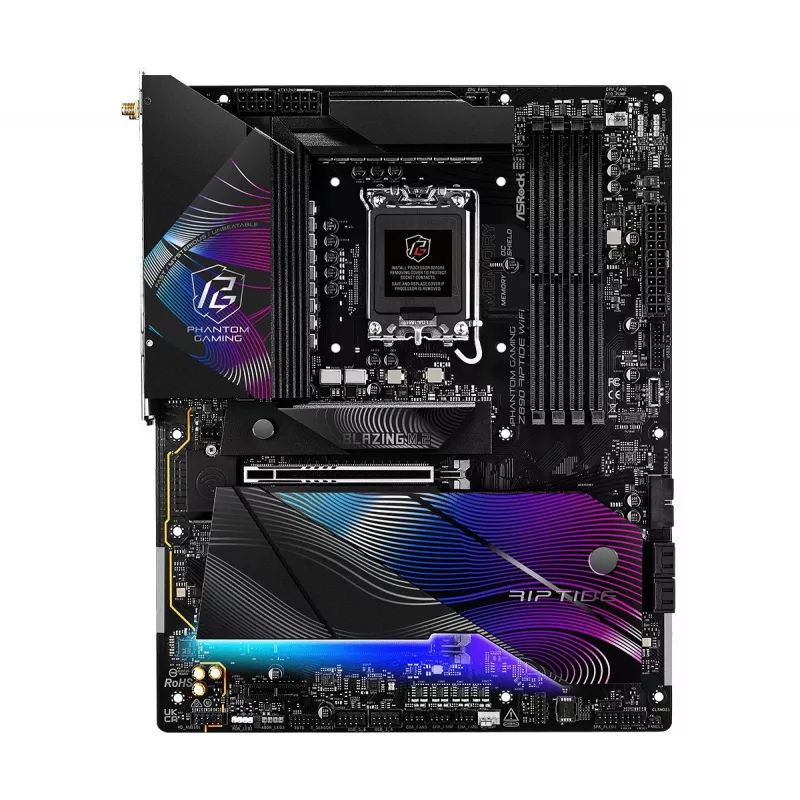

Motherboard ASRock Z890 Riptide WiFi — Intel Z890, LGA1851, ATX, DDR5, 4 DIMM, Wi‑Fi 7, 2.5Gb LAN, Thunderbolt 4

Phantom Gaming motherboard delivers a gamer-oriented platform with optimized power delivery, advanced cooling, and the latest connectivity standards. It combines a robust VRM layout with 20K capacitors, Dr.MOS Smart Power Stage (SPS), Hi-Density power connectors and 2oz copper PCB layers to provide stable power and improved overclocking potential. The board supports PCIe Gen5 M.2 storage, DDR5 memory overclocking with XMP/EXPO profiles, Wi‑Fi 7 wireless, Thunderbolt 4 Type‑C, Killer Ethernet networking, Nahimic audio and extensive RGB options. Multiple tool-less M.2 heatsinks and enlarged cooling elements simplify installation and help maintain SSD and system performance under load.

Advantages

The motherboard’s upgraded 20K 1000µF capacitors increase capacitance and longevity for steadier current and lower ripple, improving system stability under heavy loads. An 18+1+1+1+1 phase VRM with SPS (Smart Power Stage) and Hi‑Density power connectors supports high current demands and effective overclocking while minimizing temperatures. 2oz copper PCB layers enhance thermal and power efficiency. PCIe Gen5 Blazing M.2 and DDR5 XMP/EXPO support enable very high storage and memory performance. Wi‑Fi 7 with Multi‑link Operation, Killer E3100 2.5Gbps Ethernet and Killer networking technologies prioritize gaming traffic and reduce latency. Tool-less M.2 heatsinks, enlarged aluminum heatsinks and a Memory OC Shield reduce EMI and simplify DIY upgrades. Thunderbolt 4 Type‑C, front-panel USB 3.2 Gen2x2 Type‑C header and Ultra USB Power improve peripheral connectivity and stable power delivery. Nahimic audio and Polychrome RGB headers provide flexible audio and lighting configurations.

Key specifications

• VRM: 18+1+1+1+1 power phase design with SPS (Dr.MOS)
• Capacitors: Exclusive 20K black capacitor, 1000µF capacitance
• PCB: 2oz copper inner layers
• Storage: PCIe Gen5 Blazing M.2 (up to 128 GB/s theoretical bandwidth)
• Memory: DDR5 with XMP and AMD EXPO profile support
• Cooling: XXL tool-less M.2 heatsink, M.2 bottom heatsink, aluminum heatsinks
• Networking: Killer™ Ethernet E3100 2.5Gbps, Wi‑Fi 7 (802.11be) with MLO and new antenna design

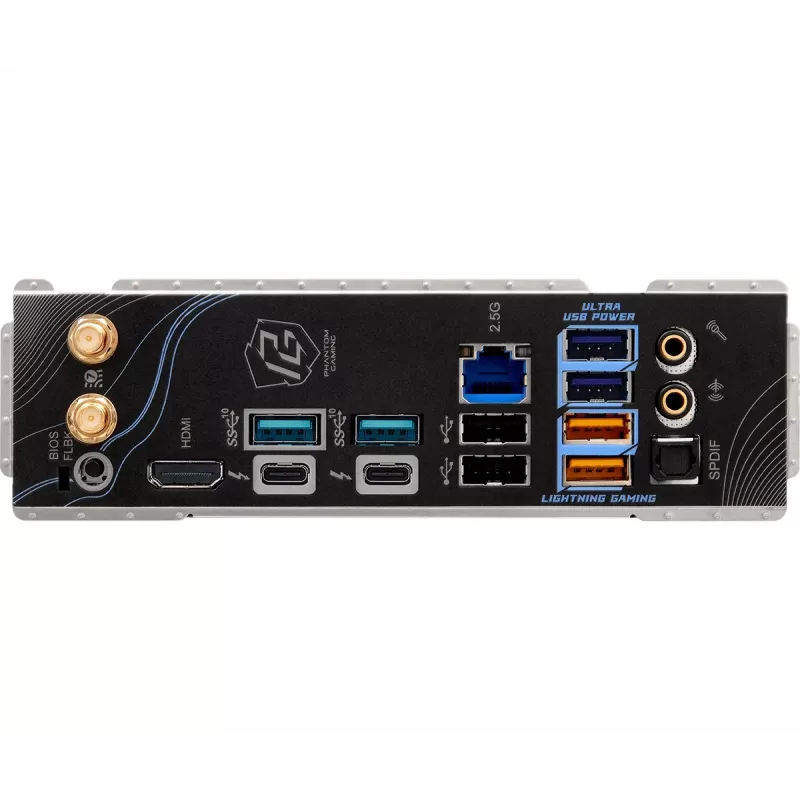

• Ports: Thunderbolt™ 4 Type‑C (up to 40 Gbps), Front-panel USB 3.2 Gen2x2 Type‑C (up to 20 Gbps)
• USB features: Lightning Gaming Ports, Ultra USB Power
• Audio: Nahimic audio engine with voice enhancement and Sound Tracker
• Extras: Memory OC Shield, ARGB splitter cable, thermistor header, flexible integrated I/O shield, BIOS Flashback, Auto Driver Installer

How to use

Install the motherboard into a compatible chassis following the manual, connect the Hi‑Density 8‑pin CPU and 24‑pin ATX power connectors, and mount DDR5 memory modules that support Intel XMP or AMD EXPO if overclocking is intended. Use the tool-less M.2 heatsink mechanisms to install NVMe SSDs quickly and ensure the M.2 bottom heatsink is in place for optimal thermal transfer. Configure BIOS settings or use pre‑tested XMP/EXPO profiles to enable memory overclocking; adjust VRM and fan controls as needed for stable temperatures. For networking, install the Wi‑Fi antennas and configure Killer networking software to prioritize traffic. Use Thunderbolt 4 and front-panel USB Type‑C for high‑speed peripherals. Update drivers with the Auto Driver Installer and, if needed, use BIOS Flashback to update firmware without CPU or memory installed.

Recommendations

For stable overclocking and long-term reliability, use high-quality DDR5 modules verified for XMP/EXPO, ensure adequate case airflow to support VRM and M.2 cooling, and connect power using the provided Hi‑Density connectors. Regularly update BIOS and network/audio drivers and configure Killer and Nahimic settings to match your usage (gaming, streaming, or content creation).
