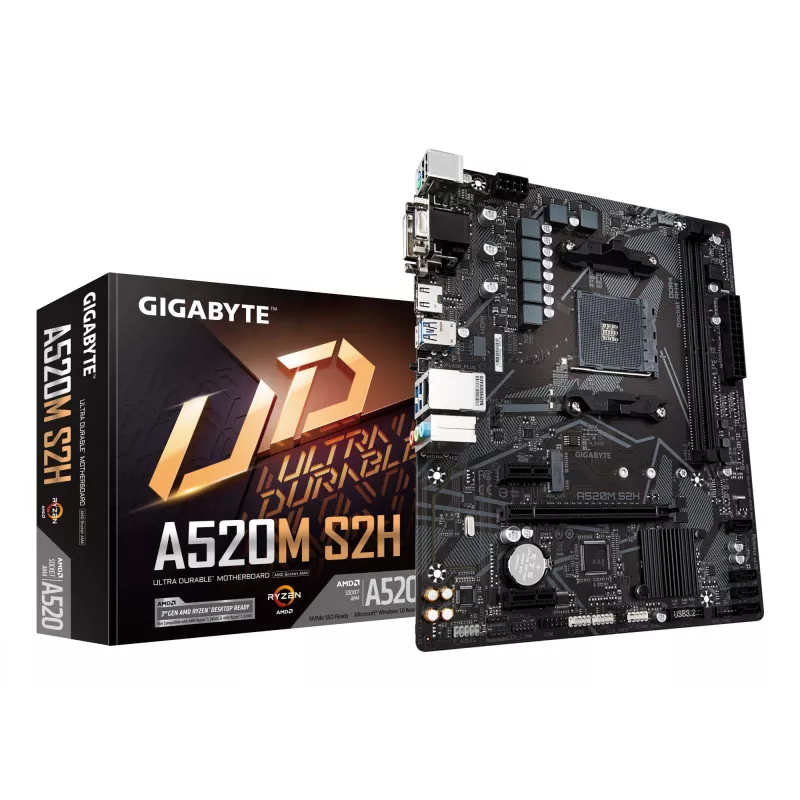

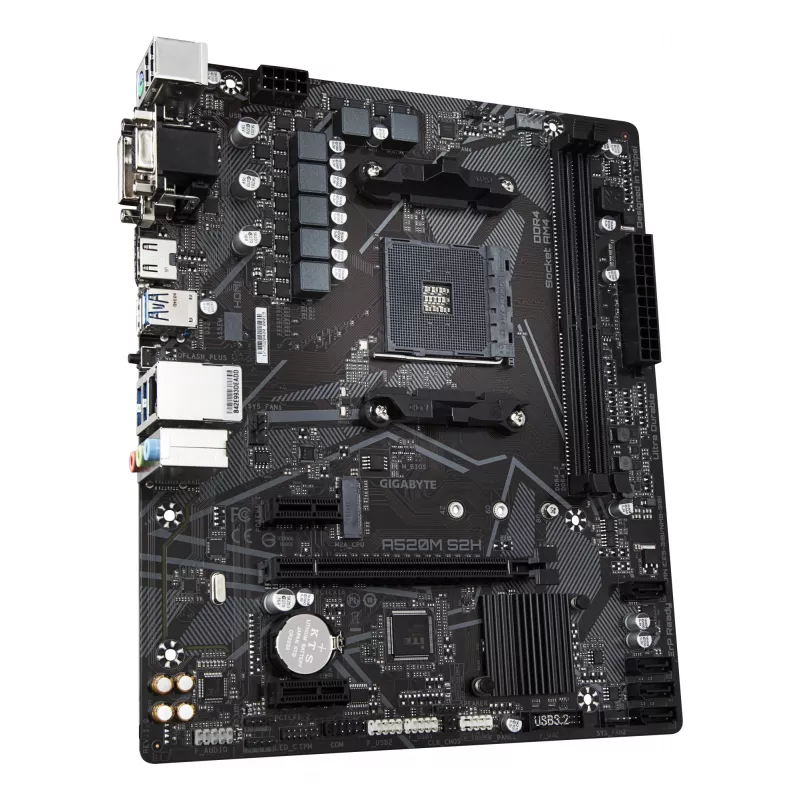

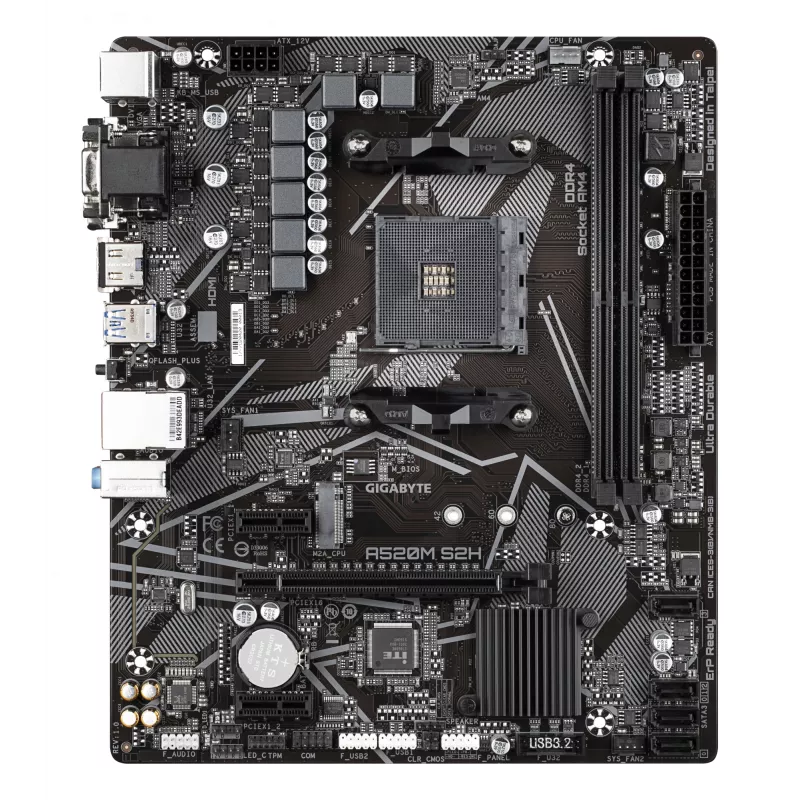

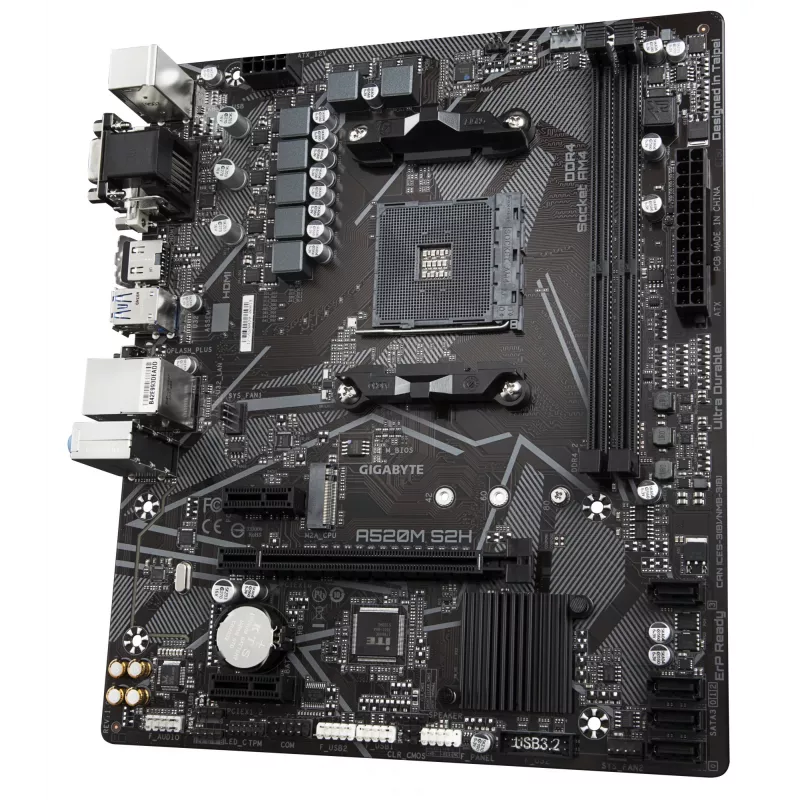

GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1

GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
36 mo.
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
R1,411
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your... Read More
Stock 30 Code 132204 Brand GIGABYTE Model A520M S2H Warranty 3 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Key Highlights
  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

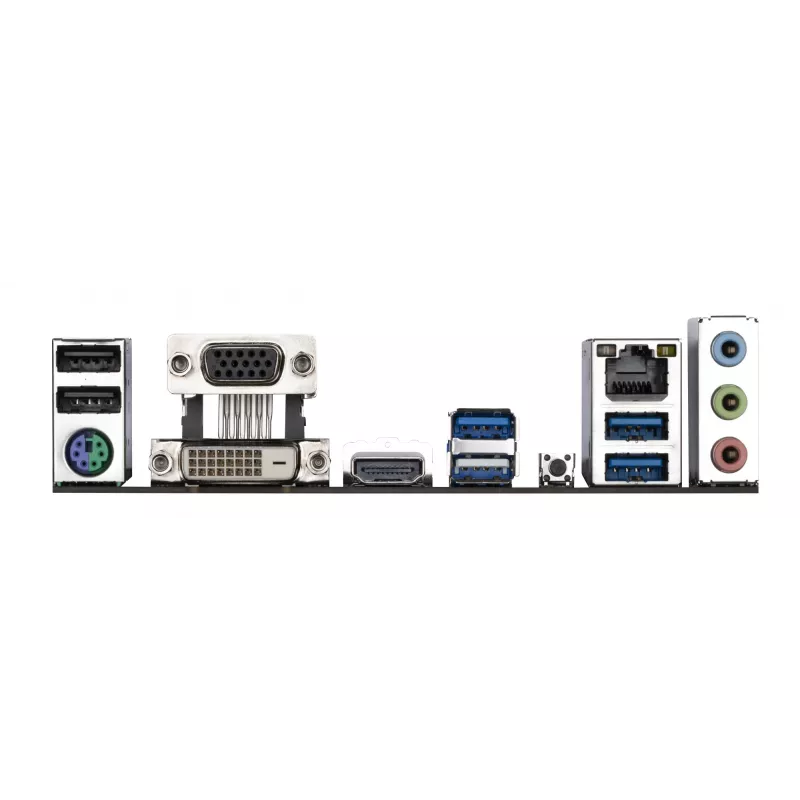

  • HDMI, DVI-D, D-sub Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
  • AMD Socket AM4 AMD Ryzen 3000 Series
  • PC micro ATX AMD A520 7.1 channels
  • DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
  • M.2, PCI Express 3.0, SATA RAID support
  • BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • Gigabit Ethernet
Specifications
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 3000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
205 mm
Desktop Management Interface (DMI) version
2.7
DVI-D ports quantity
1
ECC сompatibility
ECC & Non-ECC
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Harmonized System (HS) code
84733020
HDCP
Yes
HDMI ports quantity
1
Height
35 mm
Lithium weight per battery
0.07 g
Maximum internal memory
64 GB
Maximum internal memory supported by processor
64 GB
Maximum number of SMP processors
1
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD A520
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
mSATA ports quantity
0
Number of battery cells
1
Number of chassis fan connectors
2
Number of M.2 (M) slots
1
Number of memory slots
2
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
On-board graphics card
No
Package depth
235 mm
Package height
52 mm
Package weight
740 g
Package width
265 mm
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Power fan connector
Yes
Processor manufacturer
AMD
Processor socket
Socket AM4
Product colour
Black
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz
Supported memory types
DDR4-SDRAM
Supported processor sockets
Socket AM4
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA
System Management BIOS (SMBIOS) version
2.7
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
1
Warranty period
3 year(s)
Wi-Fi
No
Width
244 mm
