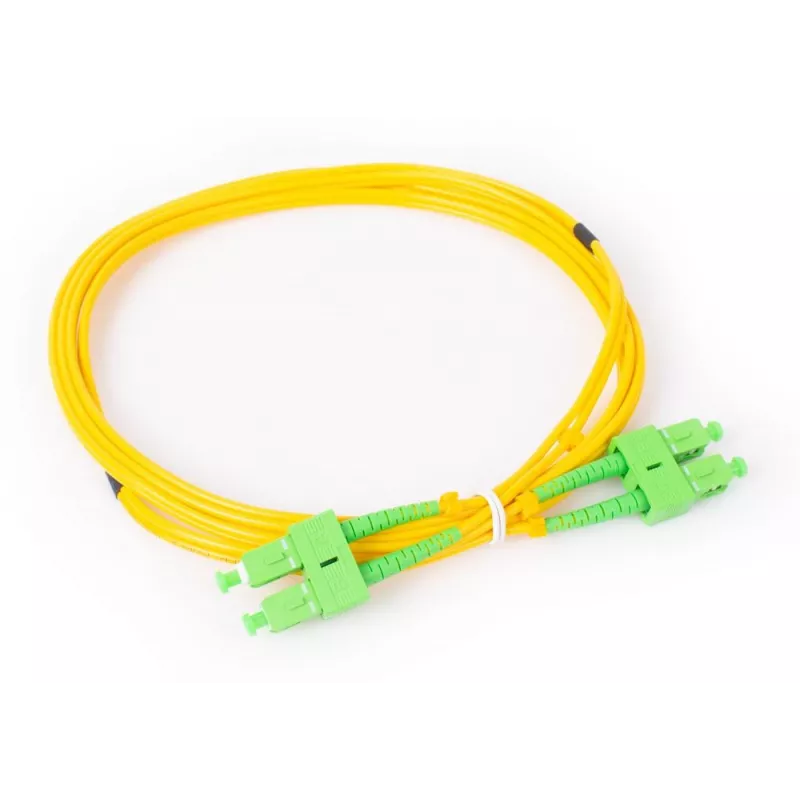

GETFORT GF-SASAD2 SC/APC to SC/APC Duplex Single-Mode Fiber Optic Patch Cable 2m

The GETFORT GF-SASAD2 is a high-performance single-mode fiber optic patch cable designed for reliable and low-loss connections in FTTx, data centers, telecommunications, LAN, and SAN environments. Featuring SC/APC connectors on both ends with a duplex configuration, this 2-meter cable ensures excellent signal integrity and minimal back reflection.

Advantages

This patch cord offers superior insertion loss (≤0.3 dB) and return loss (≥60 dB) thanks to the APC polish and precision manufacturing. The LSZH jacket provides safety in confined spaces, while the yellow color ensures easy identification for single-mode applications. With a durable construction rated for 500 mating cycles, it delivers long-term reliability.

Suitable for

• FTTx networks
• Data center interconnects
• Telecommunications infrastructure
• Local Area Networks (LAN)
• Storage Area Networks (SAN)

Key specifications

• Fiber Mode: Single-Mode (9/125 µm)
• Connector Type: SC/APC to SC/APC
• Cable Configuration: Duplex
• Length: 2 meters
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10D (Dynamic), 5D (Static)
• Durability: 500 mating cycles
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before mating. Avoid exceeding the minimum bend radius during installation. This cable is ideal for high-speed data transmission requiring low attenuation and high return loss.
