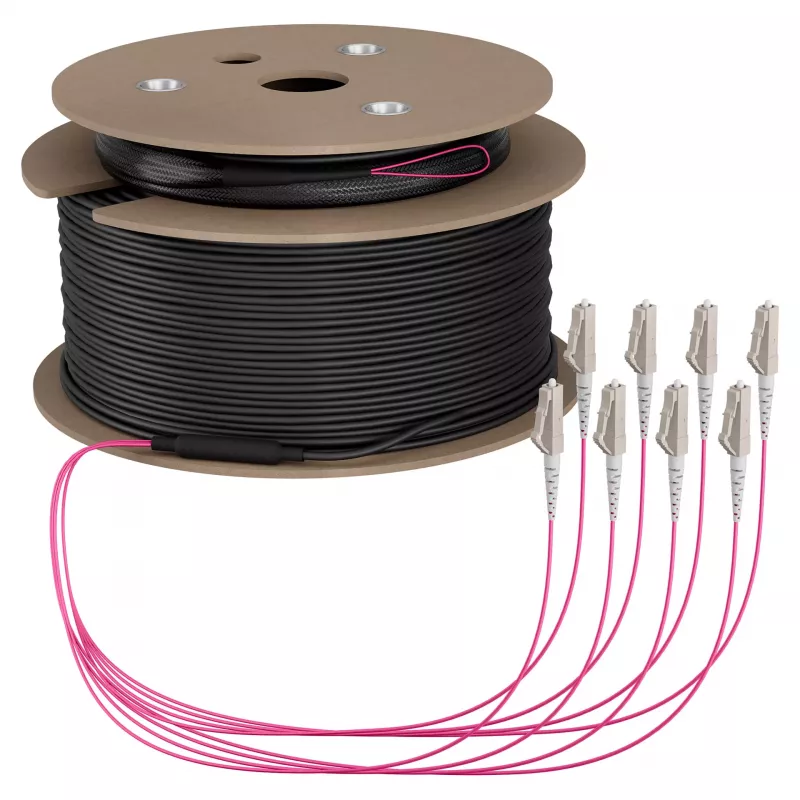

EFB Trunk Cable U-DQ ZN BH OM4 8G 1x8 LC-LC 60m Dca LSZH

The EFB Trunk Cable O8322S60OM4 is a high-performance fiber optic trunk cable designed for reliable data transmission in demanding network environments. With OM4 multimode fiber and LC-LC connectors, this 60-meter cable supports high-speed applications up to 100 Gbps, making it ideal for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This trunk cable offers exceptional bandwidth and low attenuation, ensuring efficient signal transmission over long distances. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire, while the Dca CPR rating ensures compliance with European fire safety standards. The robust U-DQ ZN BH construction provides durability and protection against environmental factors.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• Telecommunications and IT installations
• High-speed data transmission (up to 100 Gbps)

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: Multimode OM4
• Number of Fibers: 8 (1x8 configuration)
• Connector Type A: LC
• Connector Type B: LC
• Cable Length: 60 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• CPR Fire Rating: Dca
• Core/Cladding Diameter: 50/125 µm
• Supported Wavelengths: 850 nm, 1300 nm
• Maximum Data Rate: 100 Gbps
• Attenuation @ 850nm: ≤ 2.3 dB/km
• Attenuation @ 1300nm: ≤ 0.6 dB/km
• Bandwidth @ 850nm (EMB): ≥ 4700 MHz*km
• Bandwidth @ 1300nm: ≥ 500 MHz*km
• Cable Construction: U-DQ ZN BH (Central Tube, Non-metallic Strength Members)
• Outer Jacket Color: Aqua
• Application Environment: Universal (Indoor/Outdoor)
• Standards Compliance: ISO/IEC 11801, EN 50173, IEC 60794-2

Recommendations

This trunk cable is recommended for professionals seeking a reliable, high-performance solution for structured cabling. Ensure compatibility with your network equipment's connector type and fiber specifications. For optimal performance, use with OM4-rated transceivers and patch panels.
