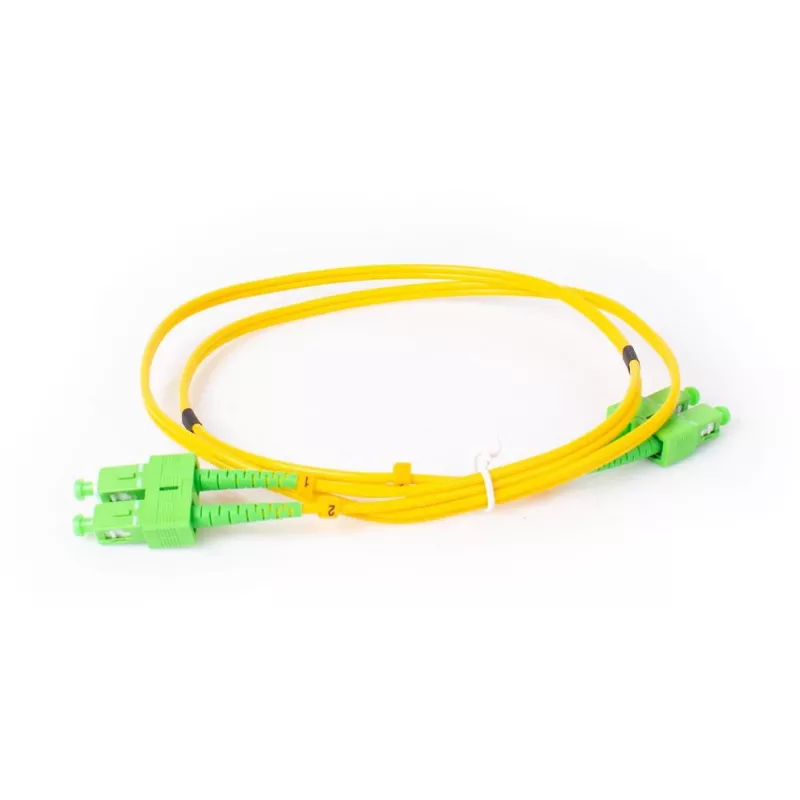

GETFORT GF-SASAD1 Fiber Optic Patch Cord SM SC/APC-SC/APC Duplex 1m

The GETFORT GF-SASAD1 is a high-quality single-mode fiber optic patch cord designed for reliable and low-loss connections in telecommunications, data centers, and FTTx applications. This duplex cable features SC/APC connectors on both ends, ensuring excellent return loss performance. With a length of 1 meter and a yellow LSZH jacket, it is ideal for indoor installations where safety and performance are critical.

Advantages

This patch cord offers low insertion loss (≤0.3 dB) and high return loss (≥60 dB), ensuring minimal signal degradation. The APC polish reduces back reflection, making it suitable for high-bandwidth applications. The LSZH jacket provides enhanced safety in case of fire, emitting low smoke and no halogen.

Suitable for

• FTTx networks
• Data centers
• Telecommunications infrastructure
• Local area networks (LAN)

Key specifications

• Fiber mode: Single-Mode (9/125 µm)

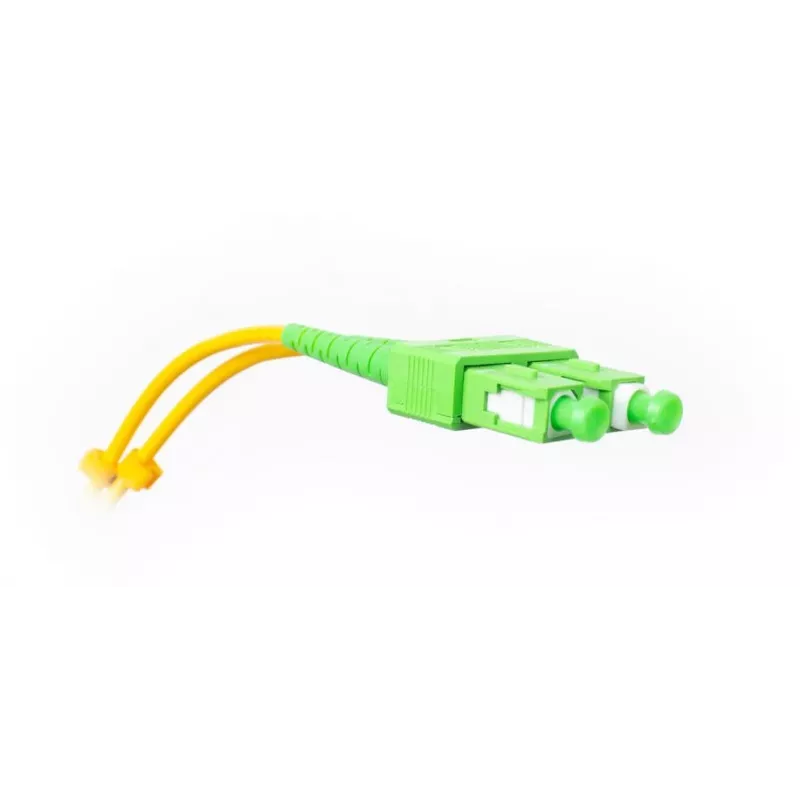

• Connectors: SC/APC to SC/APC, Duplex
• Length: 1 meter
• Jacket: LSZH, Yellow, 3.0 mm diameter
• Insertion loss: ≤0.3 dB
• Return loss: ≥60 dB
• Operating temperature: -20°C to +70°C
• Standards: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. Avoid exceeding the minimum bend radius of 10D (30 mm). This patch cord is compatible with standard SC/APC ports.
