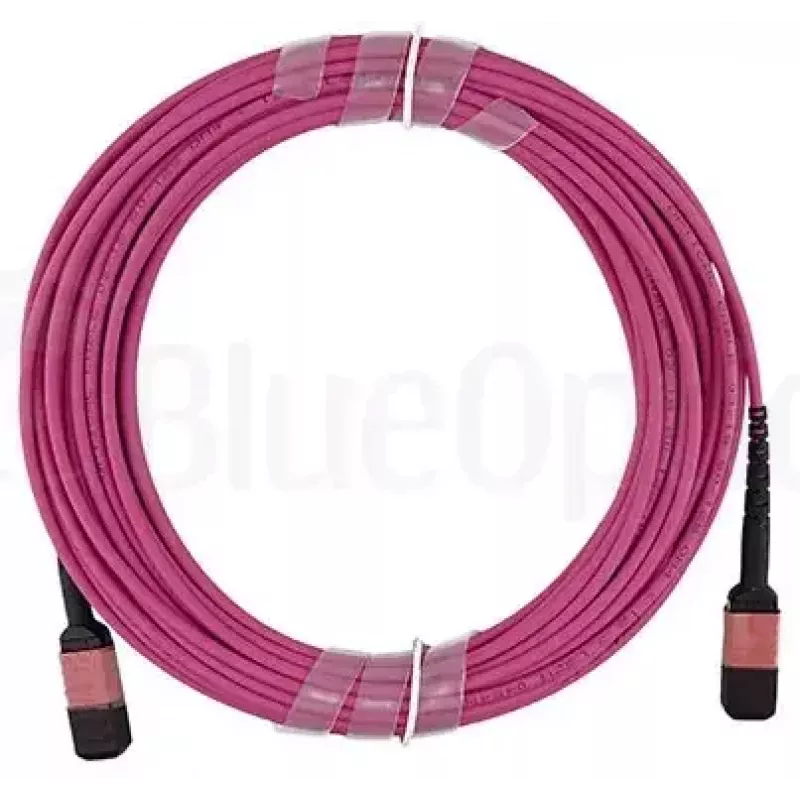

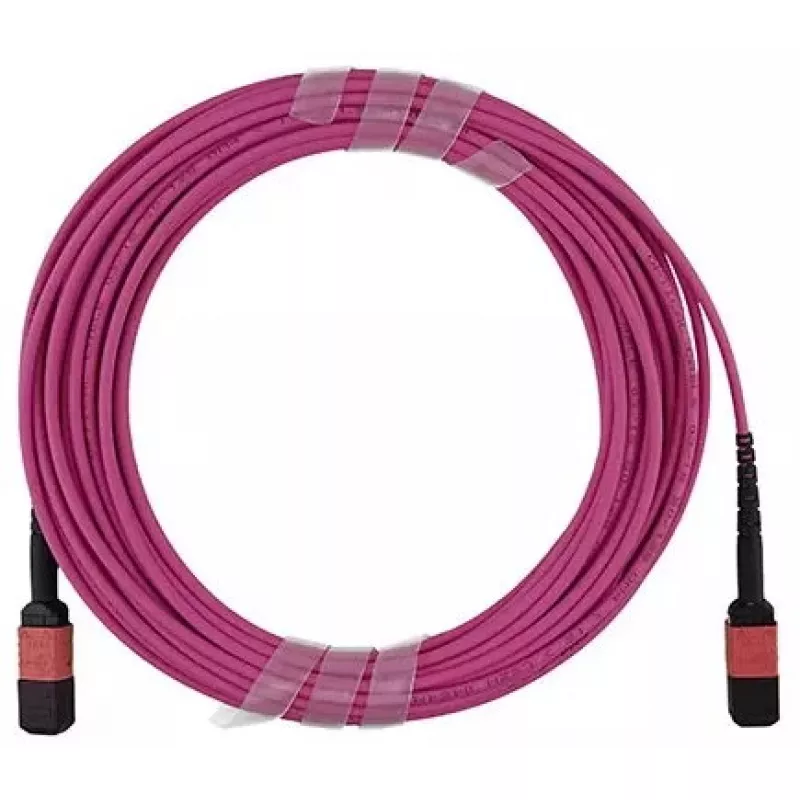

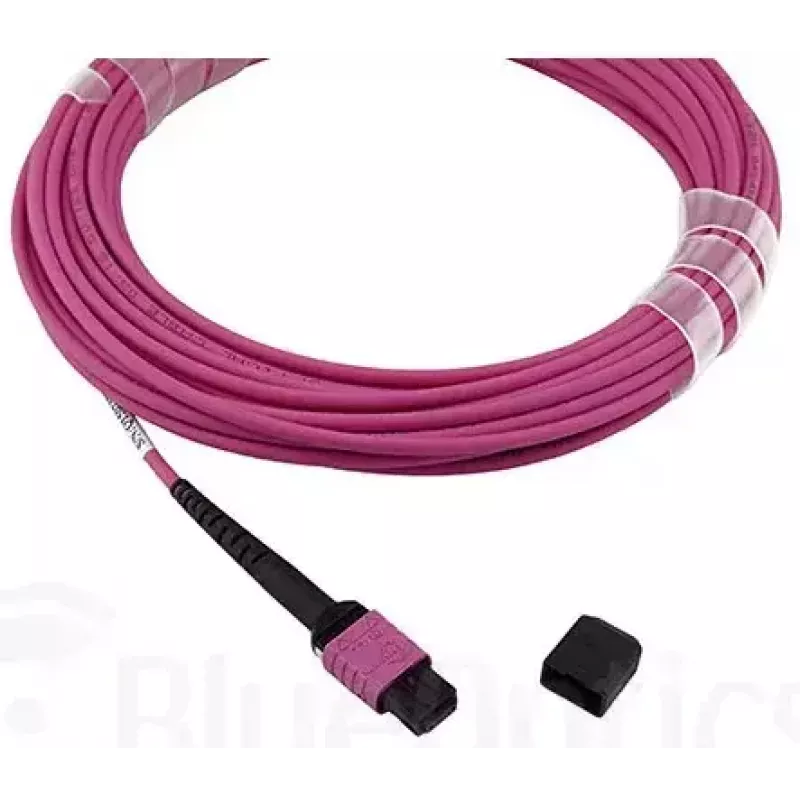

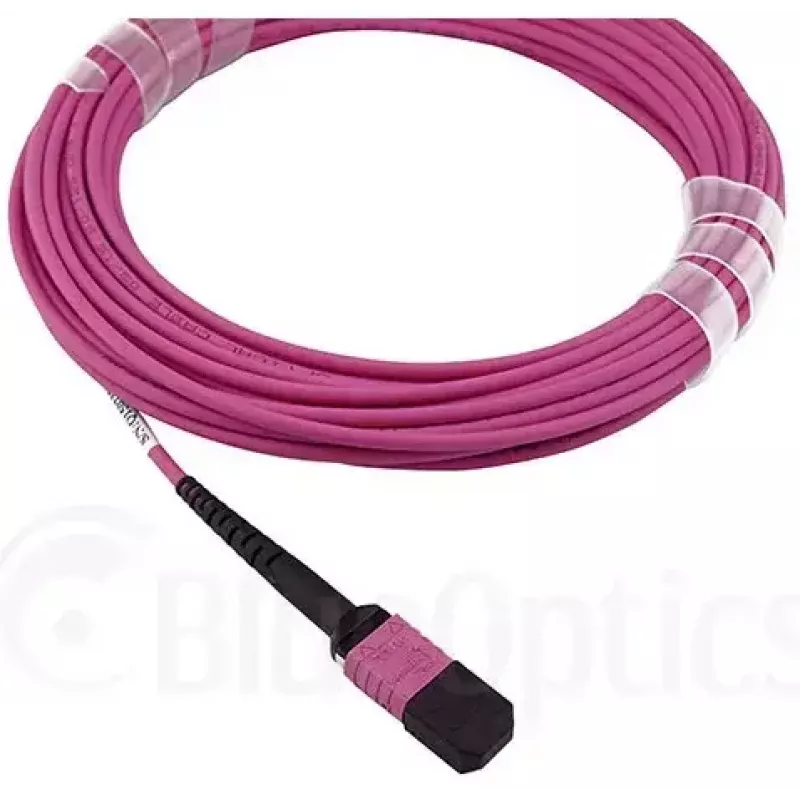

Fibre optic cable BlueOptics CBX-STC012BPF-MXXN-MXXN-003M-BO MTP OM4 3 m Pink

The BlueOptics CBX-STC012BPF-MXXN-MXXN-003M-BO MTP OM4 3 m Pink is a 3-meter multimode fiber optic trunk cable with MTP/UPC connectors on both ends. Built with OM4 laser-optimized 50/125 µm fiber and 12 cores in Type B configuration, this cable supports full-duplex, high-bandwidth links used in data centers and high-performance computing environments. The cable features a low-loss design, ceramic ferrules and an LSZH (low smoke zero halogen) outer jacket for reduced smoke and no halogen release in case of fire.

Advantages

This MTP–MTP OM4 cable offers low attenuation per kilometer and high return loss for reliable signal integrity across short to medium runs. The use of high-quality multimode fiber and ceramic ferrules ensures consistent optical performance and a long connector lifetime. The LSZH sheath improves safety in enclosed installations and the 12-core Type B wiring supports common parallel optics transceiver layouts. Each cable is tested with interferometer and OTDR and supplied with a measurement protocol for insertion loss and return loss.

Suitable for

Key specifications

How to use

Route the cable between compatible MTP ports on patch panels or transceivers, ensuring correct Type B polarity orientation for parallel optics links. Avoid tight bends and protect the cable from sharp edges or compression; follow minimum bend radius recommendations printed on the cable jacket. Insert connectors straight into the mating adapters until they click, and secure any cable management hardware to avoid strain on the connectors. Use the supplied measurement protocol to verify insertion loss and return loss after installation.

Recommendations

Store and install the cable in clean environments to prevent contamination of the ceramic ferrules; clean connectors with appropriate fiber cleaning tools before mating. For high-density installations, label both ends to simplify maintenance and ensure polarity is preserved during rearrangements.
