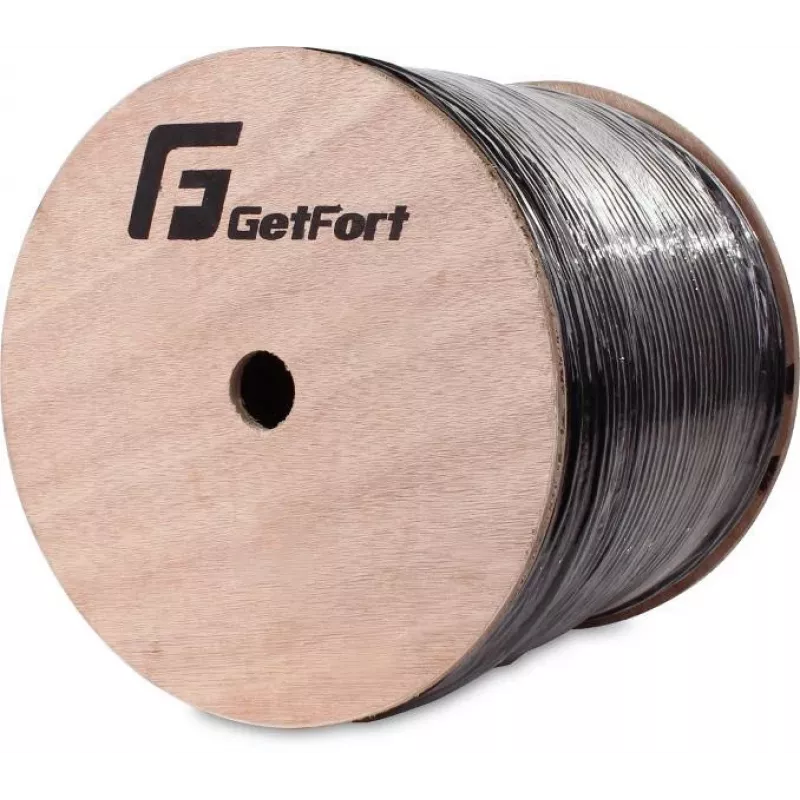

GETFORT GF-DAC-12J Outdoor Armored Fiber Optic Cable, 12 Fibers, Single-mode OS2 G.652D, 1m, Direct Burial, Black

Outdoor armored fiber optic cable for direct burial, engineered to deliver reliable high-speed data transmission in harsh environments. With 12 single-mode fibers (OS2, ITU-T G.652D) and a rugged design featuring corrugated steel tape armor and a UV-resistant PE jacket, this 1-meter cable is built for long-term outdoor use. The gel-filled loose tube construction provides excellent water blocking, while the armor offers superior rodent protection and crush resistance. Ideal for telecom, FTTH, and industrial networks, this cable ensures low attenuation and stable performance across a wide temperature range.

Advantages

Engineered for durability, this cable withstands installation tensile loads over 1500 N and crush forces exceeding 1000 N/10cm. Its single-mode fibers offer low attenuation (≤0.35 dB/km at 1310nm, ≤0.20 dB/km at 1550nm), enabling long-distance, high-bandwidth links. The black PE jacket resists UV radiation and weathering, while the steel armor prevents damage from rodents and accidental impact. Gel-filled tubes block moisture ingress, ensuring reliable operation even in wet or humid underground conditions.

Suitable for

• Direct burial outdoor installations
• Telecom backbone and FTTH networks
• Industrial and campus environments
• Long-distance single-mode links
• Areas with rodent or mechanical hazards

Key specifications

• Cable type: Fiber optic, single-mode (OS2)
• Fiber count: 12
• ITU-T standard: G.652D
• Core/cladding diameter: 9/125 µm
• Construction: Loose tube, armored
• Armoring: Corrugated steel tape
• Outer jacket: UV-resistant PE, black
• Length: 1 meter
• Water blocking: Gel-filled
• Rodent protection: Yes
• Tensile strength (installation): >1500 N
• Crush resistance: >1000 N/10cm
• Operating temperature: -40°C to +70°C
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.20 dB/km
• Minimum bend radius (installation): 20 x cable diameter
• Minimum bend radius (long term): 10 x cable diameter

Recommendations

For reliable outdoor fiber optic connectivity in demanding conditions, the GETFORT GF-DAC-12J armored cable is an excellent choice. Its robust construction and low attenuation make it ideal for direct burial and long-distance links. Ensure proper installation practices to maximize performance and longevity.
