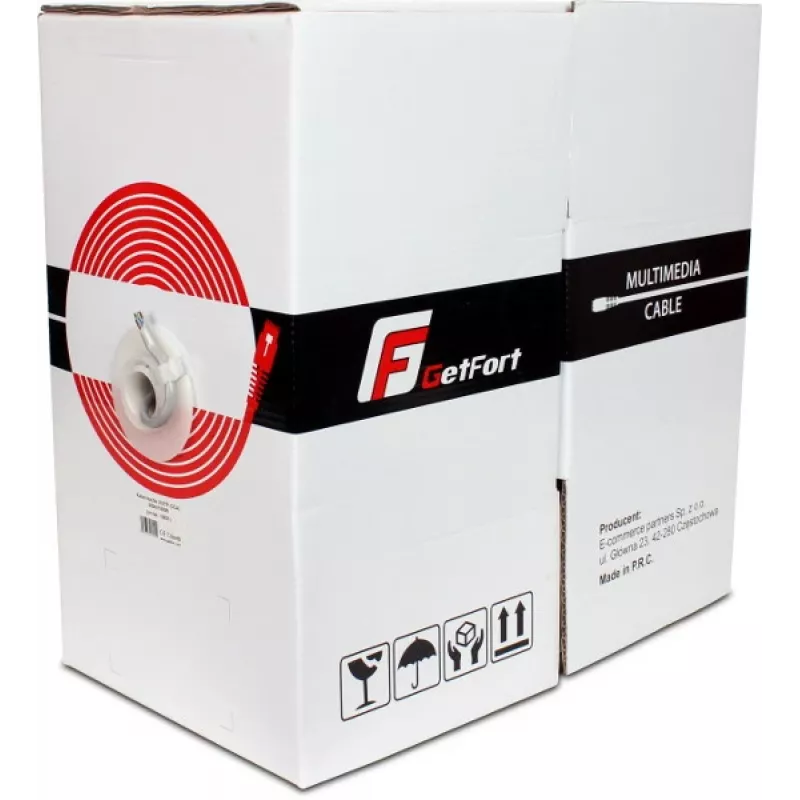

GETFORT Cat.5e U/UTP LSOH Dca Network Cable 305m (1000ft) - Reel-in-Box

The GETFORT GF-5UTP-E-LSOH-305 is a high-performance Cat.5e U/UTP network cable designed for reliable Gigabit Ethernet connections in indoor environments. With a length of 305 meters (1000 feet) on a convenient reel-in-box, this cable is ideal for structured cabling installations. It features solid bare copper conductors (24 AWG) and a Low Smoke Zero Halogen (LSOH) jacket, ensuring safety and performance. The cable meets Euroclass Dca fire rating and complies with TIA/EIA-568-C.2, ISO/IEC 11801, and EN 50173 standards.

Advantages

This cable offers excellent signal integrity for data transmission up to 1000 Mbps with a bandwidth of 100 MHz. The LSOH jacket reduces toxic smoke and halogen emissions in case of fire, making it suitable for public and commercial buildings. The U/UTP construction minimizes crosstalk and interference, while the solid copper conductors provide superior conductivity and durability.

Suitable for

• Structured cabling in offices, schools, hospitals, and data centers
• Indoor network installations requiring LSOH safety compliance
• Gigabit Ethernet (1000BASE-T) and 100BASE-TX networks
• Patch panel to outlet connections and backbone cabling

Key specifications

• Category: Cat.5e
• Shielding: U/UTP (Unshielded Twisted Pair)
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Fire Rating: Euroclass Dca
• Length: 305 m (1000 ft)
• Conductor: Solid Bare Copper, 24 AWG
• Number of Pairs: 4
• Impedance: 100 Ohm
• Max Data Rate: 1000 Mbps
• Bandwidth: 100 MHz
• Packaging: Reel-in-Box
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, use with Cat.5e or higher rated connectors and patch panels. Ensure proper cable management to avoid kinking or sharp bends. This cable is not suitable for outdoor or direct burial applications.
